Interior Light: Notes

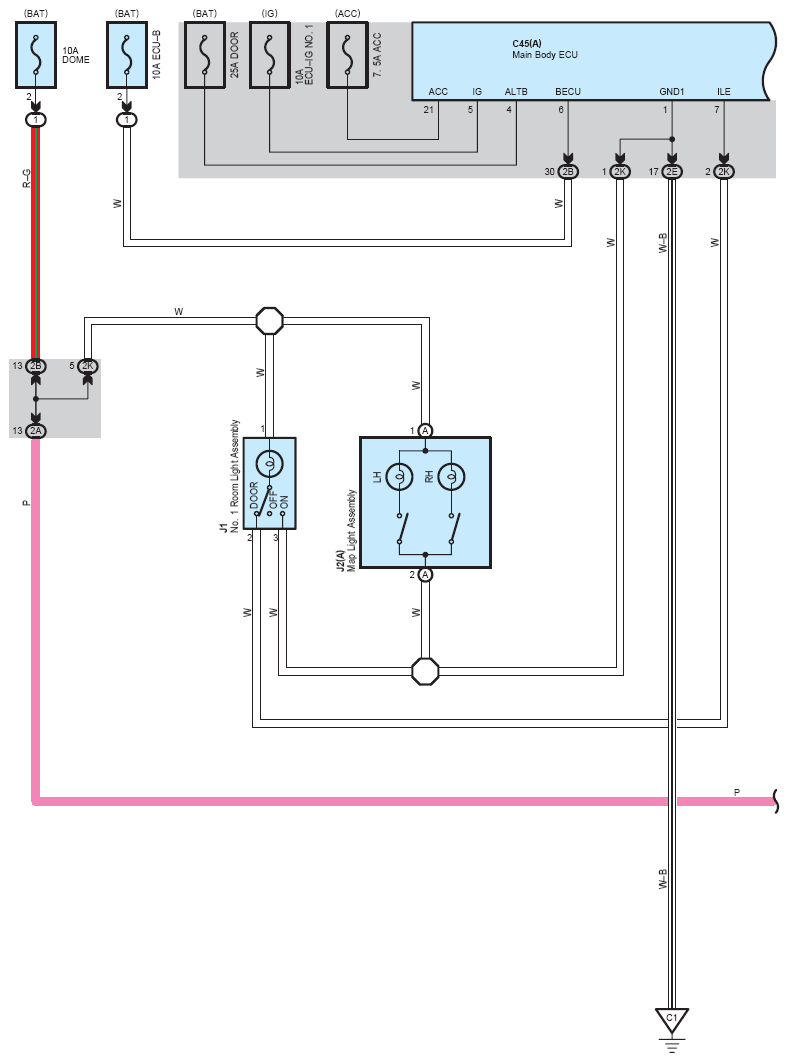

Fig 1: Interior Light Wiring Diagram (1 Of 3)
G08760740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

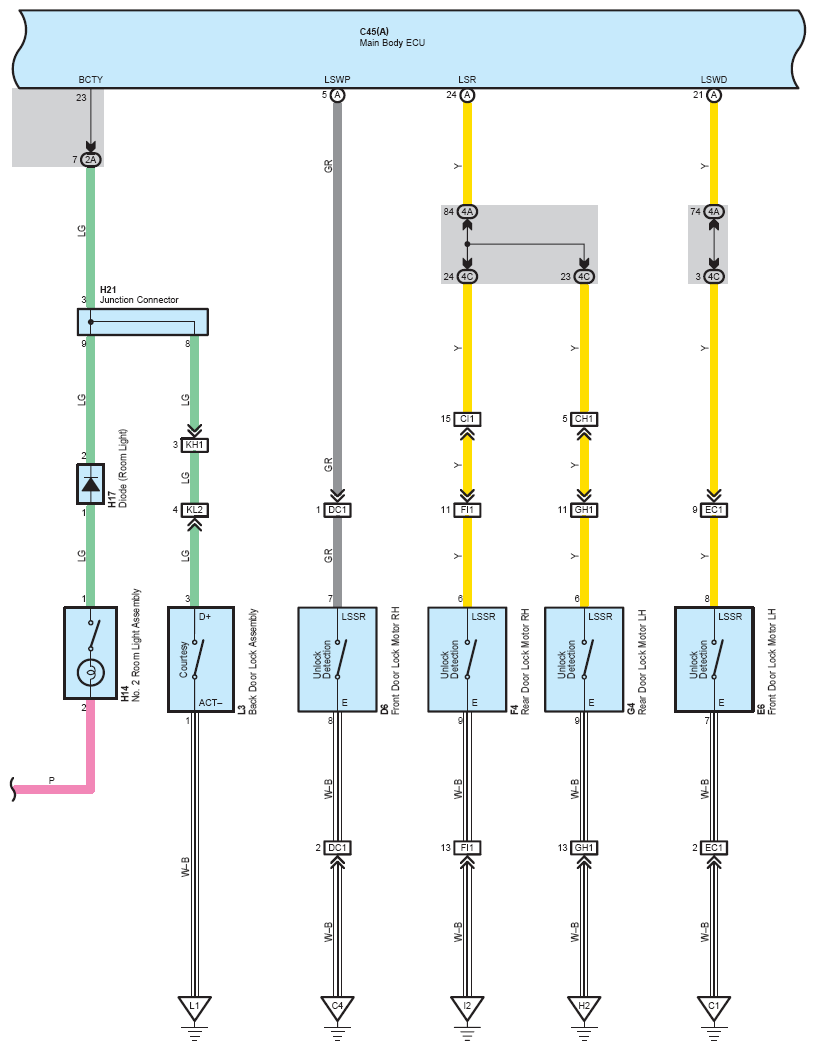

Fig 2: Interior Light Wiring Diagram (2 Of 3)
G08760741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

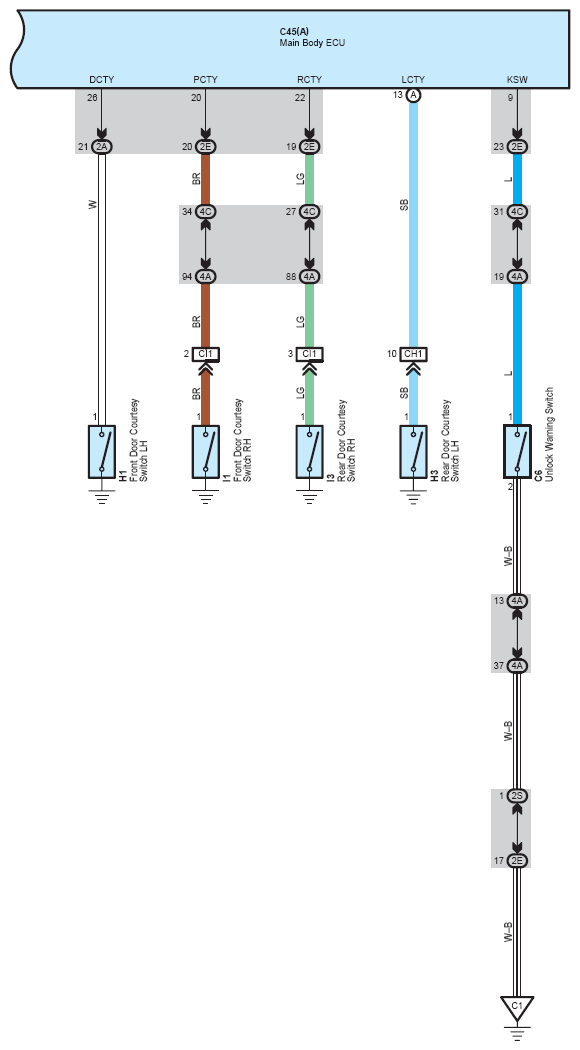

Fig 3: Interior Light Wiring Diagram (3 Of 3)
G08760742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
