Home >> Scion >> 2012 >> xB Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Starting >> Notes

OEM System Circuits: Starting: Notes

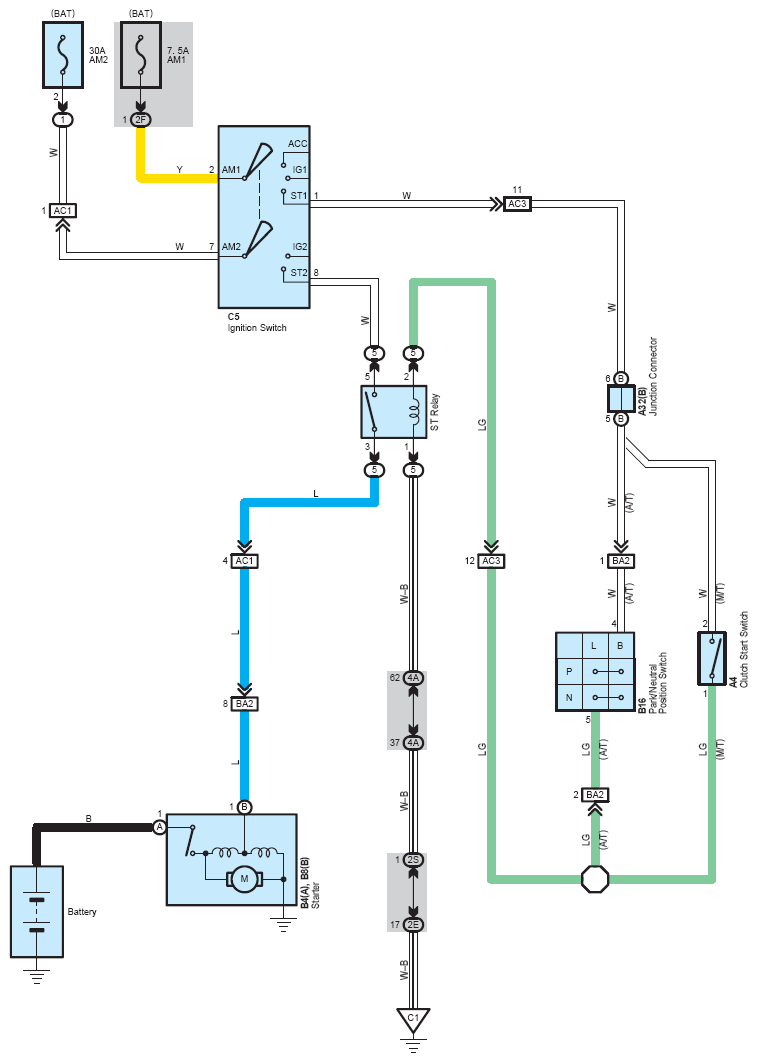

Fig 1: Starting System Wiring Diagram

G08760706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
