Ignition Switch: Components: Illustration

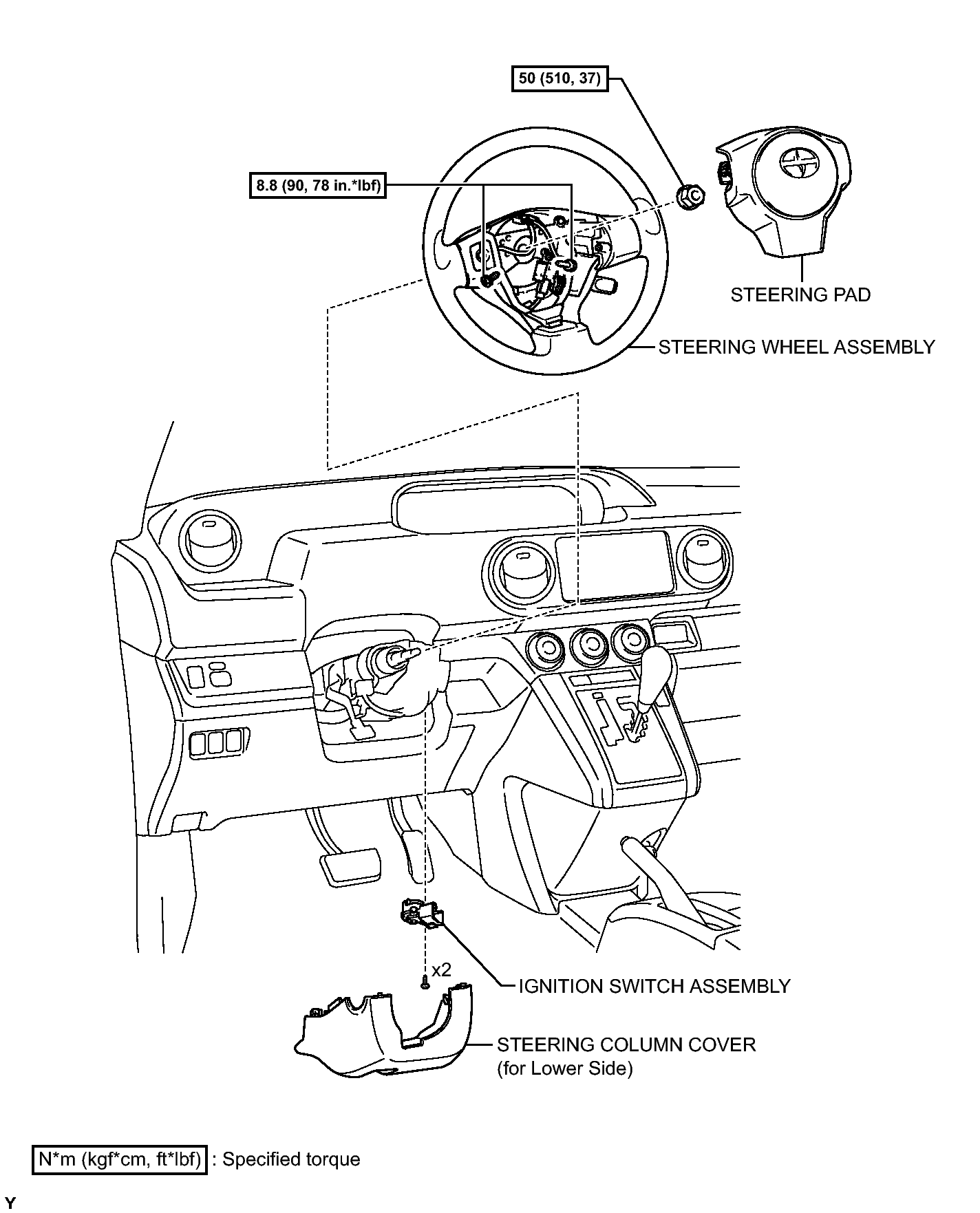

Fig 1: Identifying Ignition Switch Replacement Components With Torque Specifications

GTY161042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
