Speed Sensor: Components: Illustration

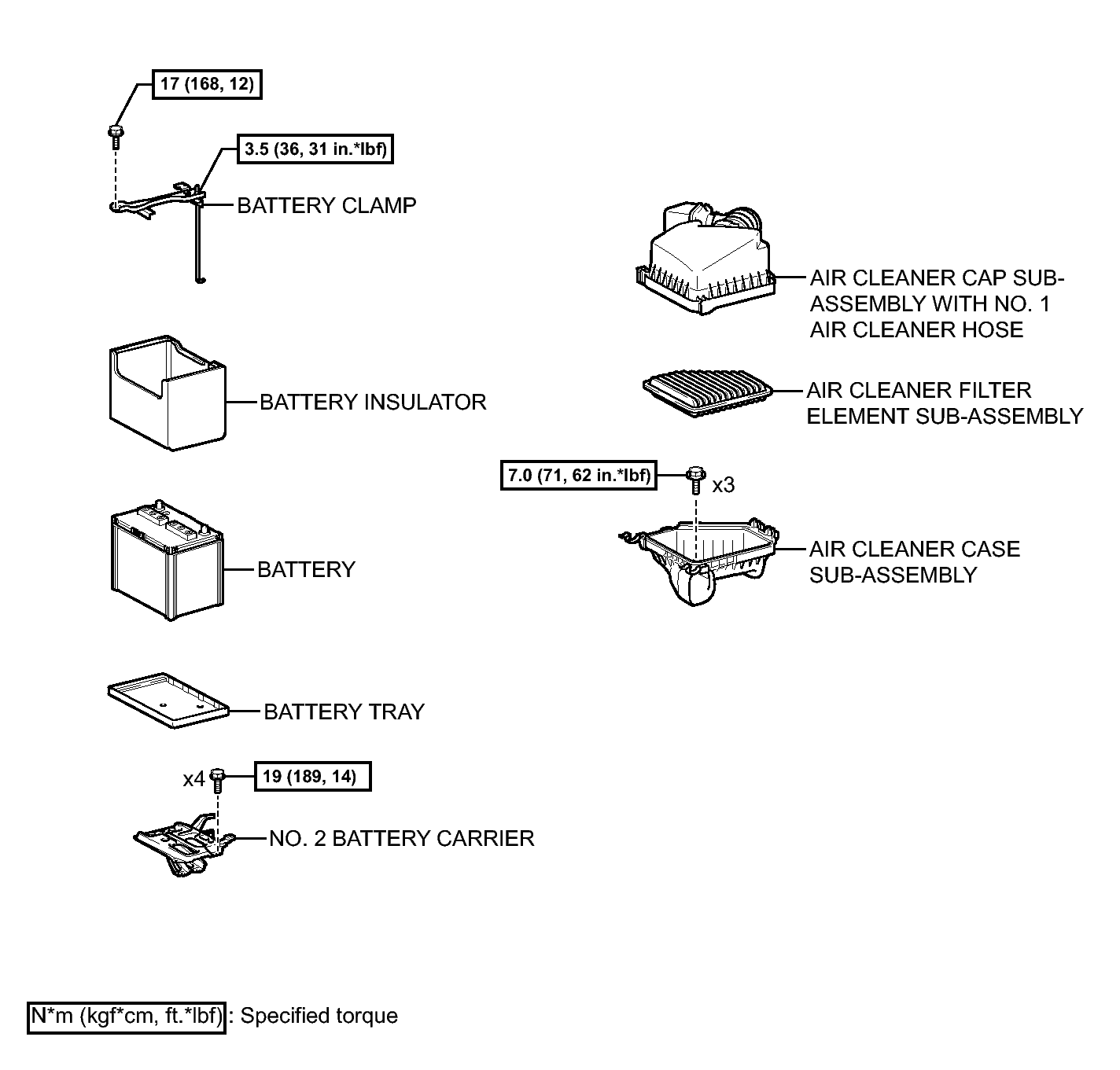

Fig 1: Identifying Speed Sensor Replacement Components And Torque Specifications (1 Of 2)
GTY313610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

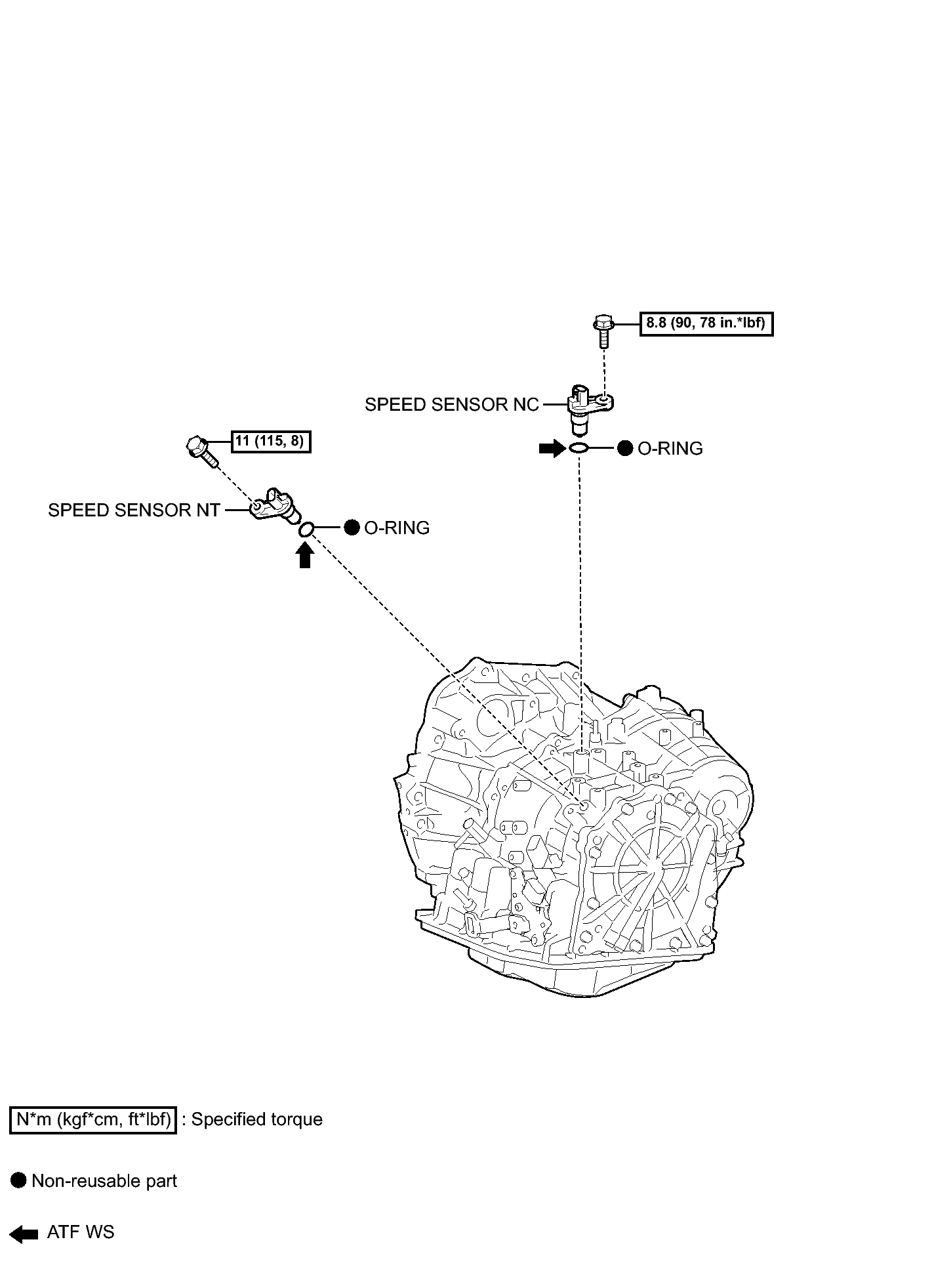

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications (2 of 2)
GTY313782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
