Transmission Control Cable Assembly: Removal: Removal

REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL . Refer to REMOVAL - Step 18
REMOVE FRONT NO. 2 CONSOLE BOX INSERT . Refer to REMOVAL - Step 19
REMOVE FRONT NO. 1 CONSOLE BOX INSERT . Refer to REMOVAL - Step 20
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL - Step 22
REMOVE BATTERY . Refer to REMOVAL - Step 6
REMOVE NO. 2 BATTERY CARRIER See step 24
REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH NO. 1 AIR CLEANER HOSE . Refer to REMOVAL - Step 3
REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY See step 26
REMOVE AIR CLEANER CASE SUB-ASSEMBLY See step 27
REMOVE CENTER EXHAUST PIPE ASSEMBLY
1. Remove the 2 bolts and gasket and separate the center exhaust pipe assembly from the front exhaust pipe assembly.

  Fig 1: Location of Bolts And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts, 2 compression springs and separate the center exhaust pipe assembly from the No. 2 center exhaust pipe assembly.

  Fig 2: Identifying Center Exhaust Pipe Assembly Bolts And Compression Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 exhaust pipe supports, then remove the center exhaust pipe assembly.

  Fig 3: Location of Exhaust Pipe Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
1. Remove the 3 nuts and remove the front No. 1 floor heat insulator.

  Fig 4: Location of Nuts And Front No. 1 Floor Heat Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Disconnect the 2 connectors.

  Fig 5: Location of Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

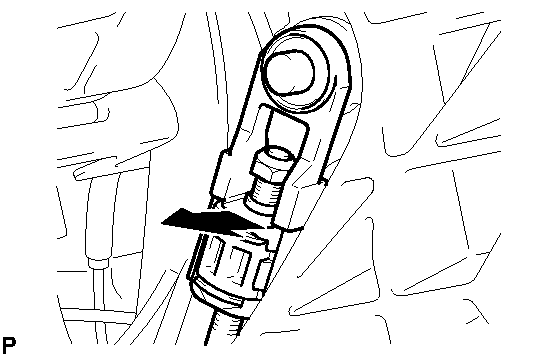

2. Disconnect the transmission control cable assembly from the shift lever.

  Fig 6: Identifying Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

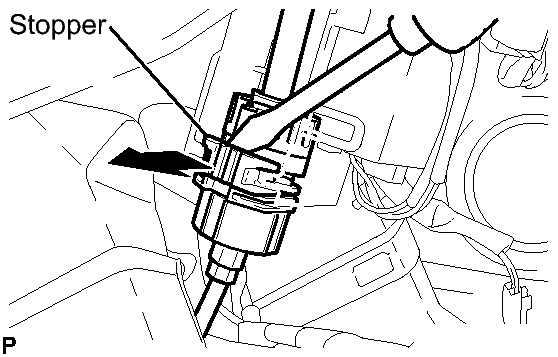

3. Using a screwdriver, pull out the stopper of the transmission control cable.

  Fig 7: Identifying Transmission Control Cable Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not remove the stopper. If the stopper is removed, reinstall it to its original position.

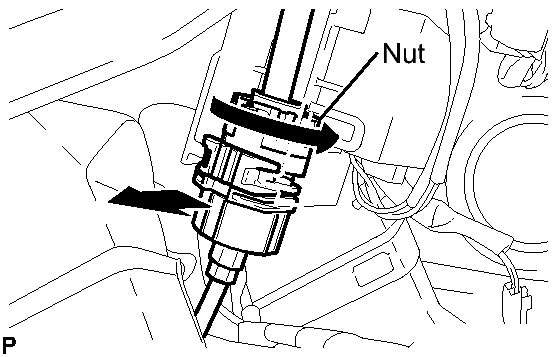

4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.

  Fig 8: Rotating Nut Counterclockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not over-rotate the nut as it will come off the interior spring and the transmission control cable will not be reusable.
5. Remove the bolt and disconnect the transmission control cable assembly from the rear engine mounting insulator.

  Fig 9: Location of Bolt And Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Disconnect the transmission control cable assembly from the cable support clamp.

  Fig 10: Location of Cable Support Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.

  Fig 11: Location of Transmission Control Cable Assembly Nut And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the clip and disconnect the transmission control cable assembly from the transmission control cable bracket.
9. Remove the 2 nuts and remove the transmission control cable assembly.

  Fig 12: Location of Nuts And Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
