Crankshaft Position Sensor: Inspection: Inspection
- INSPECT CRANKSHAFT POSITION SENSOR

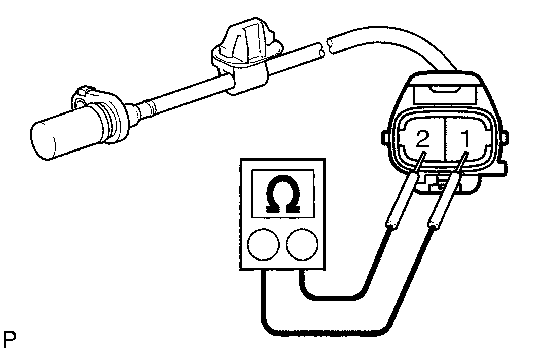

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Cold 985 to 1600 Ω Hot 1265 to 1890 Ω HINT:
In the table above, the terms "Cold" and "Hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).
If the result is not as specified, replace the crankshaft position sensor.
- Measure the resistance according to the value(s) in the table below.
