Steering Angle Sensor: Components: Illustration

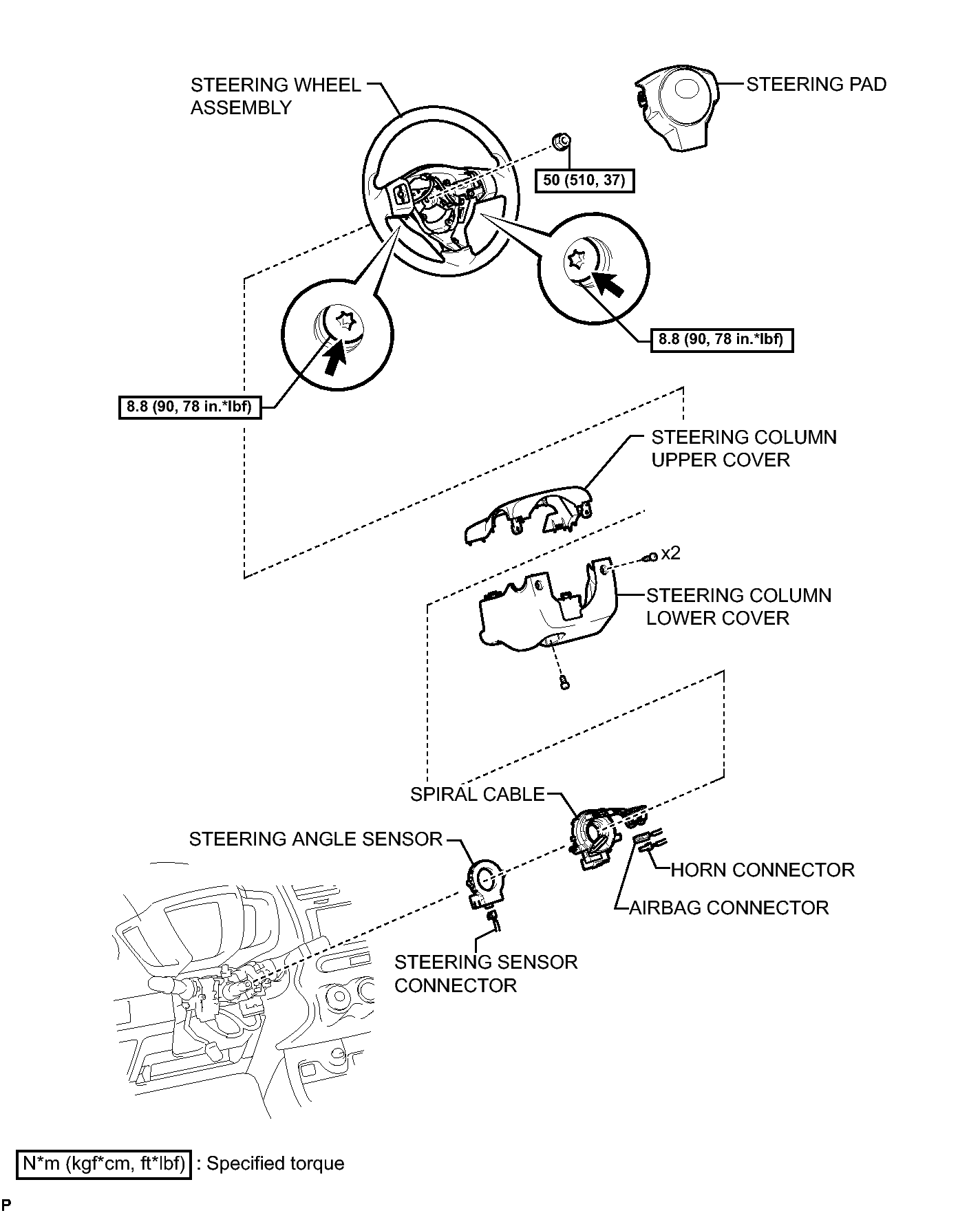

Fig 1: Identifying Spiral Cable Replacement Components With Torque Specifications

GTY164971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
