Cooling Fan: Notes

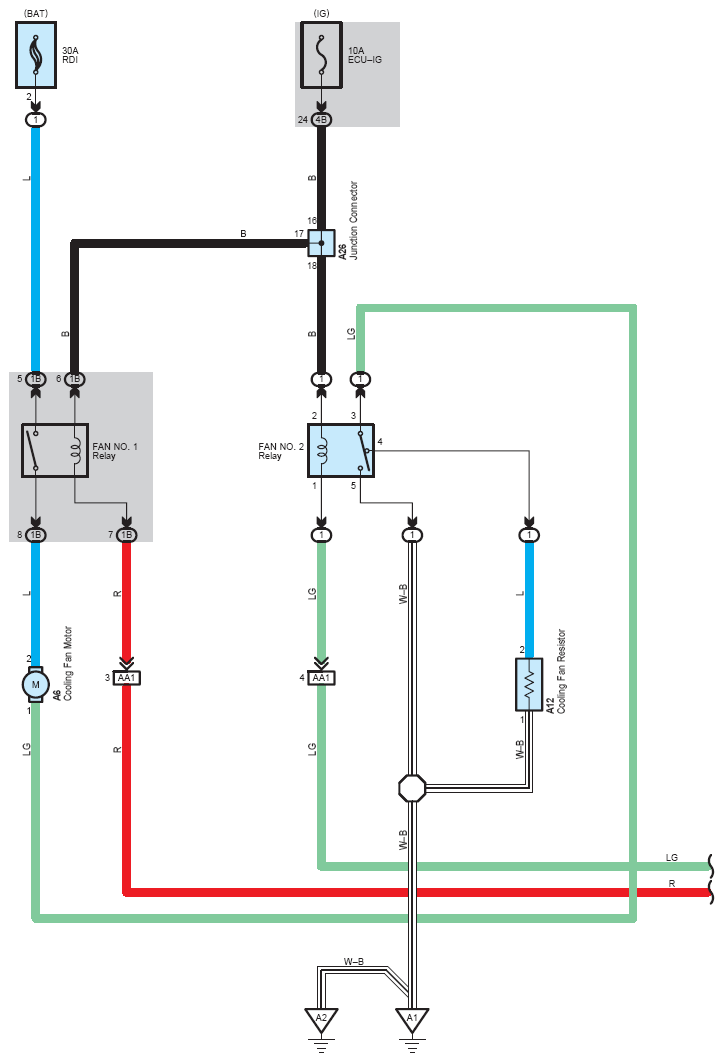

Fig 1: Cooling Fan System Wiring Diagram (1 Of 2)
G08761247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

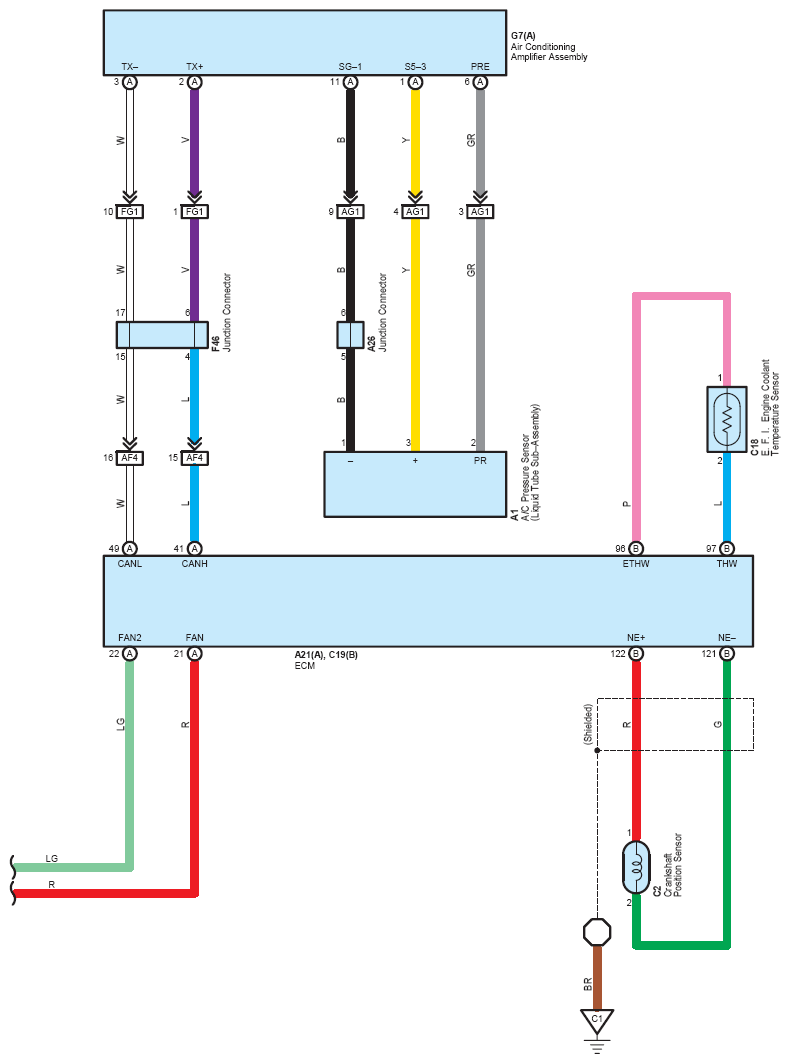

Fig 2: Cooling Fan System Wiring Diagram (2 Of 2)
G08761248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
