Key Reminder and Light Reminder: Notes

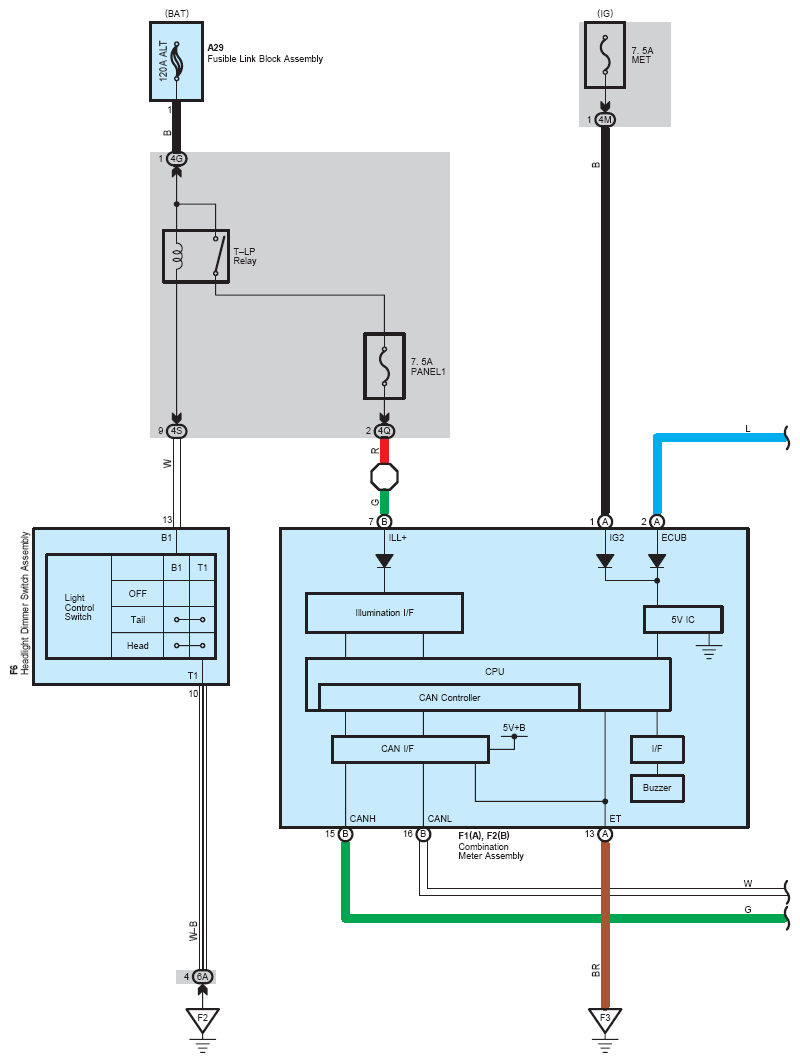

Fig 1: Key Reminder And Light Reminder System Wiring Diagram (1 Of 2)
G08761187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

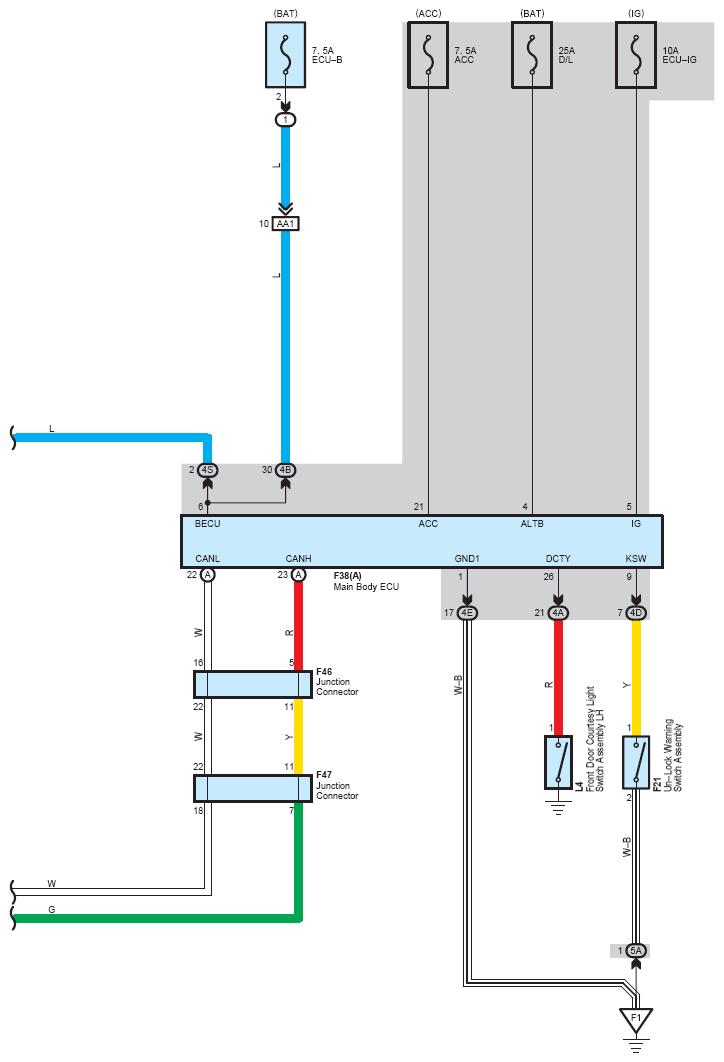

Fig 2: Key Reminder And Light Reminder System Wiring Diagram (2 Of 2)
G08761188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
