Seat Belt Warning: Notes

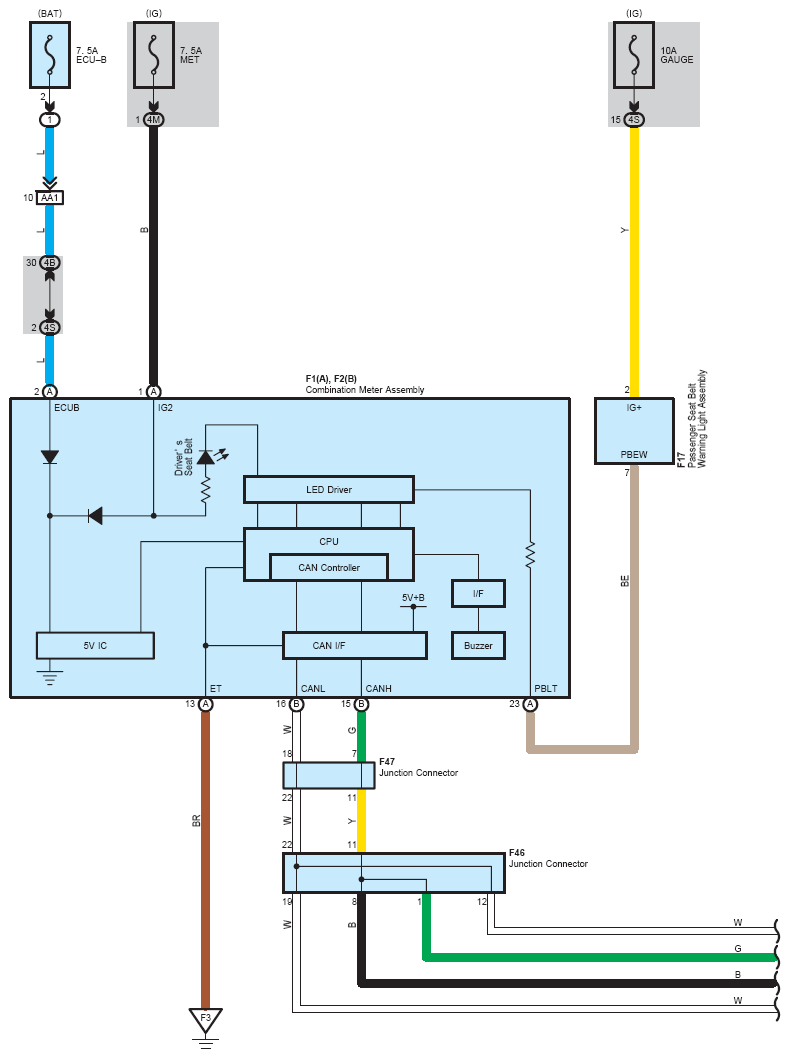

Fig 1: Seat Belt Warning System Wiring Diagram (1 Of 4)
G08761201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

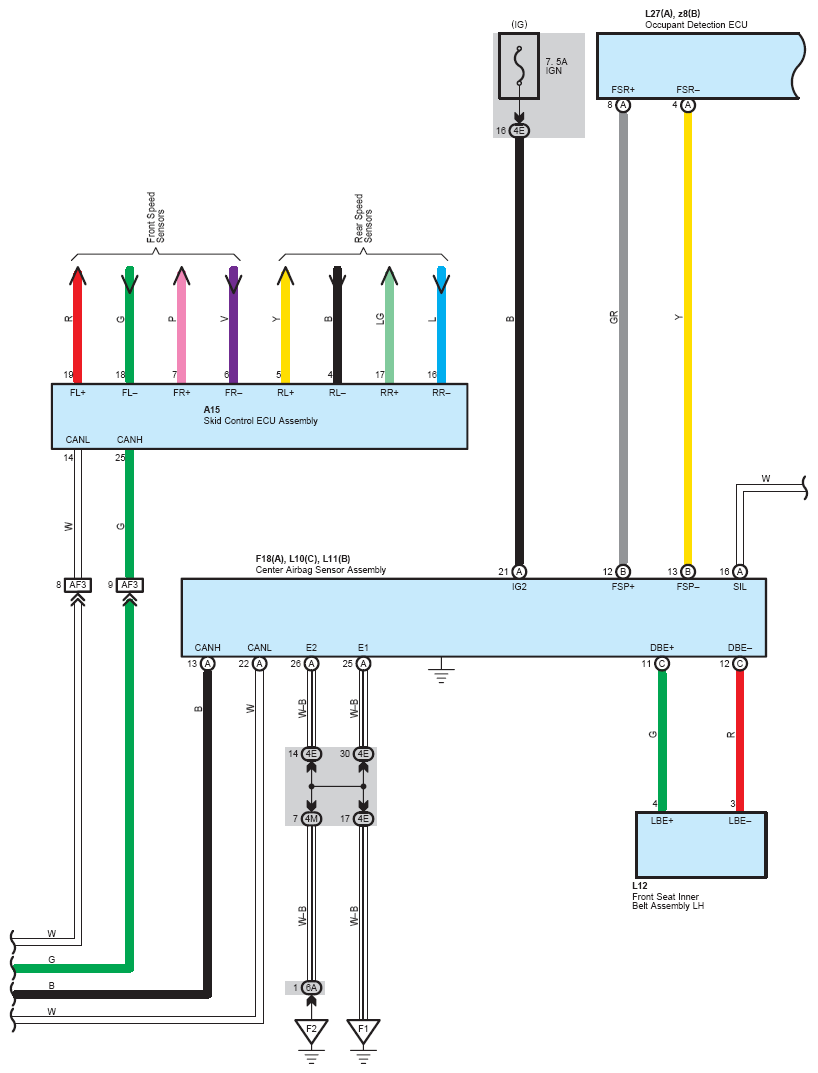

Fig 2: Seat Belt Warning System Wiring Diagram (2 Of 4)
G08761202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

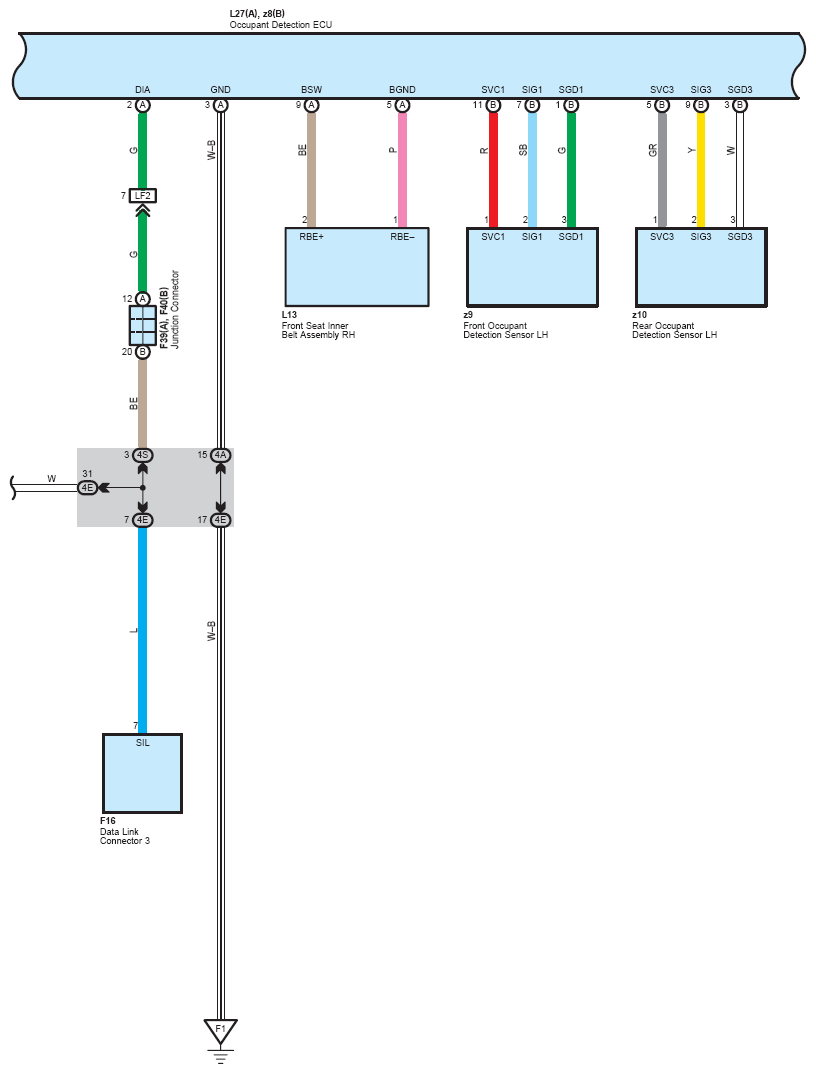

Fig 3: Seat Belt Warning System Wiring Diagram (3 Of 4)
G08761203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

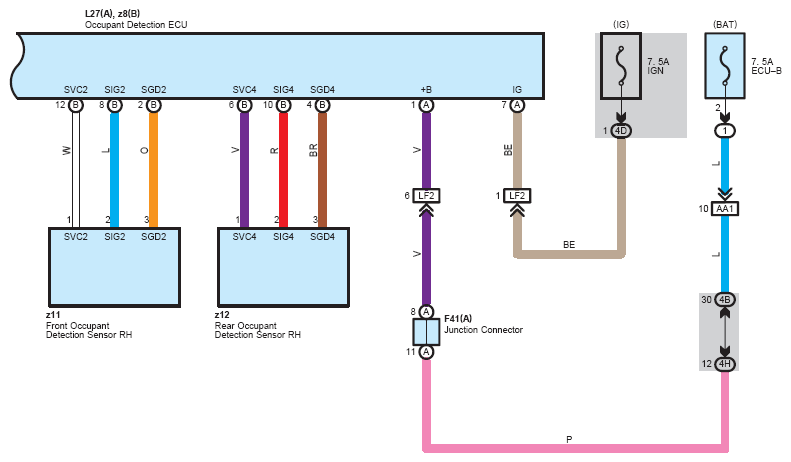

Fig 4: Seat Belt Warning System Wiring Diagram (4 Of 4)
G08761204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
