Charging System (Service Information): Generator: Installation: Installation

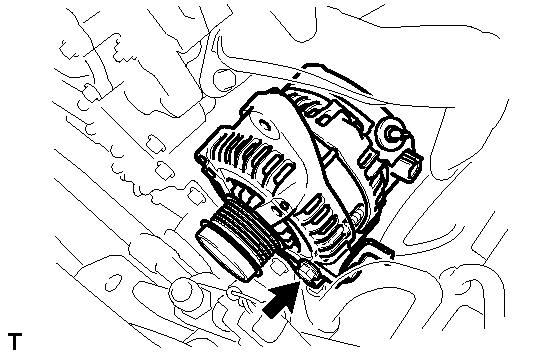

Fig 1: Locating Generator Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the wire harness bracket with the bolt.

   Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

2. Provisionally install the generator assembly with the bolt.
3. Provisionally install the fan belt adjusting bar and generator assembly with the 2 bolts.

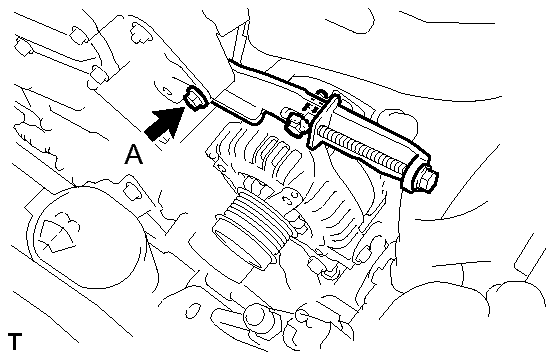

   Fig 2: Locating Fan Belt Adjusting Bar Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the bolt A to the specified torque.

   Torque: 19 N*m (189 kgf*cm, 14 ft.*lbf)

   Fig 3: Locating Generator Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the connector and wire harness clamp.

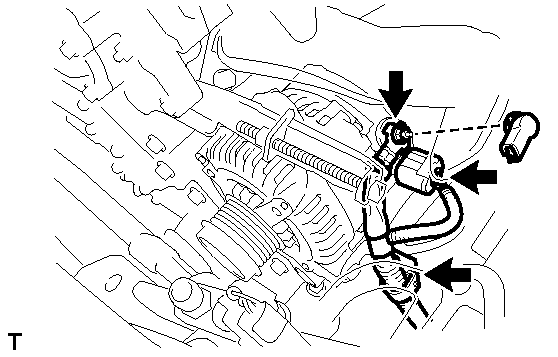

   Fig 4: Locating Connector And Wire Harness Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install terminal B with the nut.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

7. Install the terminal cap.

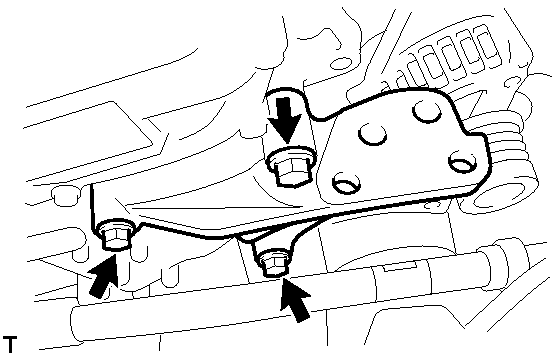

1. Install the engine mounting bracket with the 3 bolts.

   Torque: 51 N*m (520 kgf*cm, 38 ft.*lbf)

   Fig 5: Locating Engine Mounting Bracket Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine mounting insulator sub-assembly RH with the 6 bolts and nut.

   Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

   for bolt A

   Torque: 88 N*m (898 kgf*cm, 65 ft.*lbf)

   for bolt B

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

   for nut

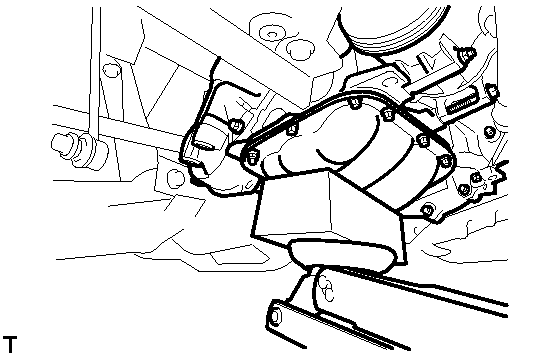

   Fig 6: Locating Engine Mounting Insulator Sub-Assembly RH With Bolts And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the engine mounting stay RH with the 2 bolts.

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

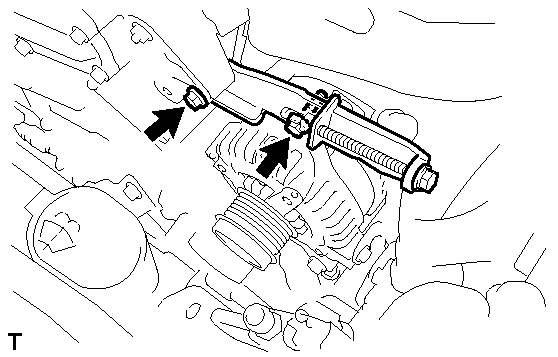

   Fig 7: Installing Engine Mounting Stay RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
