Fuel Injector: Installation: Installation

  1. INSTALL FUEL INJECTOR ASSEMBLY
    1. Apply a light coat of gasoline to new O-rings, then install one onto each fuel injector.

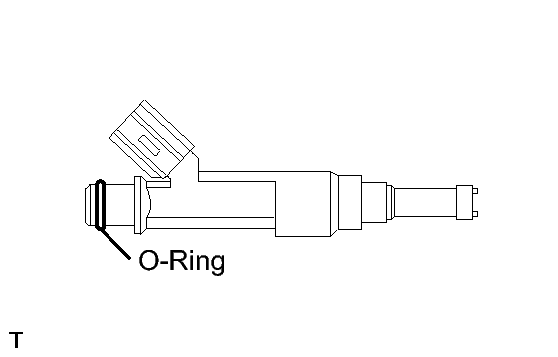

      Fig 1: Identifying O-Ring Of Fuel Injector
      GTY163095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply a light coat of gasoline to the contact surfaces of the fuel delivery pipe and the O-ring of the fuel injector.
    3. While turning the fuel injector left and right, install it onto the fuel delivery pipe.

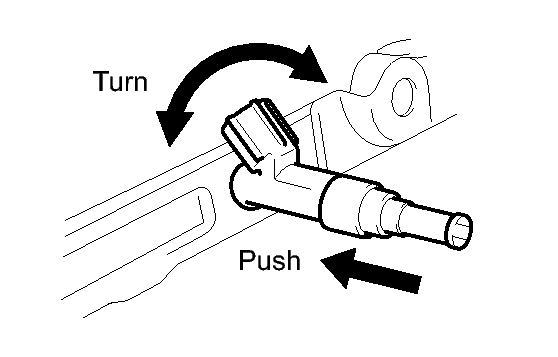

      Fig 2: Turning Fuel Injector Left And Right
      GTY166806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not twist the O-ring.
      • After installing the fuel injectors, check that they turn smoothly. If they do not, replace the O-ring with a new one.
  2. INSTALL INJECTOR VIBRATION INSULATOR
    1. Install 4 new injector vibration insulators onto the cylinder head.

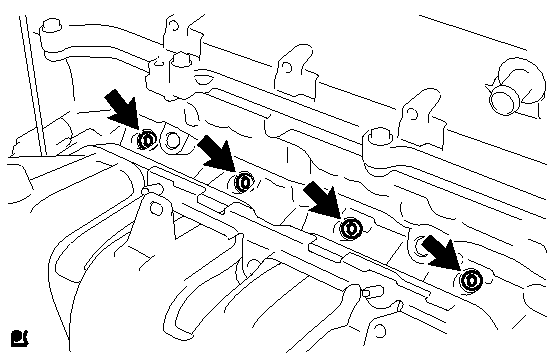

      Fig 3: Locating Injector Vibration Insulators
      GTY163575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 DELIVERY PIPE SPACER
    1. Install the 2 No. 1 delivery pipe spacers onto the cylinder head.

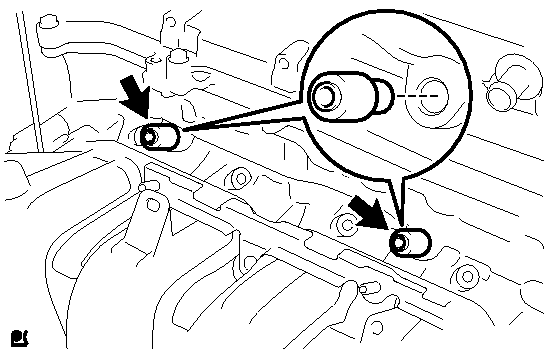

      Fig 4: Locating No. 1 Delivery Pipe Spacers
      GTY161082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Install the No. 1 delivery pipe spacers in the correct direction.

  4. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY
    1. Install the fuel delivery pipe with the 4 fuel injectors, then provisionally install the 3 bolts.

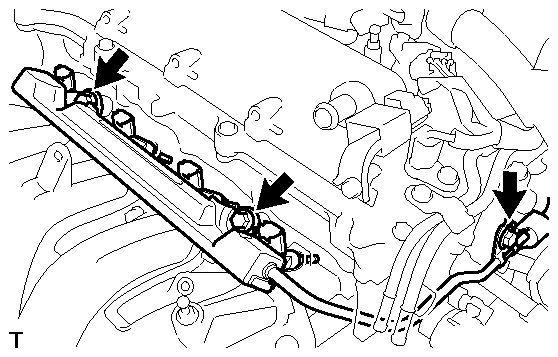

      Fig 5: Locating Fuel Delivery Pipe, Fuel Injectors And Bolts
      GTY161083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not drop the fuel injectors when installing the fuel delivery pipe.
      • Check that the fuel injectors rotate smoothly after installing the fuel delivery pipe.
    2. Tighten the 3 bolts to the specified torque.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

  5. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Insert the fuel tube connector into the fuel pipe until a click sound can be heard.

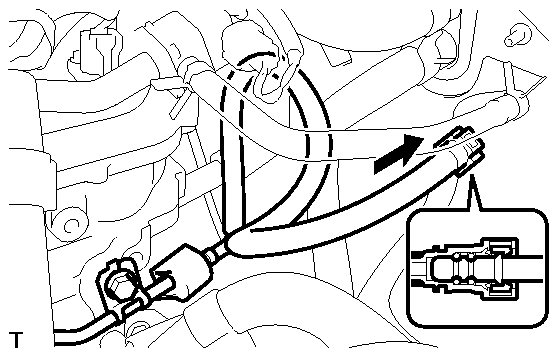

      Fig 6: Connecting Fuel Tube Sub-Assembly
      GTY161171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that there are no scratches or foreign matter around the disconnected parts of the fuel tube connector and pipe before performing this work.
      • After connecting the fuel tube, check that the fuel tube connector and pipe are securely connected by pulling them.
  6. INSTALL FUEL PIPE CLAMP
    1. Install the fuel pipe clamp.

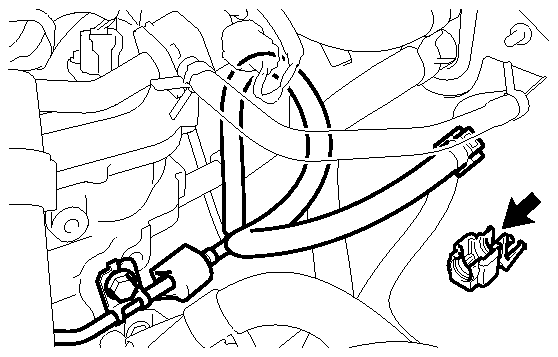

      Fig 7: Locating Fuel Pipe Clamp
      GTY164881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CONNECT VACUUM HOSE
    1. Connect the vacuum hose.

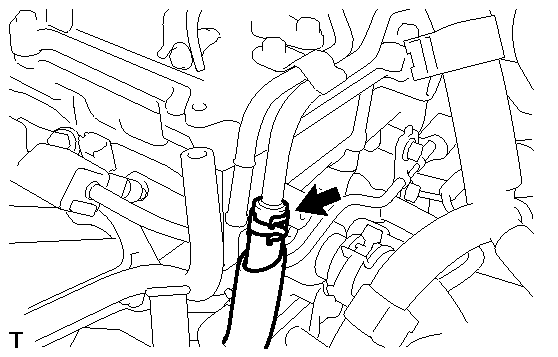

      Fig 8: Locating Vacuum Hose
      GTY164580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Connect the No. 1 fuel vapor feed hose.

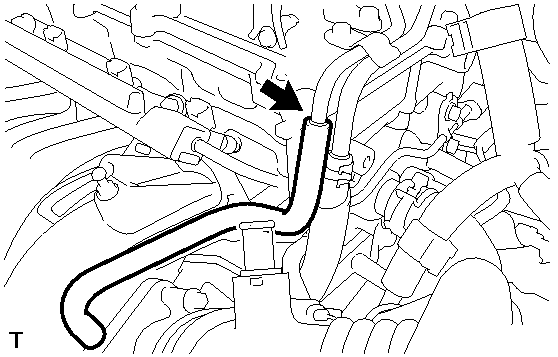

      Fig 9: Locating No. 1 Fuel Vapor Feed Hose
      GTY161168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL HARNESS BRACKET
    1. Install the 2 harness brackets with the 2 bolts.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

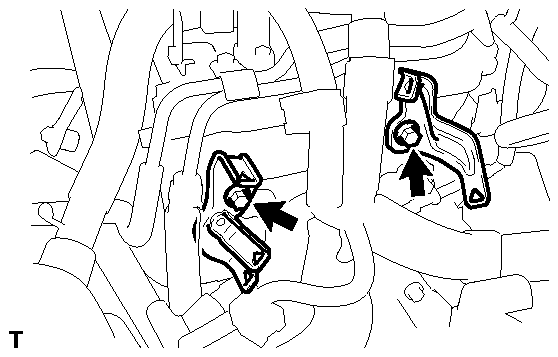

      Fig 10: Locating Harness Brackets And Bolts
      GTY160997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 5 wire harness clamps shown in the illustration.

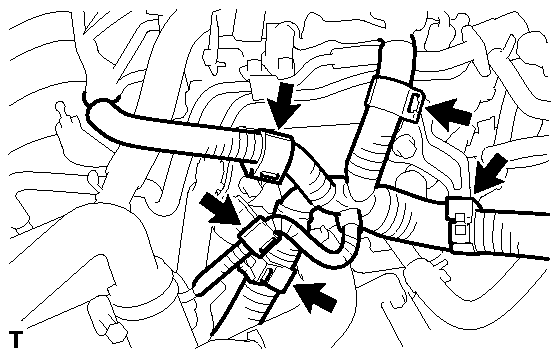

      Fig 11: Locating Wire Harness Clamps
      GTY163474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ENGINE WIRE HARNESS
    1. Install the engine wire harness with 3 bolts and harness clamp.

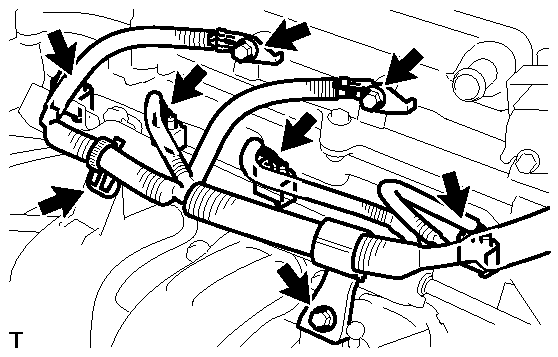

      Fig 12: Locating Engine Wire Harness Bolts And Clamp
      GTY166732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 fuel injector connectors.
  11. INSTALL NO. 2 VENTILATION HOSE
    1. Install the No. 2 ventilation hose.

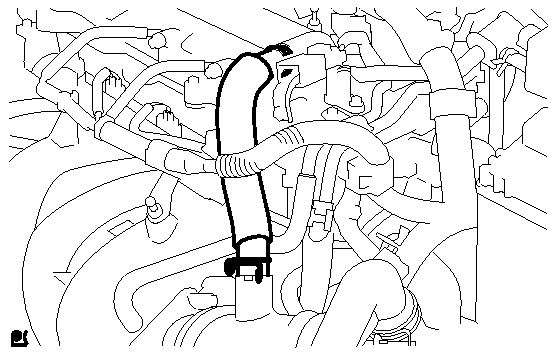

      Fig 13: Identifying No. 2 Ventilation Hose
      GTY166359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSPECT FOR FUEL LEAK
  13. INSTALL NO. 2 CYLINDER HEAD COVER  . Refer to INSTALLATION - Step 3
