Fuel Injector: Components: Illustration

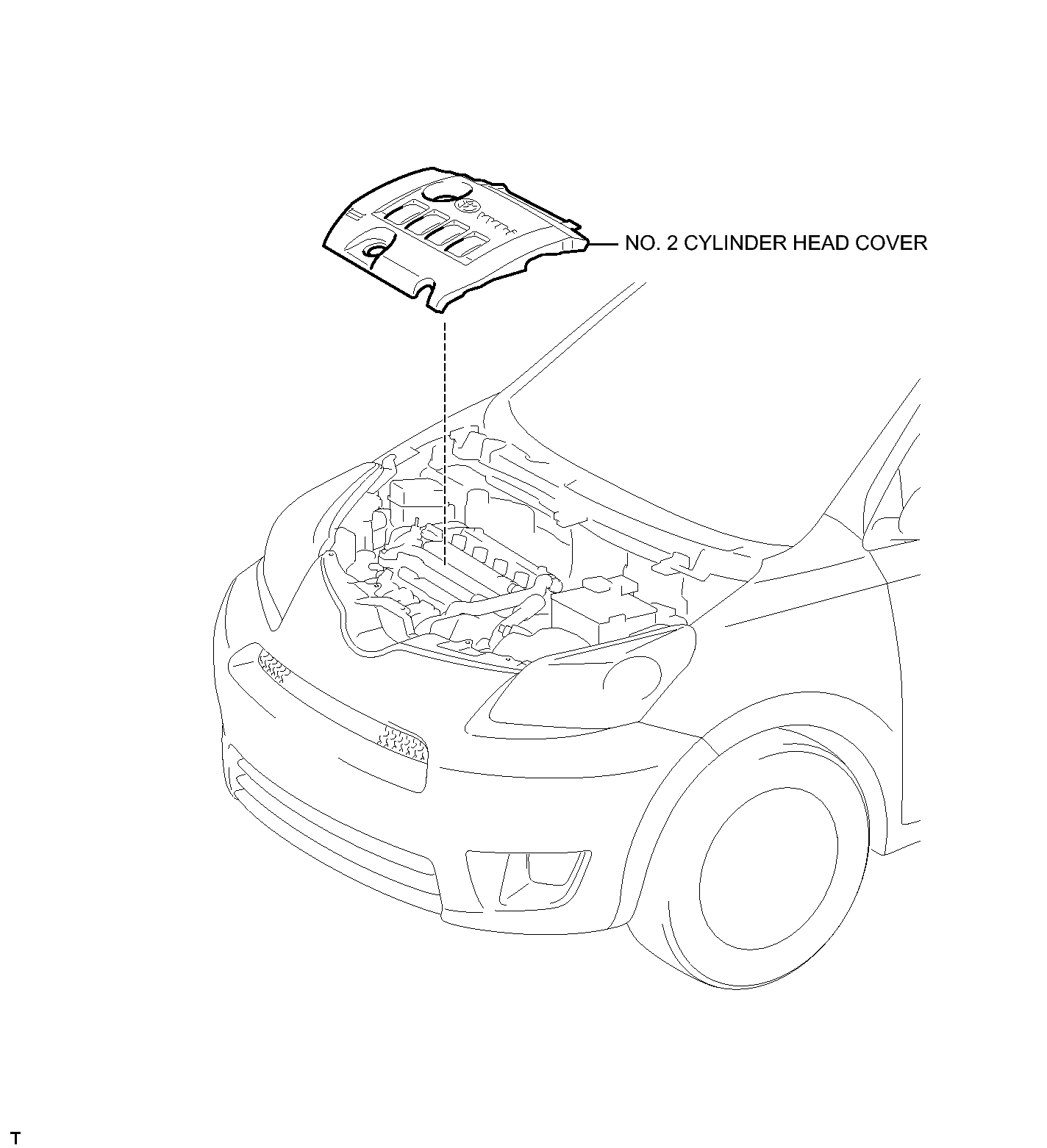

Fig 1: Identifying Fuel Injector Replacement Components (1 Of 2)
GTY162003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

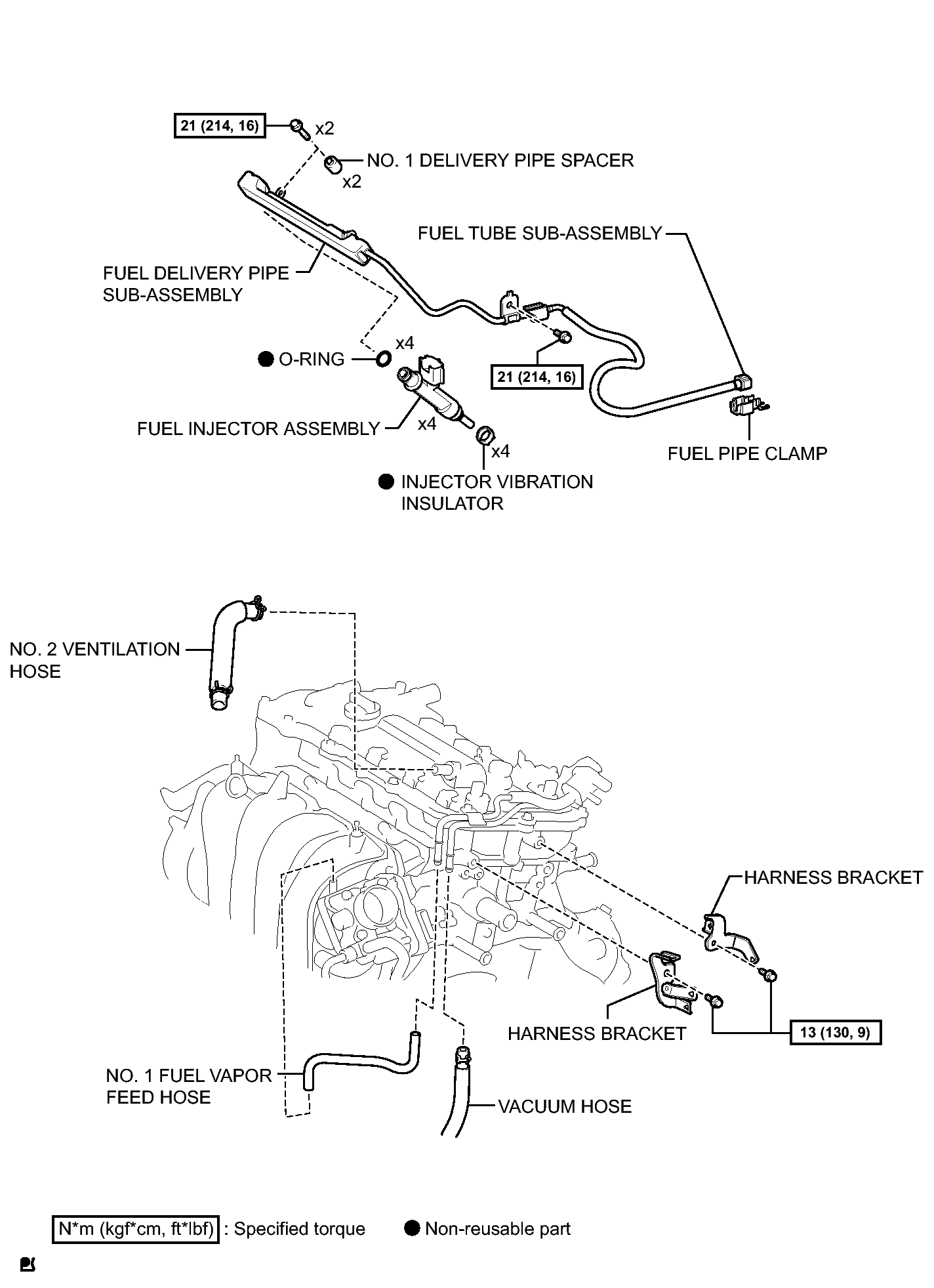

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
GTY160994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
