Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specification (1 Of 3)
GTY159585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Pump Replacement Components (2 Of 3)
GTY160842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

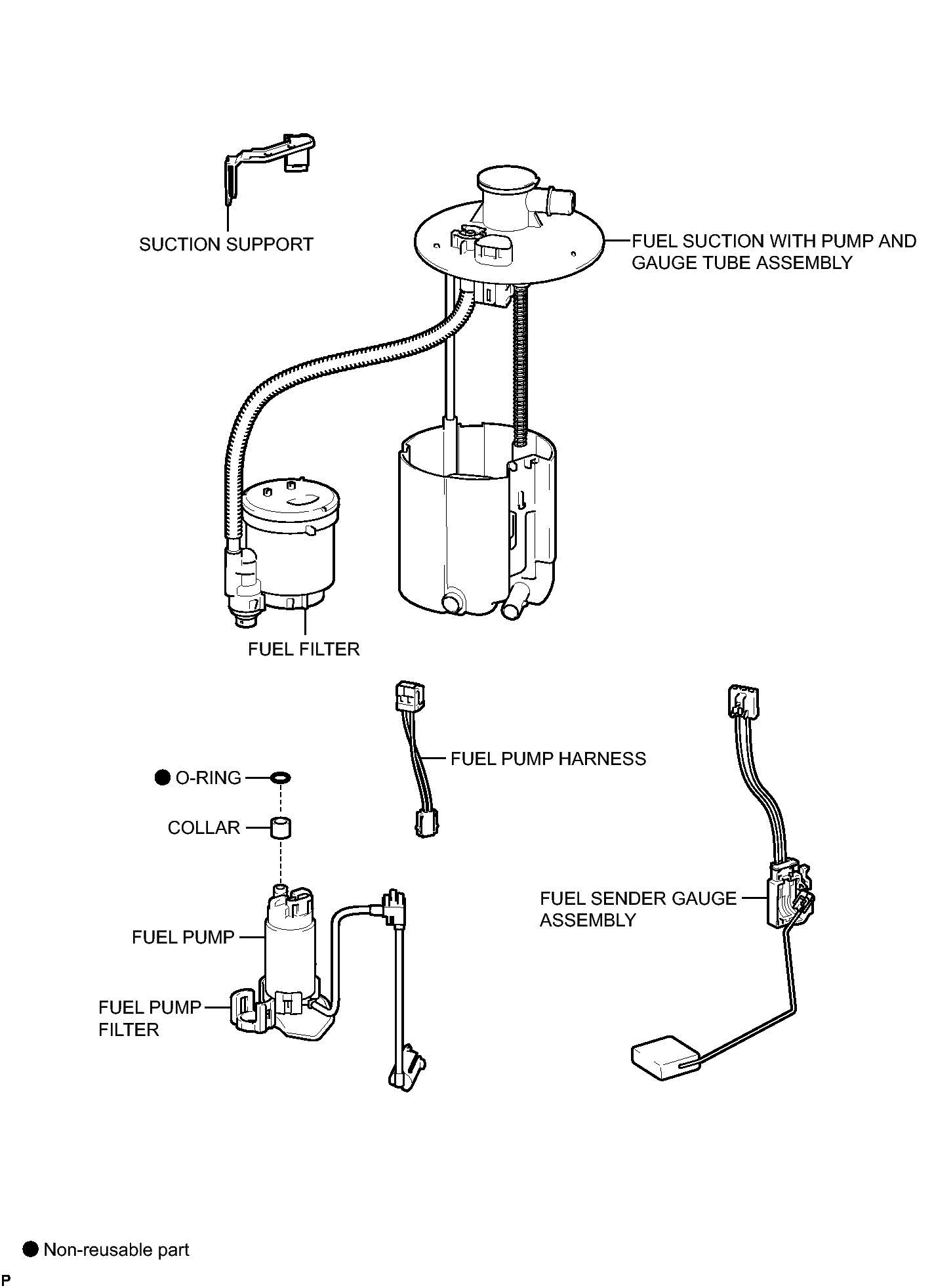

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 3)
GTY165231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
