Fuel Tank: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specification (1 Of 3)
GTY159585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

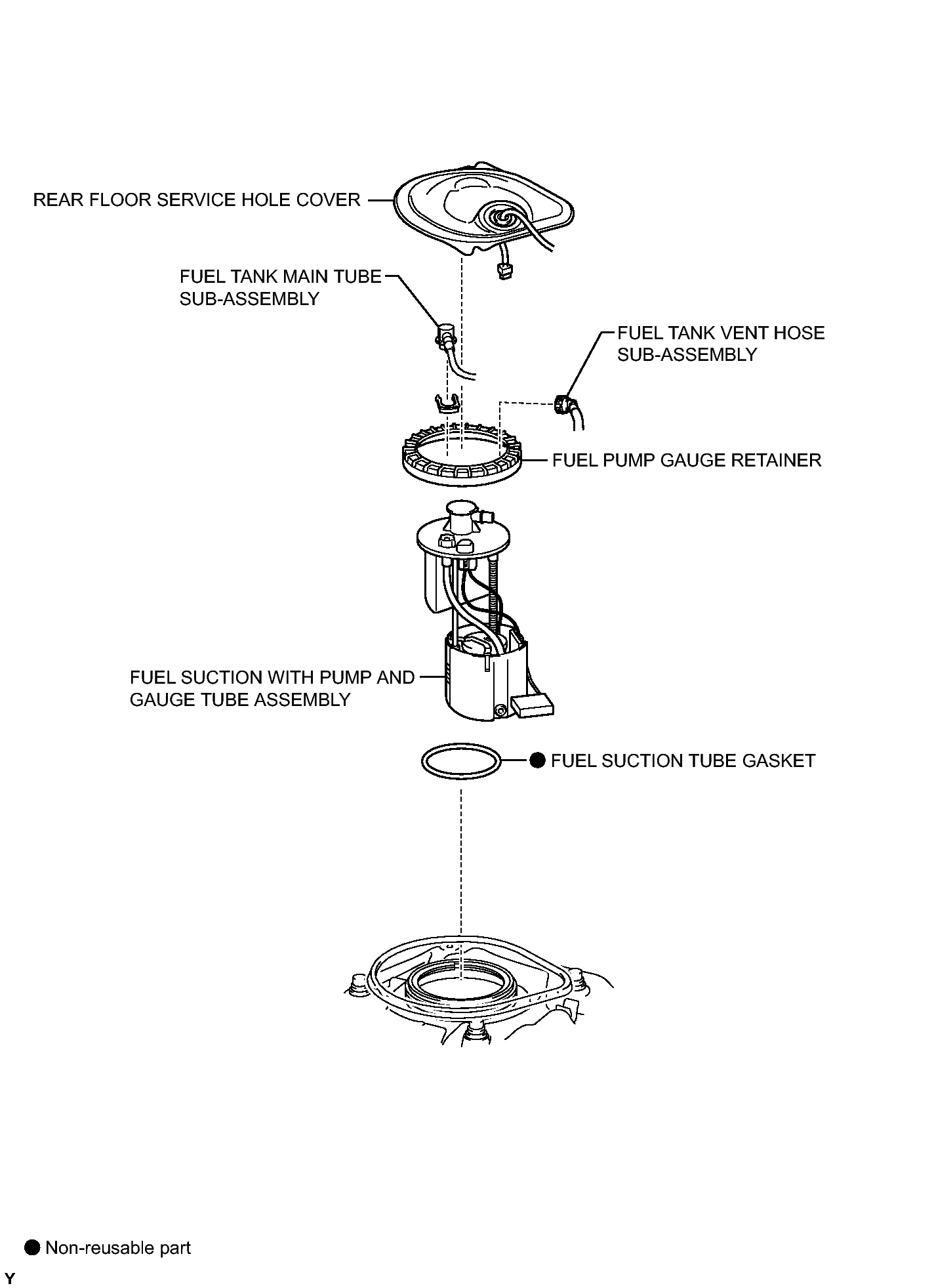

Fig 1: Identifying Fuel Pump Replacement Components (2 Of 3)
GTY160842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

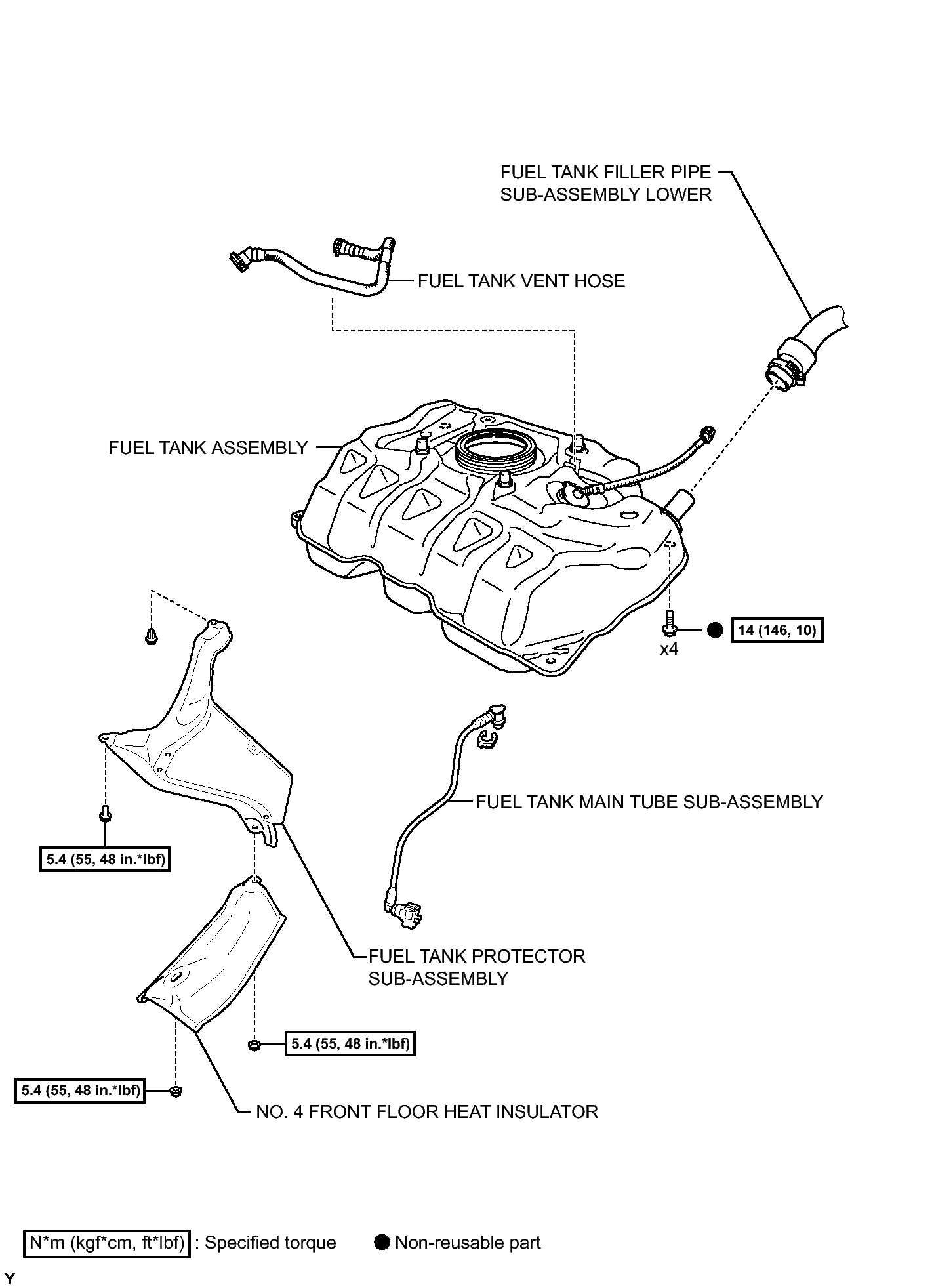

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY160843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
