OEM System Circuits: Headlight: Notes

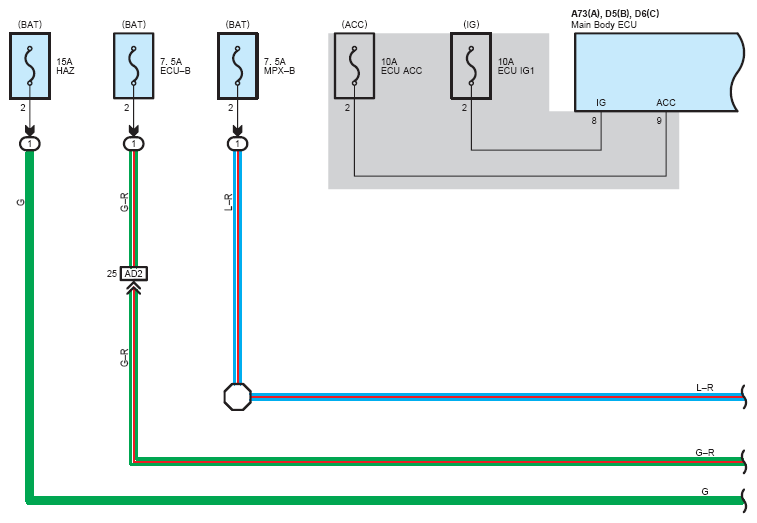

Fig 1: Headlight - Wiring Diagram (1 Of 8)

G08774118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

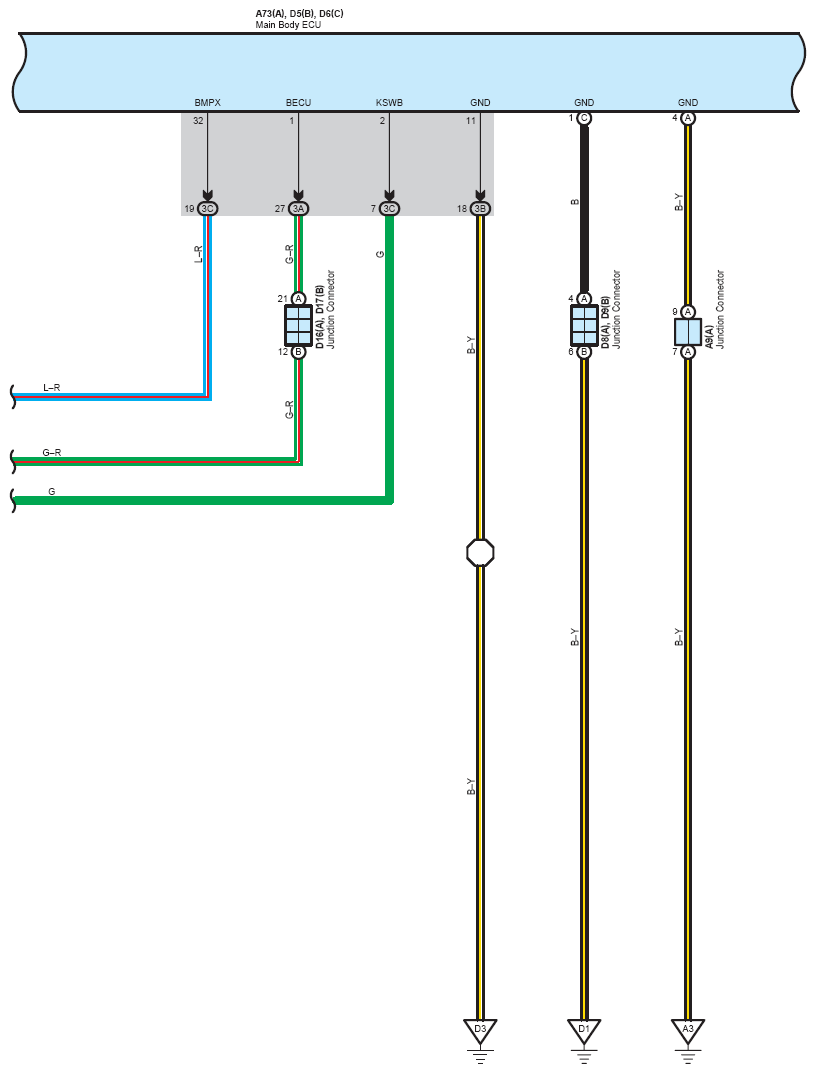

Fig 2: Headlight - Wiring Diagram (2 Of 8)

G08774119

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

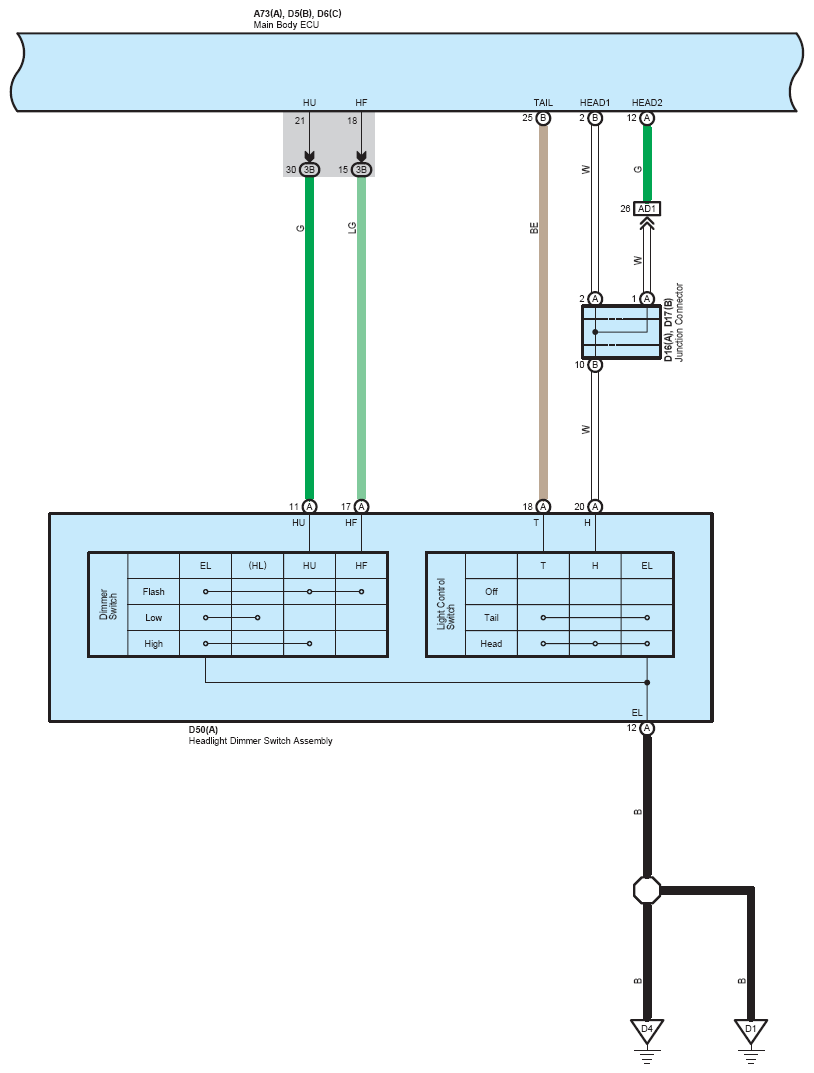

Fig 3: Headlight - Wiring Diagram (3 Of 8)

G08774120

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

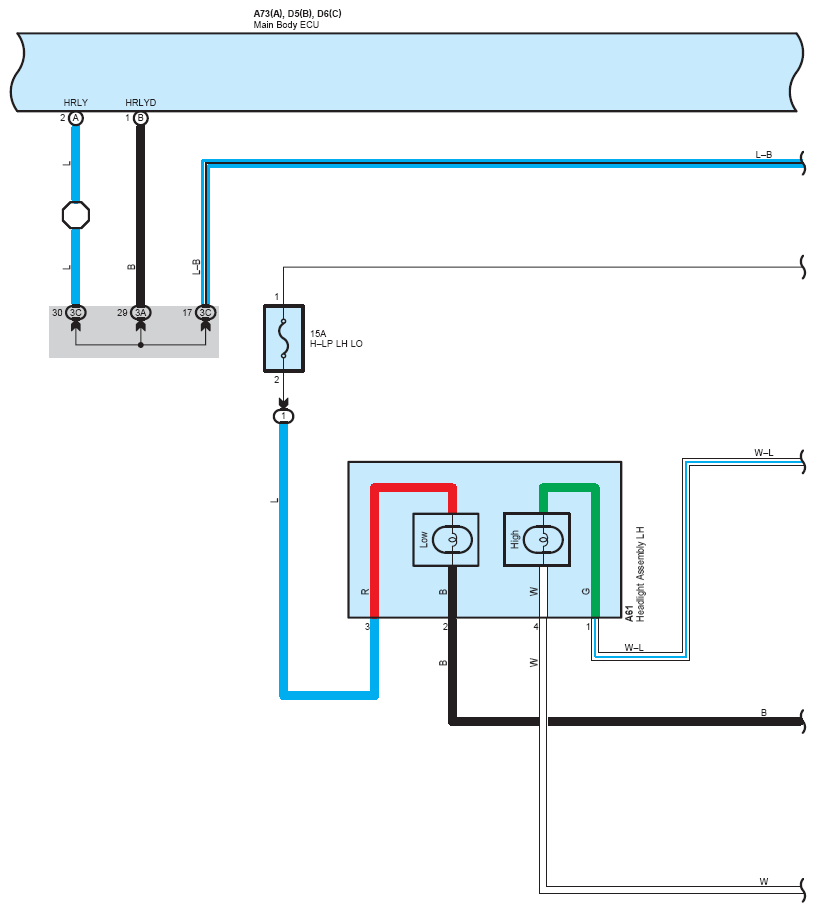

Fig 4: Headlight - Wiring Diagram (4 Of 8)

G08774121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

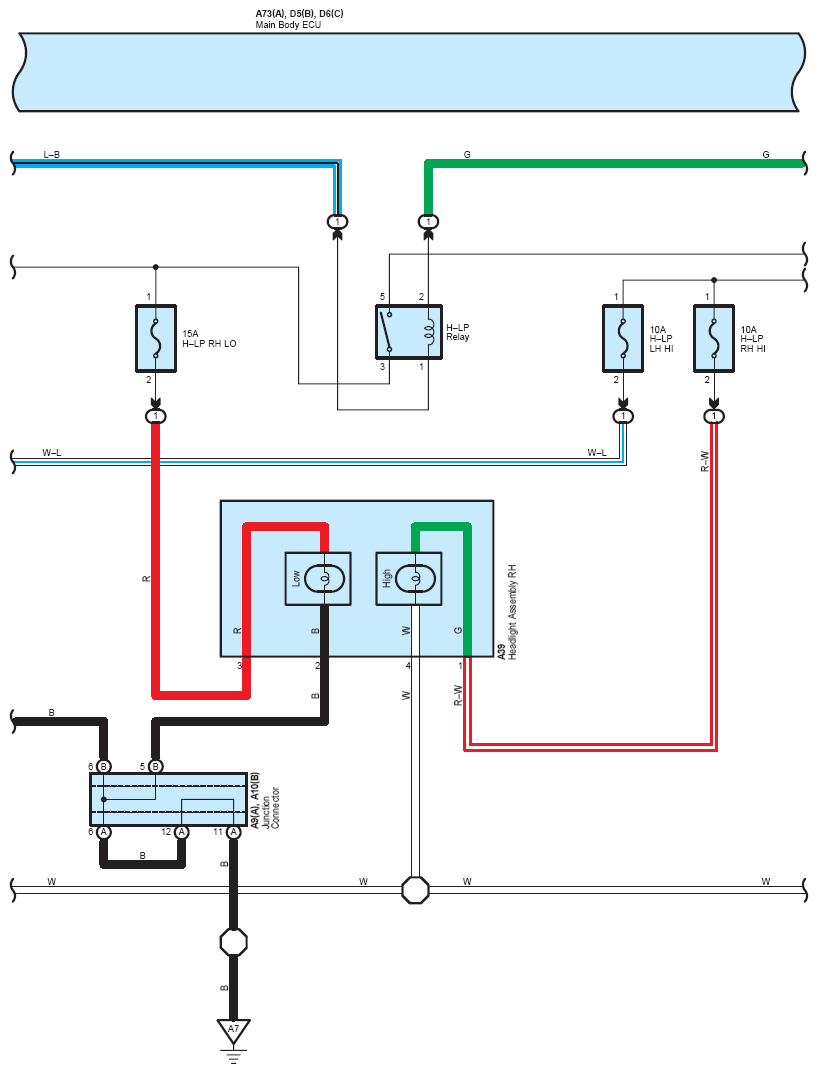

Fig 5: Headlight - Wiring Diagram (5 Of 8)

G08774122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

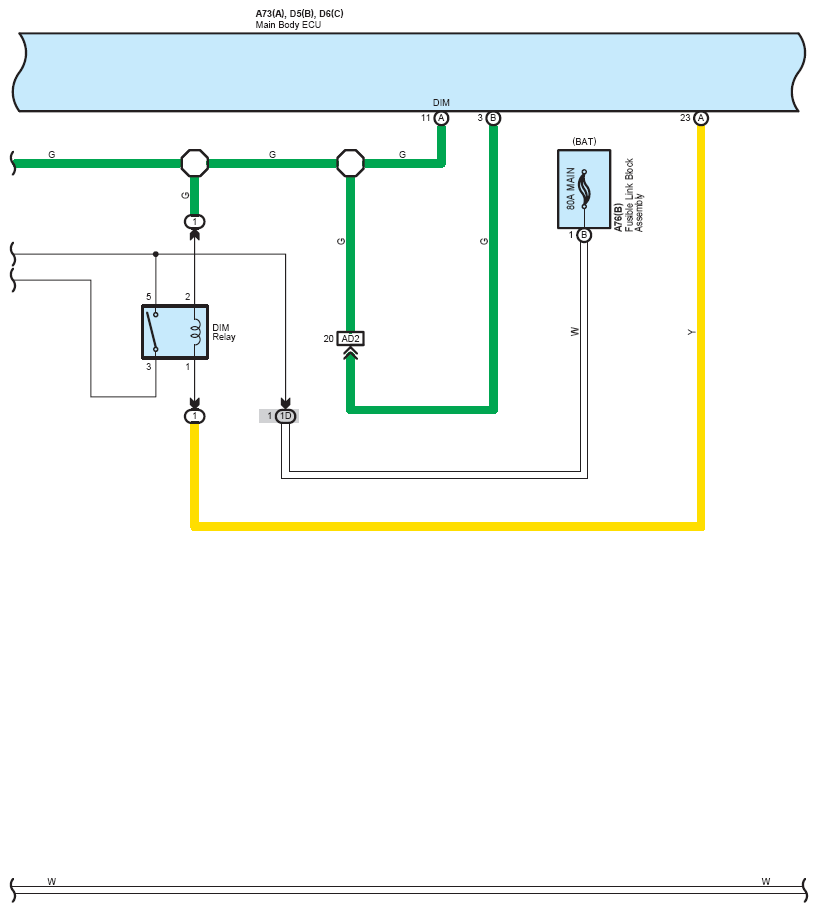

Fig 6: Headlight - Wiring Diagram (6 Of 8)

G08774123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

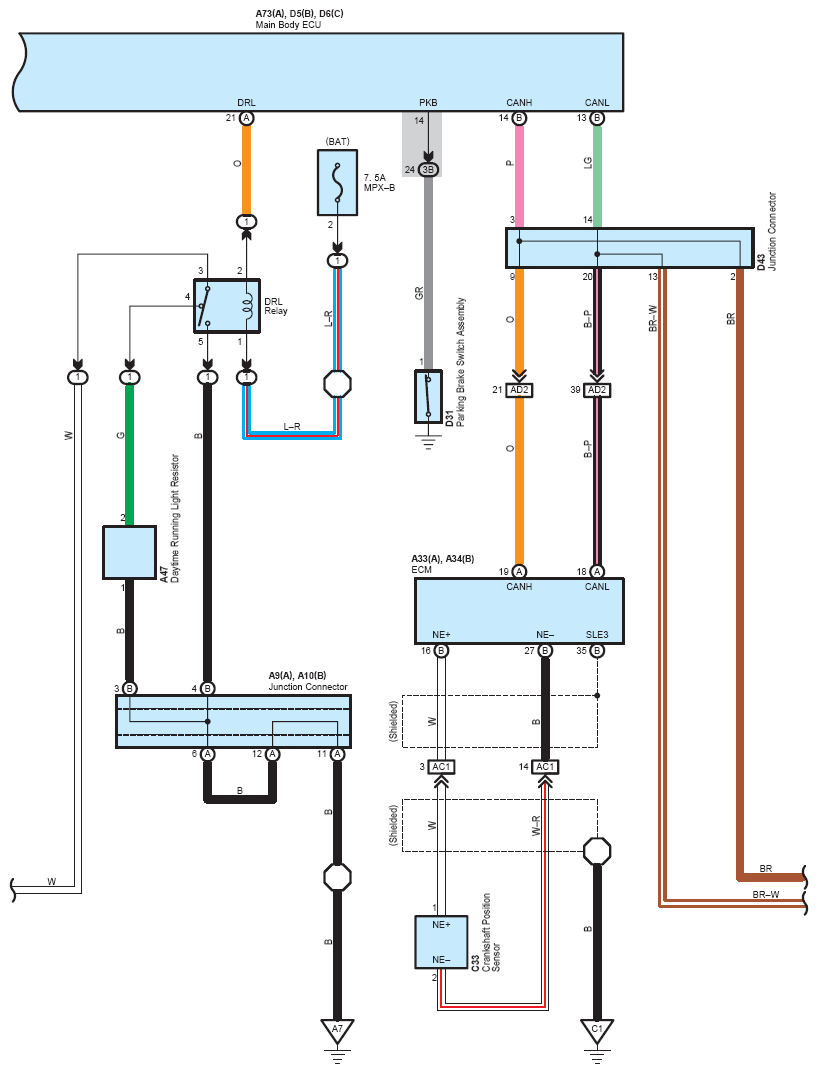

Fig 7: Headlight - Wiring Diagram (7 Of 8)

G08774124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

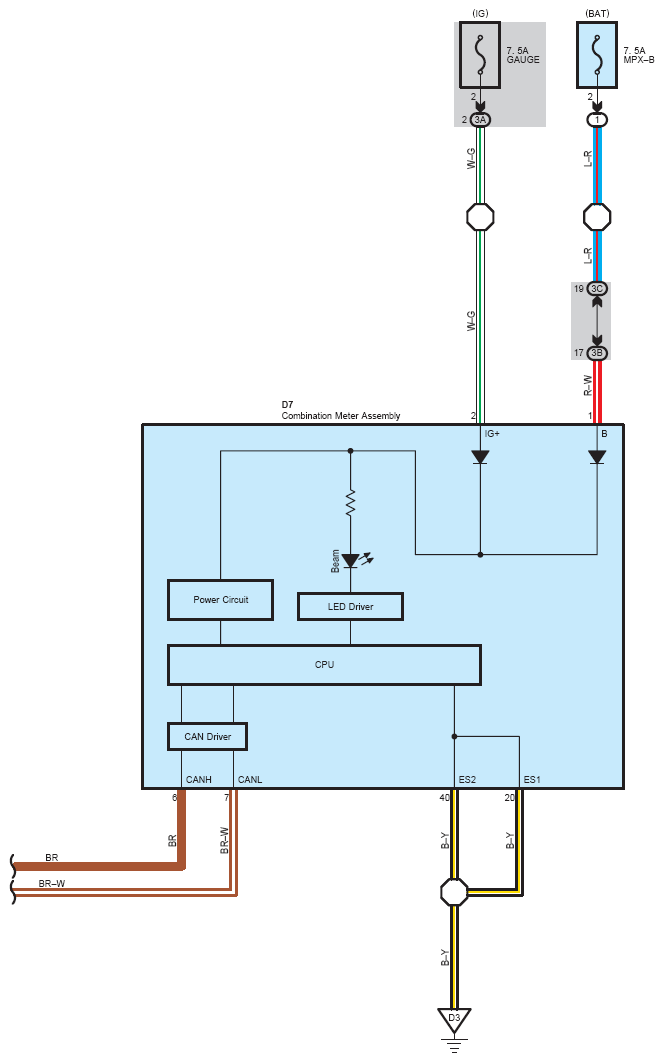

Fig 8: Headlight - Wiring Diagram (8 Of 8)

G08774125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
