Back Door Opener: Notes

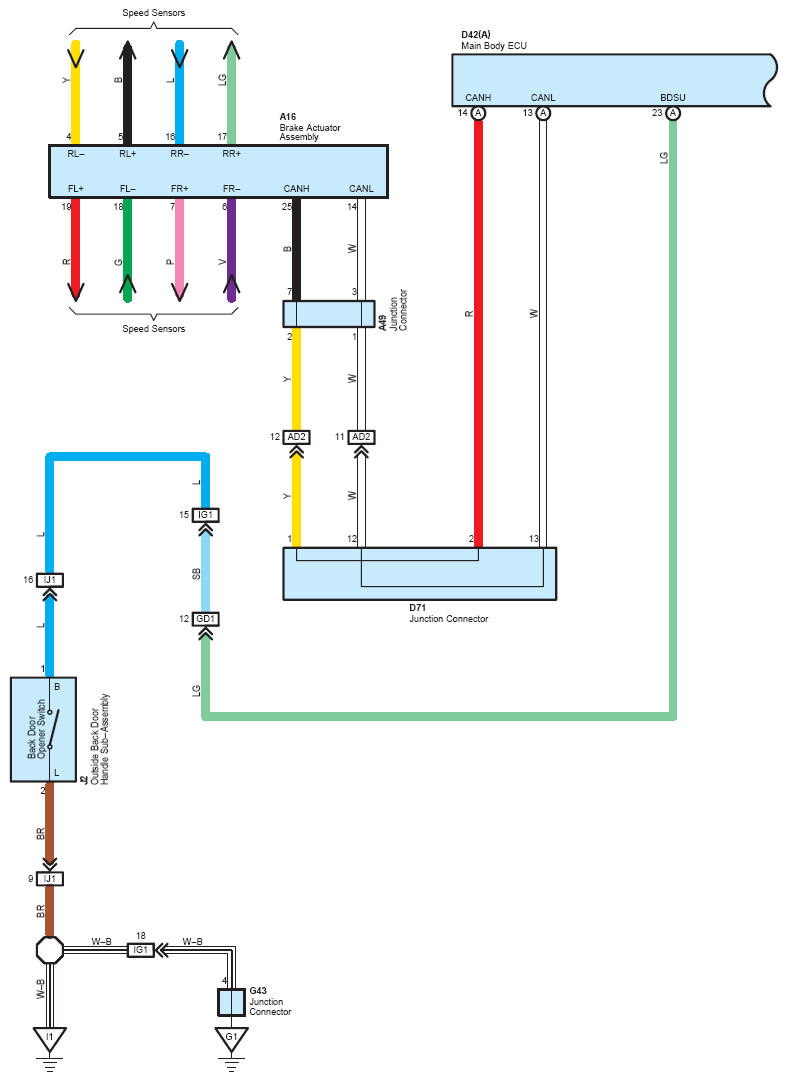

Fig 1: Back Door Opener - Wiring Diagram (1 Of 3)
G08774710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

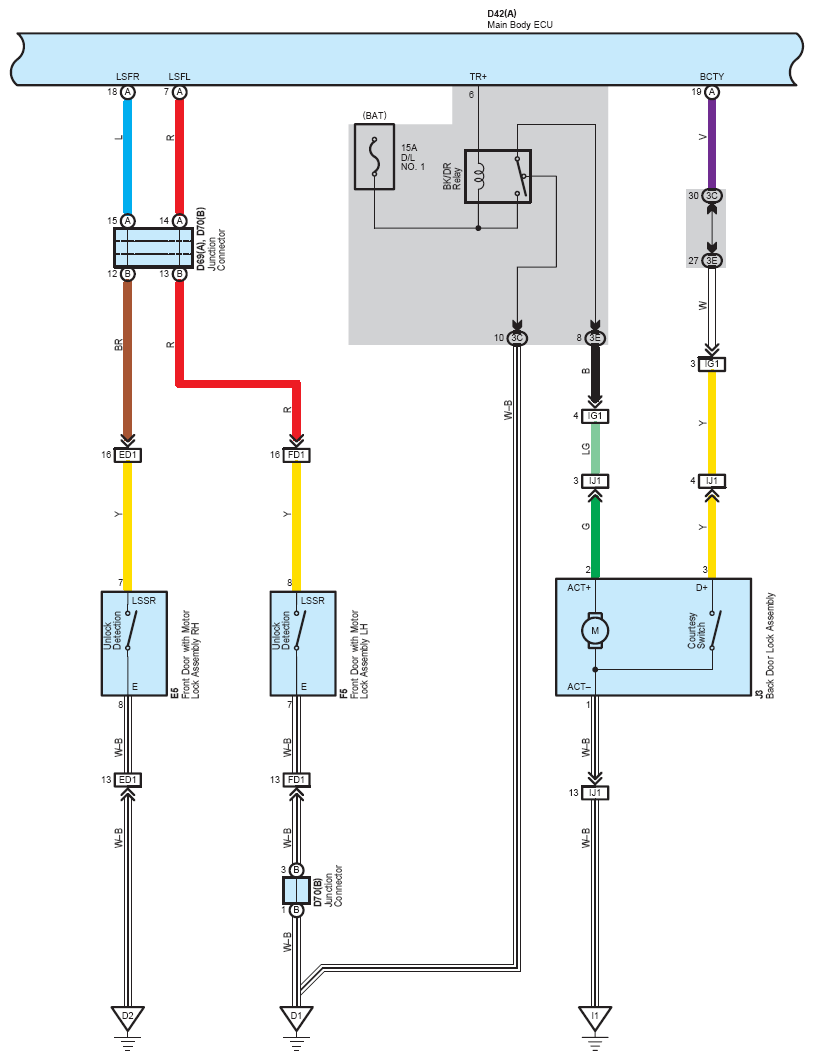

Fig 2: Back Door Opener - Wiring Diagram (2 Of 3)
G08774711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

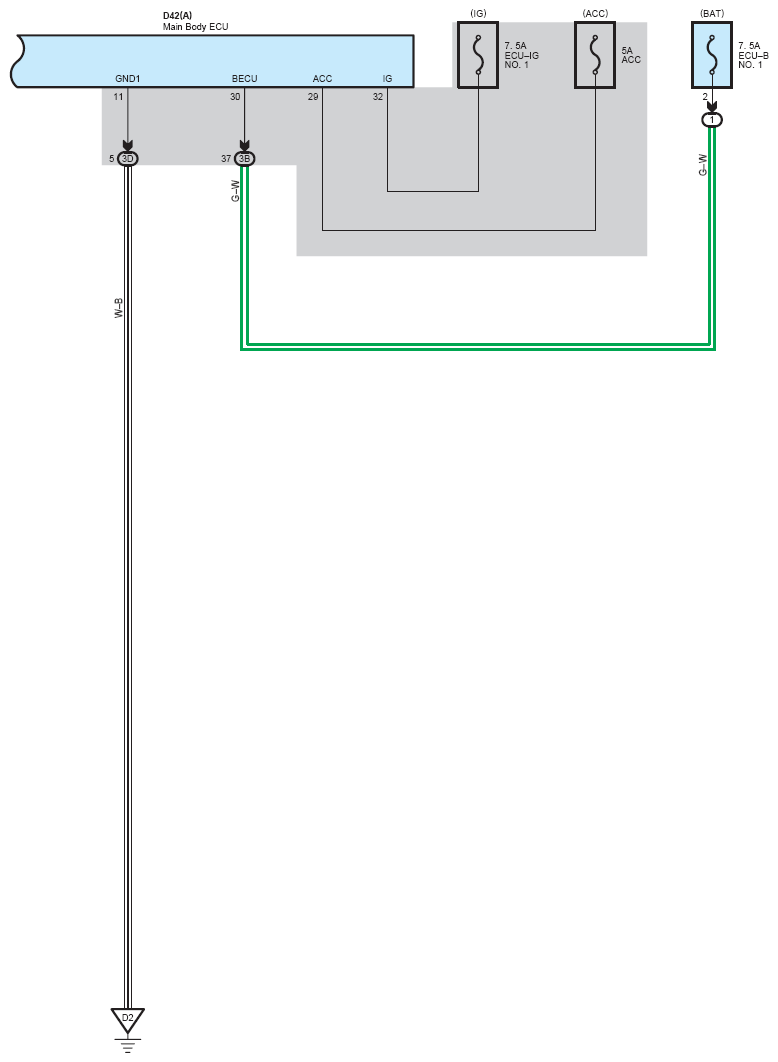

Fig 3: Back Door Opener - Wiring Diagram (3 Of 3)
G08774712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
