Home >> Scion >> 2013 >> iQ Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Ignition >> Notes

OEM System Circuits: Ignition: Notes

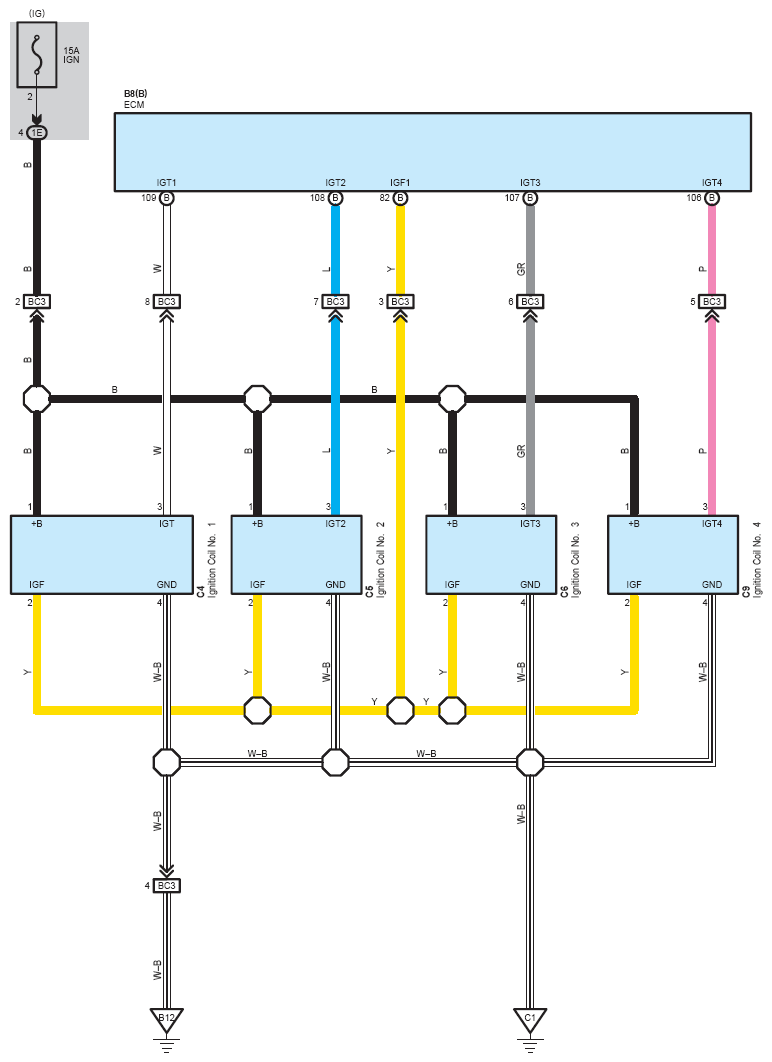

Fig 1: Ignition - Wiring Diagram
G08774640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
