OEM System Circuits: Starting: Notes

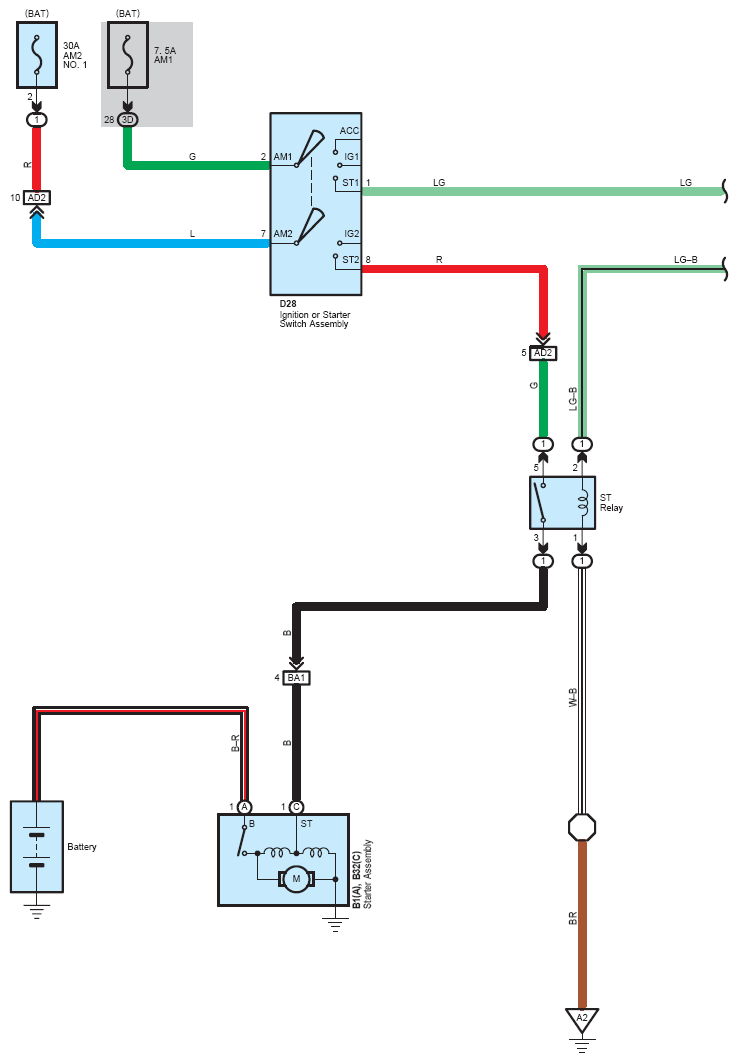

Fig 1: Starting - Wiring Diagram (1 Of 2)
G08774636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

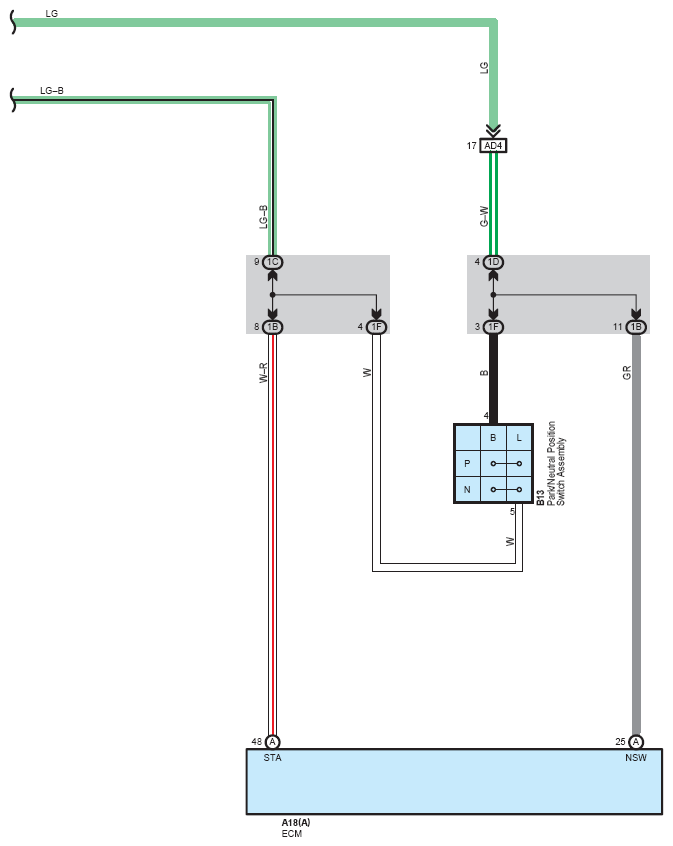

Fig 2: Starting - Wiring Diagram (2 Of 2)
G08774637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
