OEM System Circuits: Back-Up-Light: Notes

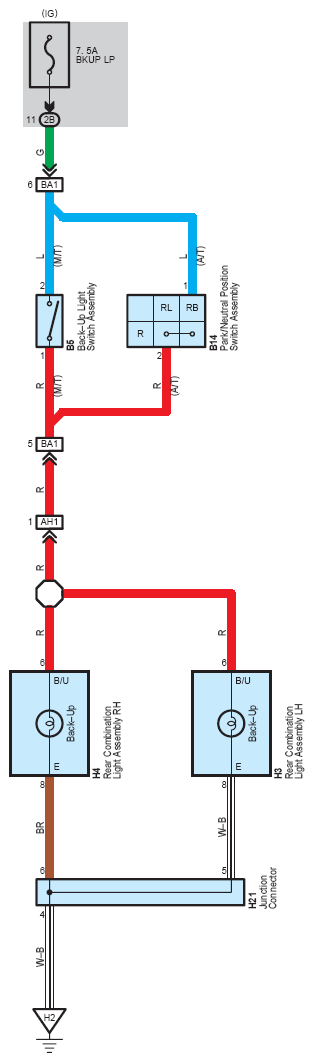

Fig 1: Back-Up-Light - Wiring Diagram
G08775101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
