Parts Location: Illustration

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY310450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY388165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

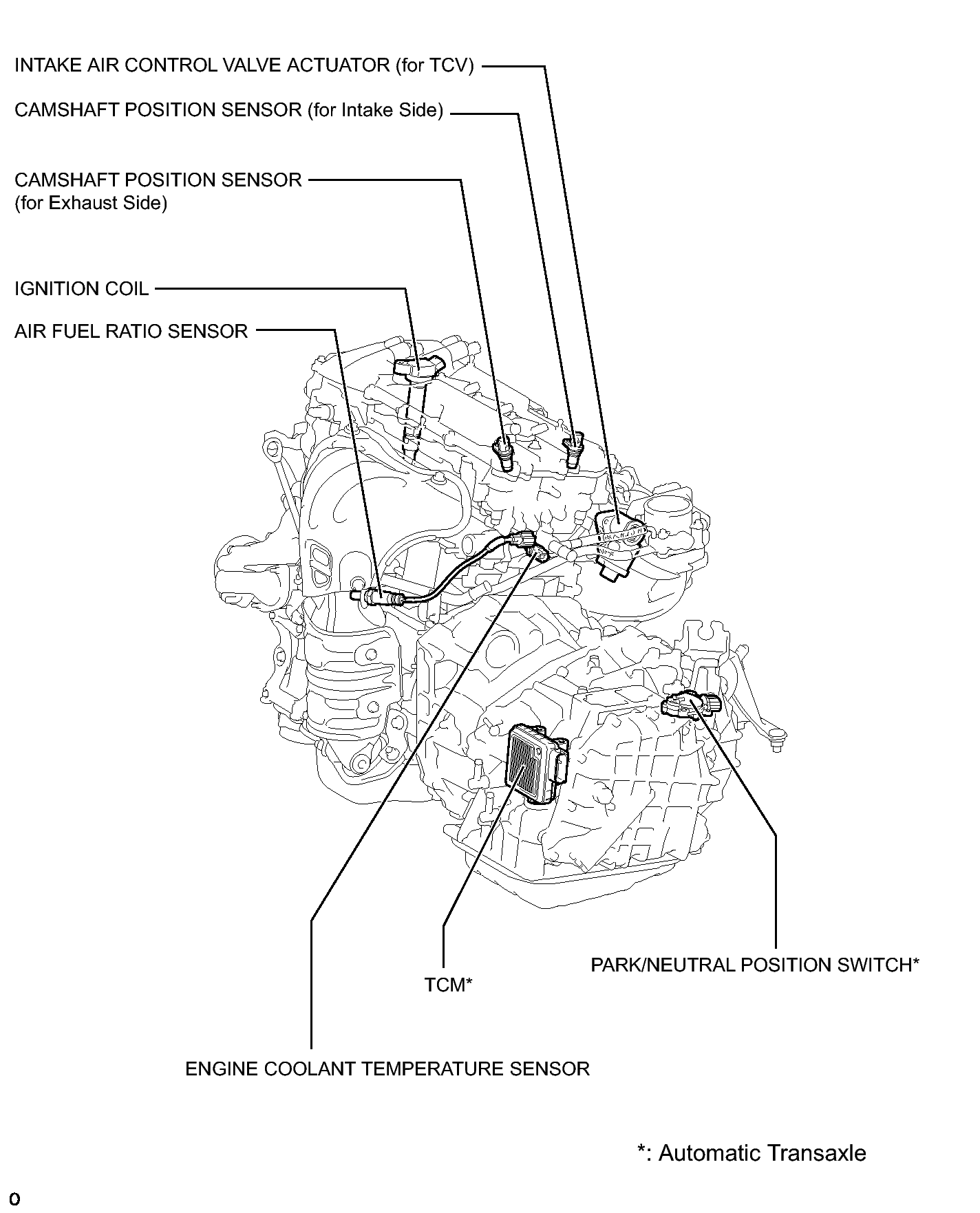

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY344997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

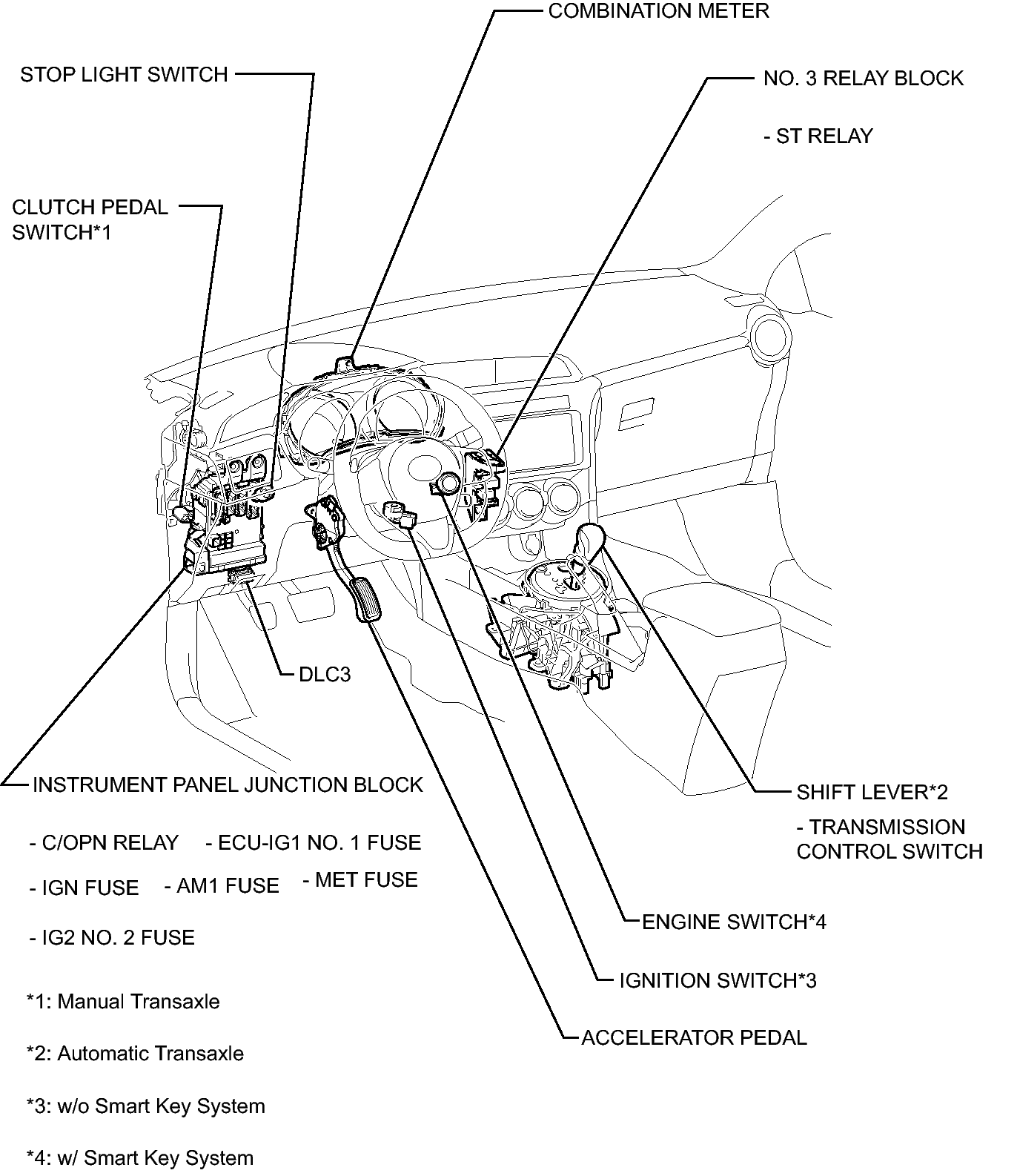

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY390136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
