Home >> Scion >> 2013 >> xD Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Shift Lock >> Notes

Shift Lock: Notes

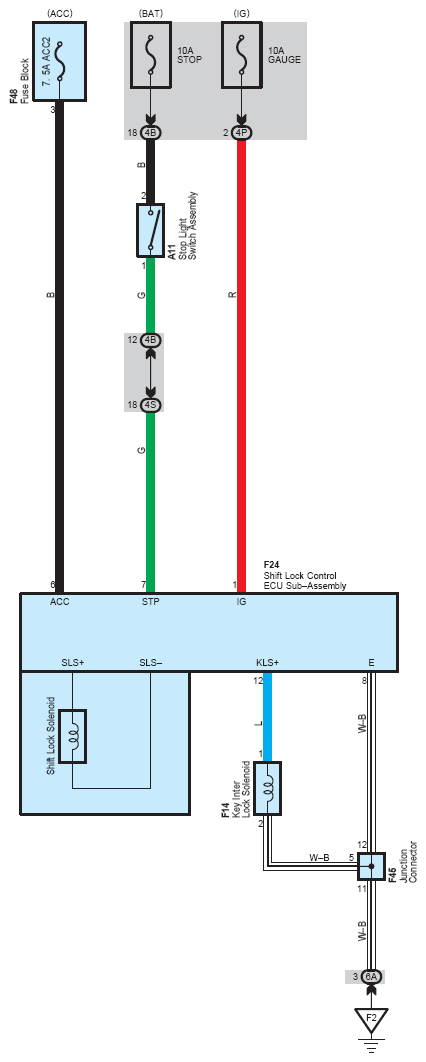

Fig 1: Shift Lock - Circuit Diagram
G08777363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
