Evaporative Emissions System: Maintenance

Check for fuel leaks every 6 months or 6, 000 miles. Check all components and system for proper operation every 12 months or 12, 000 miles. If clogged hoses are found, clean with solvent and blow dry with compressed air. Replace any damaged or worn hoses.

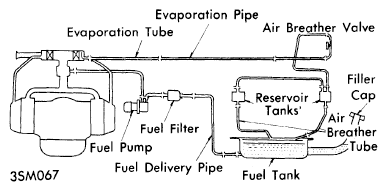

Fig 1: Evaporative System (Early Station Wagon)

Courtesy of SUBARU OF AMERICA, INC.

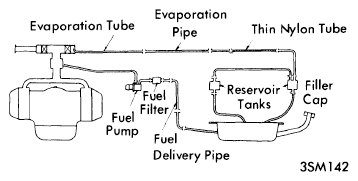

Fig 2: Evaporative System (Later Station Wagon)

Courtesy of SUBARU OF AMERICA, INC.
