Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is a diaphragm spring, single dry disc type, with mechanical actuation through a clutch cable. Release bearing is a sealed unit and requires no lubrication.

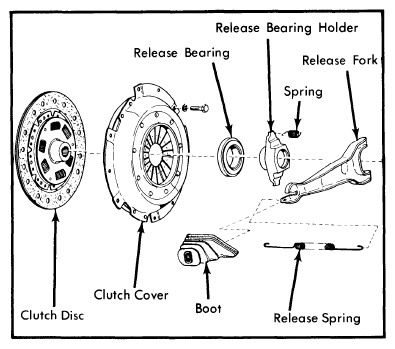

Fig 1: Exploded View of Subaru Clutch Assembly

Courtesy of SUBARU OF AMERICA, INC.
