Plunger Return Test

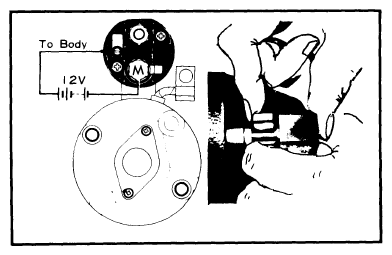

Apply 12 volts between "M" terminal and solenoid case. Pull out starter pinion gear with fingers until it stops. If plunger returns to original position when pinion is released, solenoid is satisfactory.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
