No Load Test

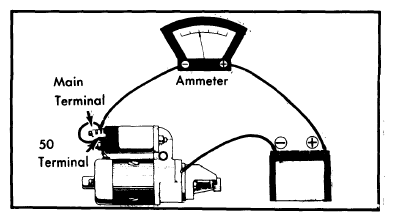

With starter on bench, and using a fully charged 12 volt battery, make connections as shown in Fig 1. Starter should rotate smoothly at more than 5000 RPM, drawing less than 50 amps at 11 volts.
