Pull-In Test

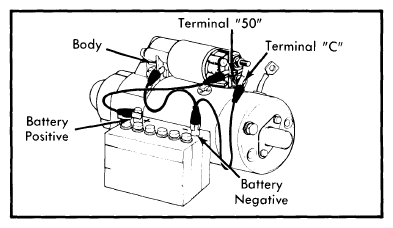

Connect test equipment as shown in Figure. Battery negative is connected to starter body and "C" terminal. Battery positive is connected to terminal "50". If plunger has definitely jumped out, pull-in coil is satisfactory.
Connect test equipment as shown in Figure. Battery negative is connected to starter body and "C" terminal. Battery positive is connected to terminal "50". If plunger has definitely jumped out, pull-in coil is satisfactory.
