Control Units

CONTROL UNITS LOCATION

Component Location

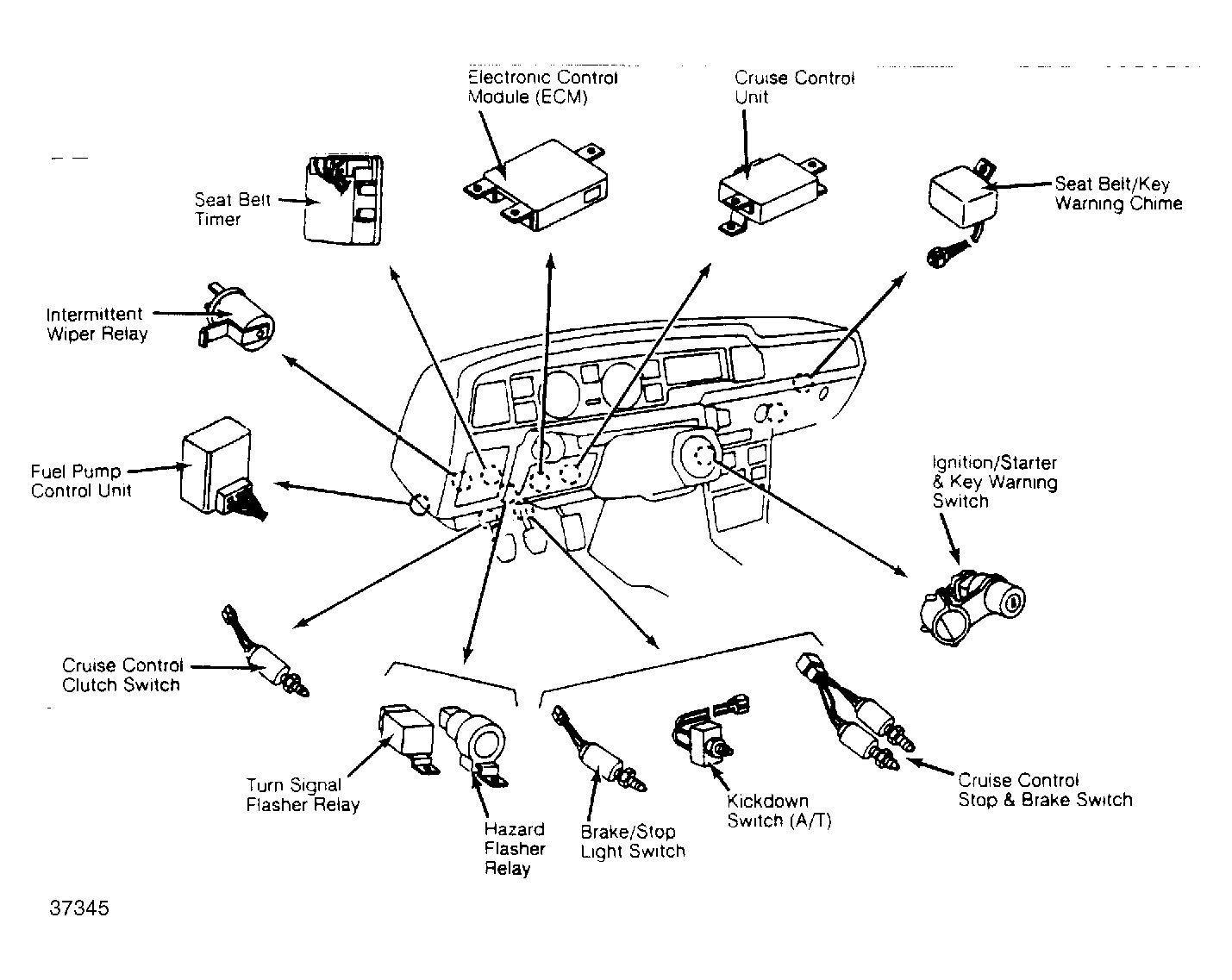

Cruise Control Unit Under left side of dash. See Figure .
Electronic Control Module (ECM) Under left side of dash. See Figure .
Fuel Pump Control Unit Under left side of dash. See Figure .

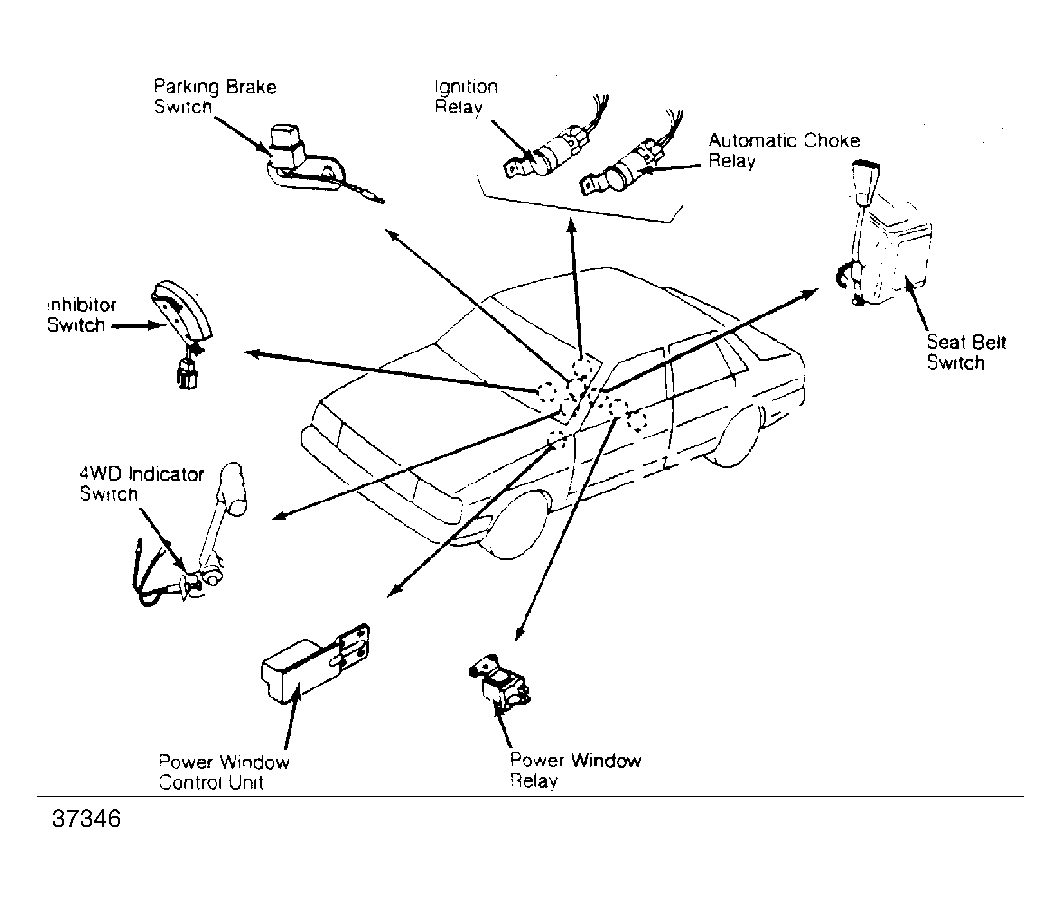

Power Window Control Unit In left side of dash. See Figure .
