Home >> Subaru >> 1984 >> Brat Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Circuit Check I

Circuit Check I

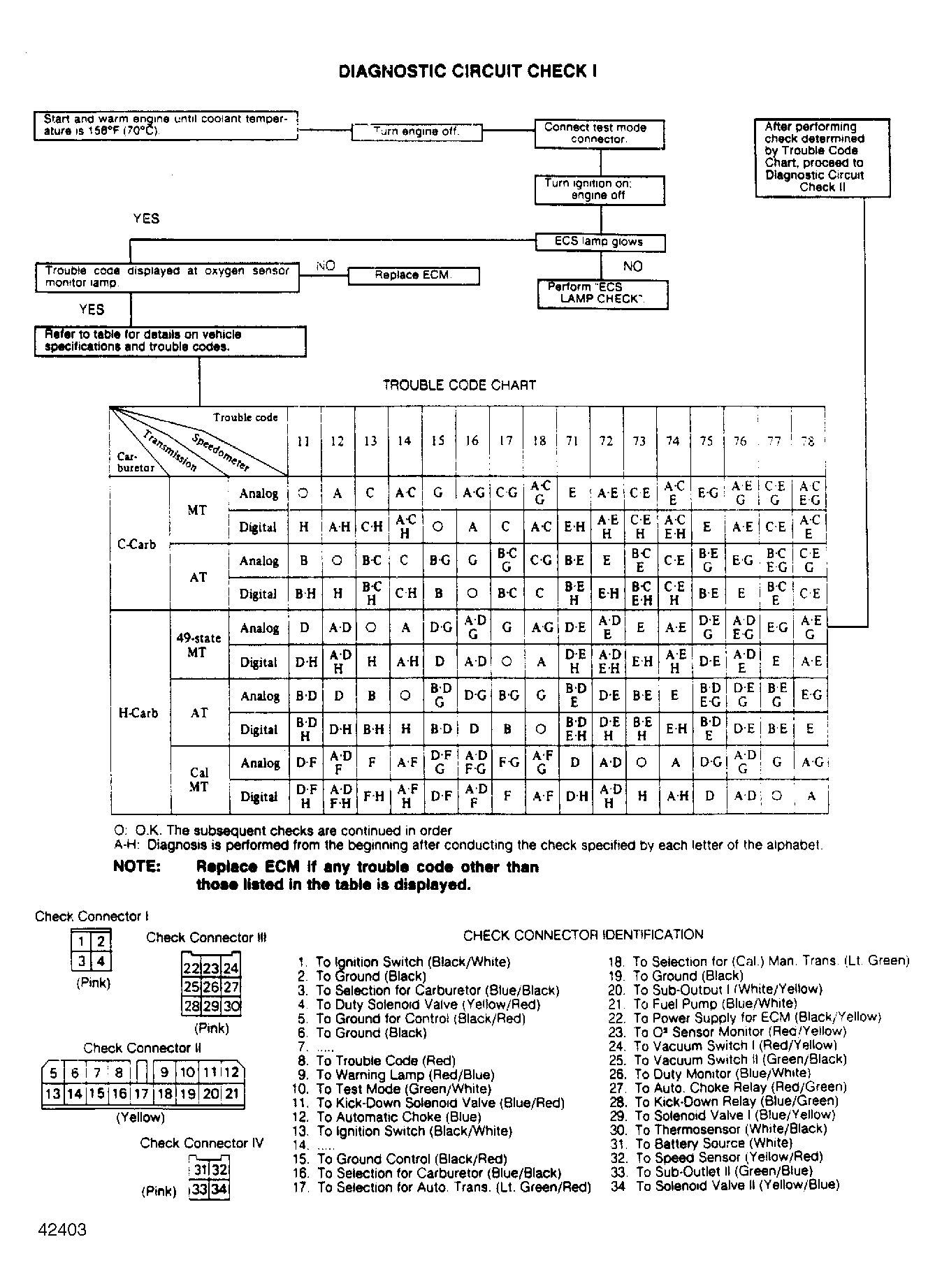

Fig 1: Diagnostic Circuit Check I

G42403
