Fuel Injected Models

Intake manifold vacuum controls the purge control valve on the canister. When the purge control valve is opened, vapor flows from the canister into the throttle body.

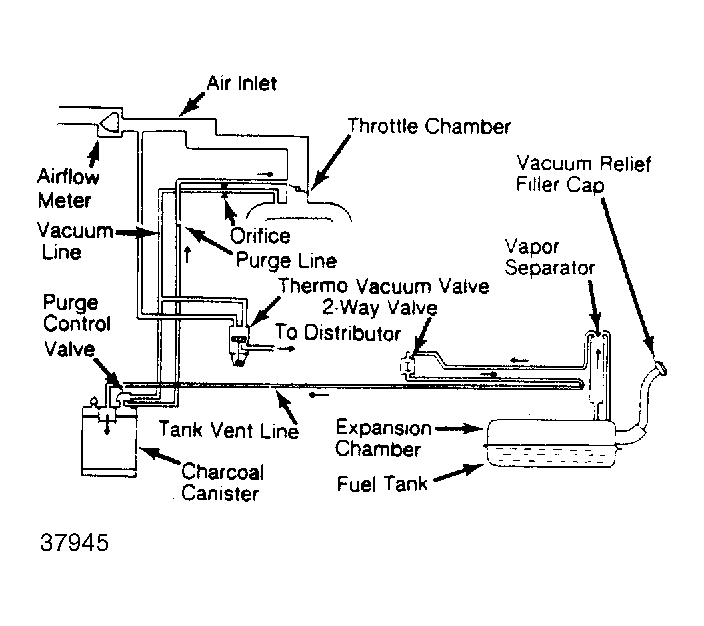

Fig 1: Multi-Point Non-Turbo Fuel Injected Engine Fuel Evap. System
G37945
