Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/T Control Unit (4-sp.) | Behind left rear quarter panel. | |

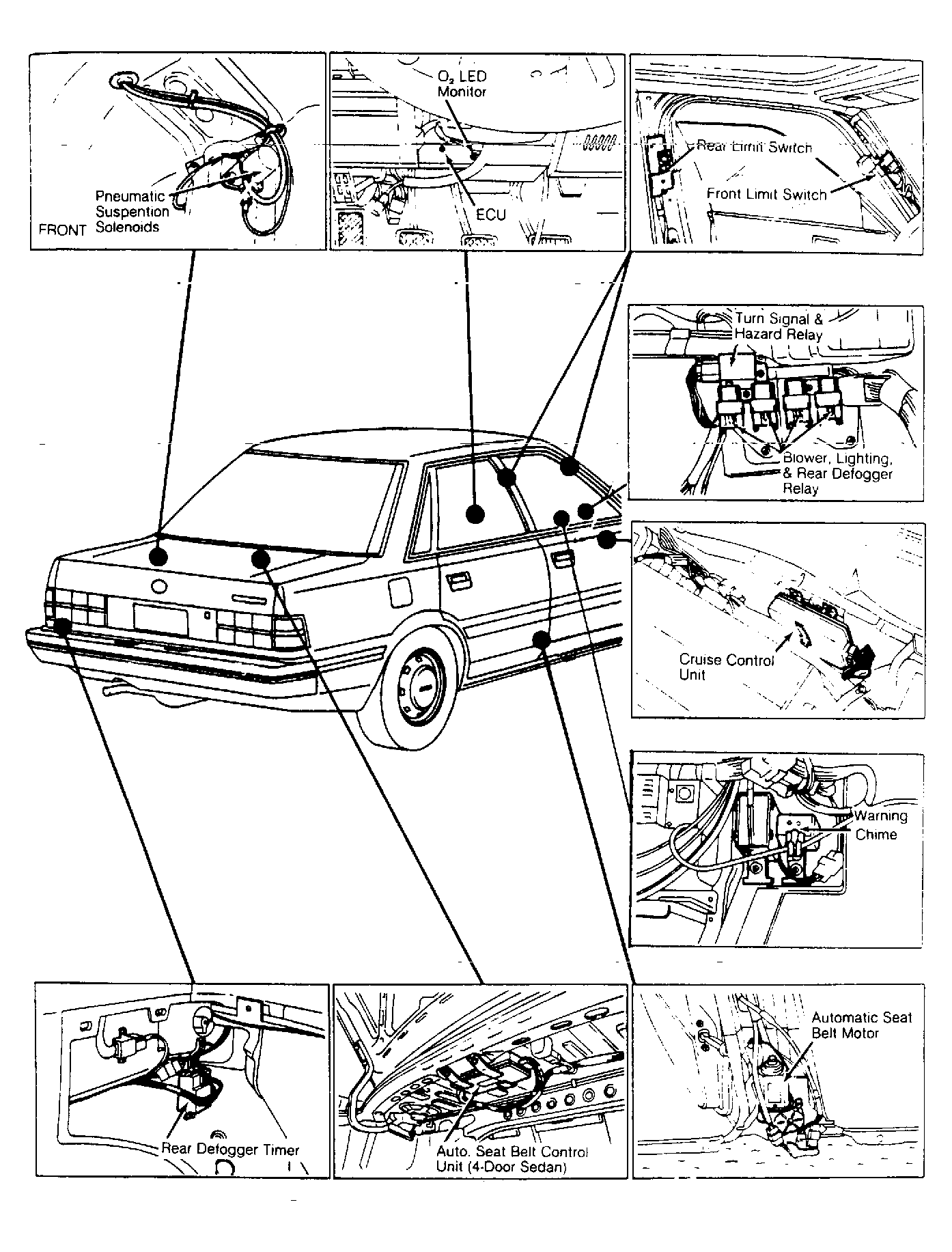

| Automatic Seat Belt Control Unit | ||
| Station Wagon | Inside left rear quarter panel. | |
| 4-Door Sedan | Under rear shelf, inside trunk. See Figure . | |
| Cruise Control Unit | On left side of dash, behind instrument cluster. See Figure . | |
| Electronic Control Unit (ECU) | On left side of dash, below steering column. See Figure . | |
| Intermittent Wiper Control Unit | On left side of dash, below instrument cluster. See Figure . | |
| Pneumatic Suspension Control Unit | Under driver's seat. | |

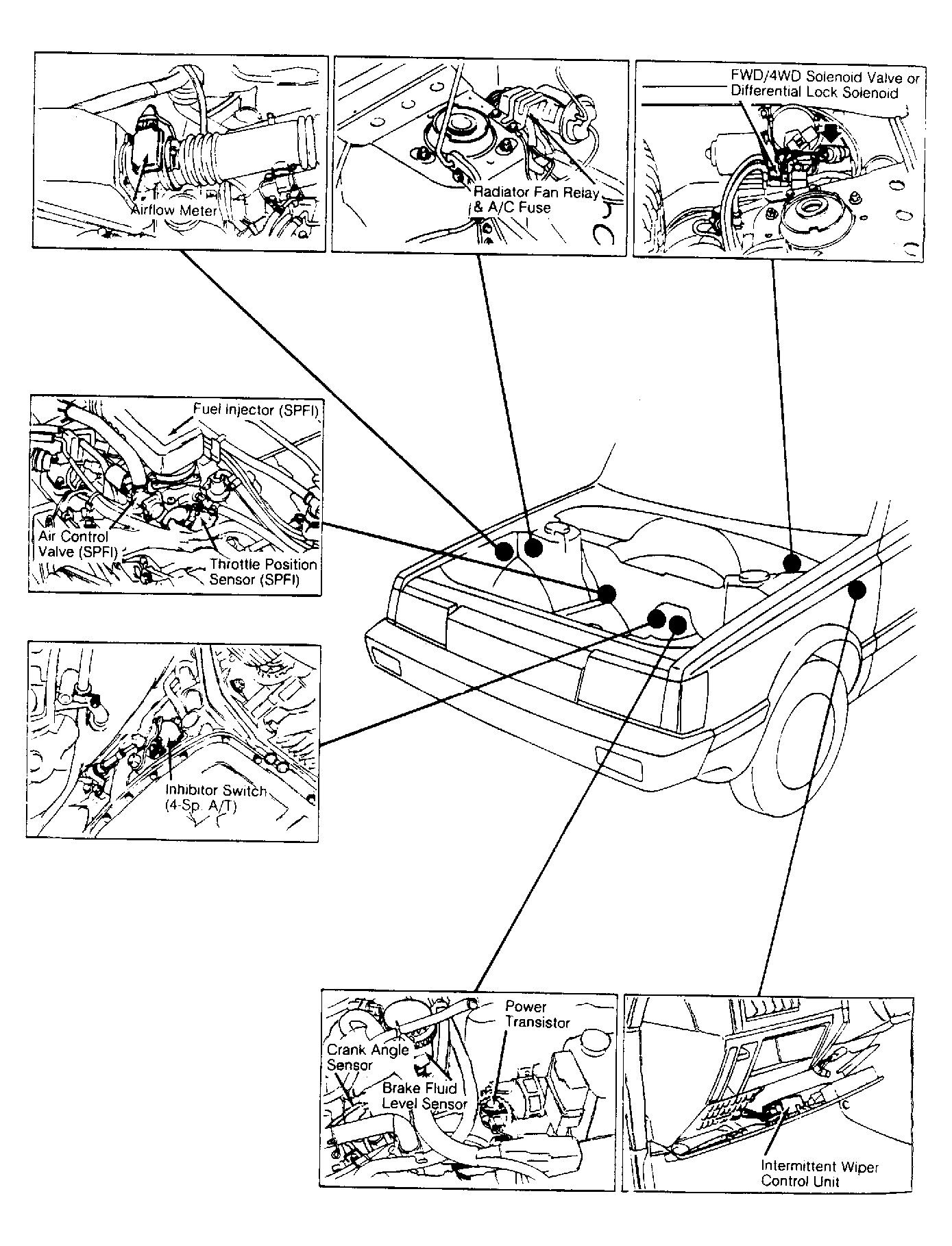

| Power Transistor | On left fender panel, under ignition coil. See Figure . | |
| Power Window Control Unit | Under front passenger's seat. | |
