Home >> Subaru >> 1989 >> RX Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes - MPFI >> Code Charts >> Code 11

Code 11

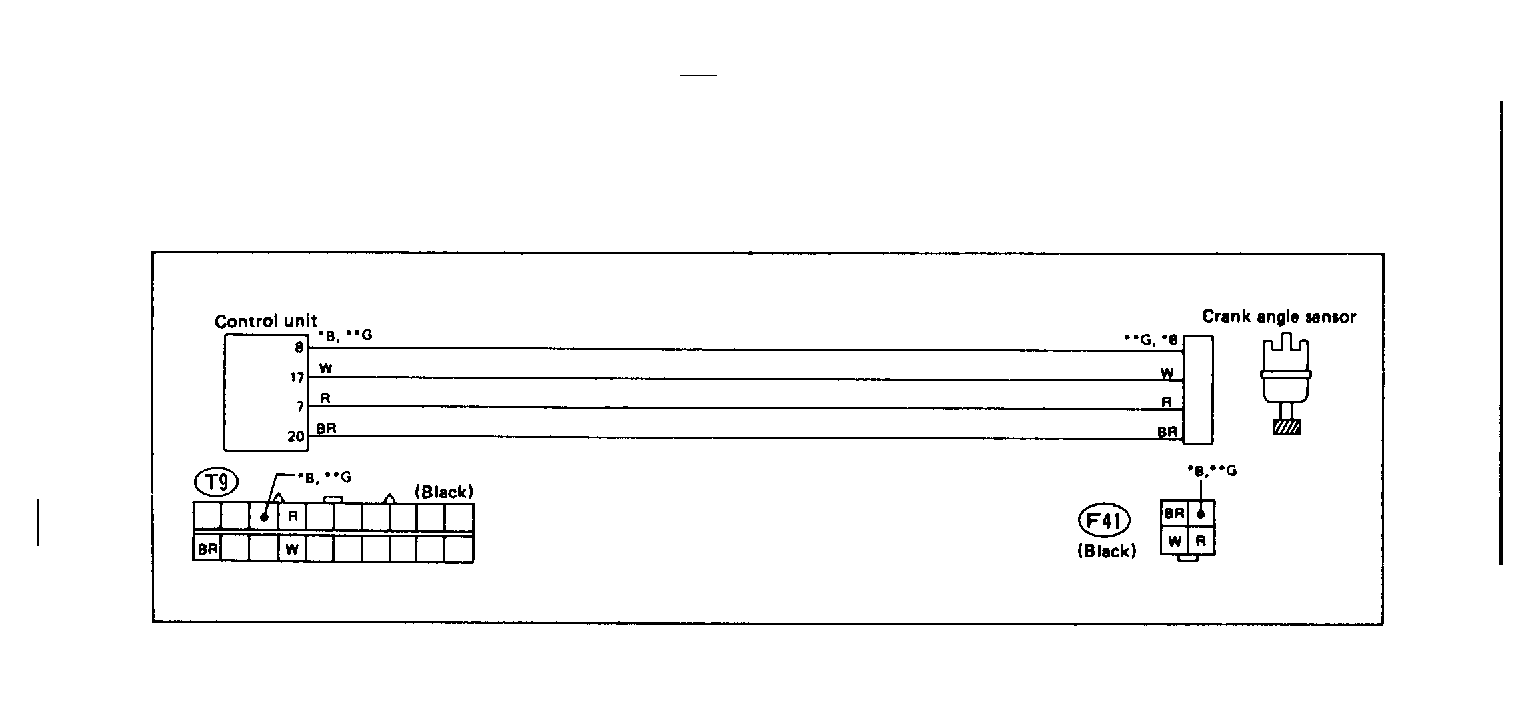

Fig 1: Trouble Code 11: Crank Angle Sensor - Wiring Diagram
G118380Courtesy of SUBARU OF AMERICA, INC.

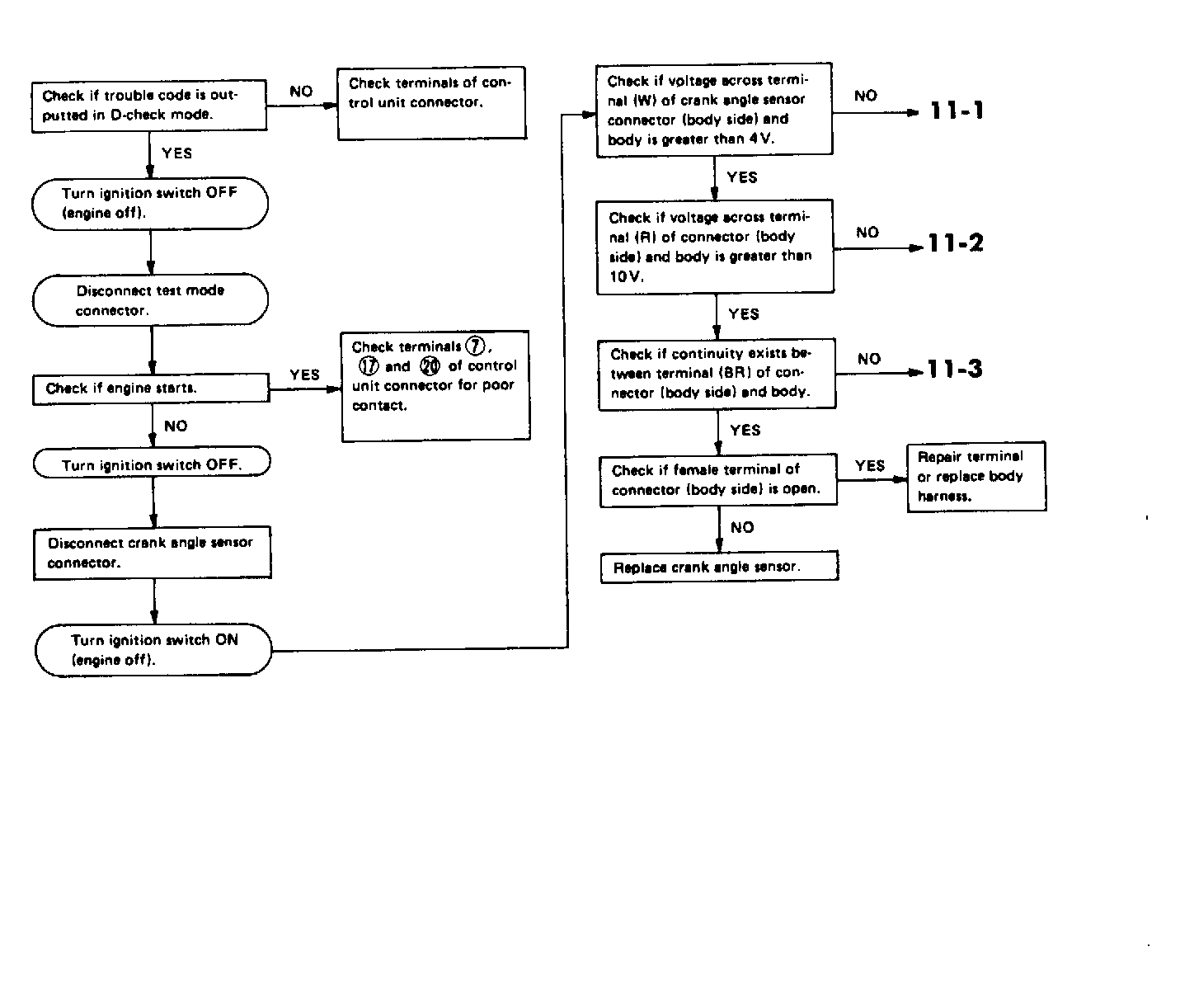

Fig 2: Trouble Code 11: Crank Angle Sensor - Flow Chart (1 of 2)
G121902Courtesy of SUBARU OF AMERICA, INC.

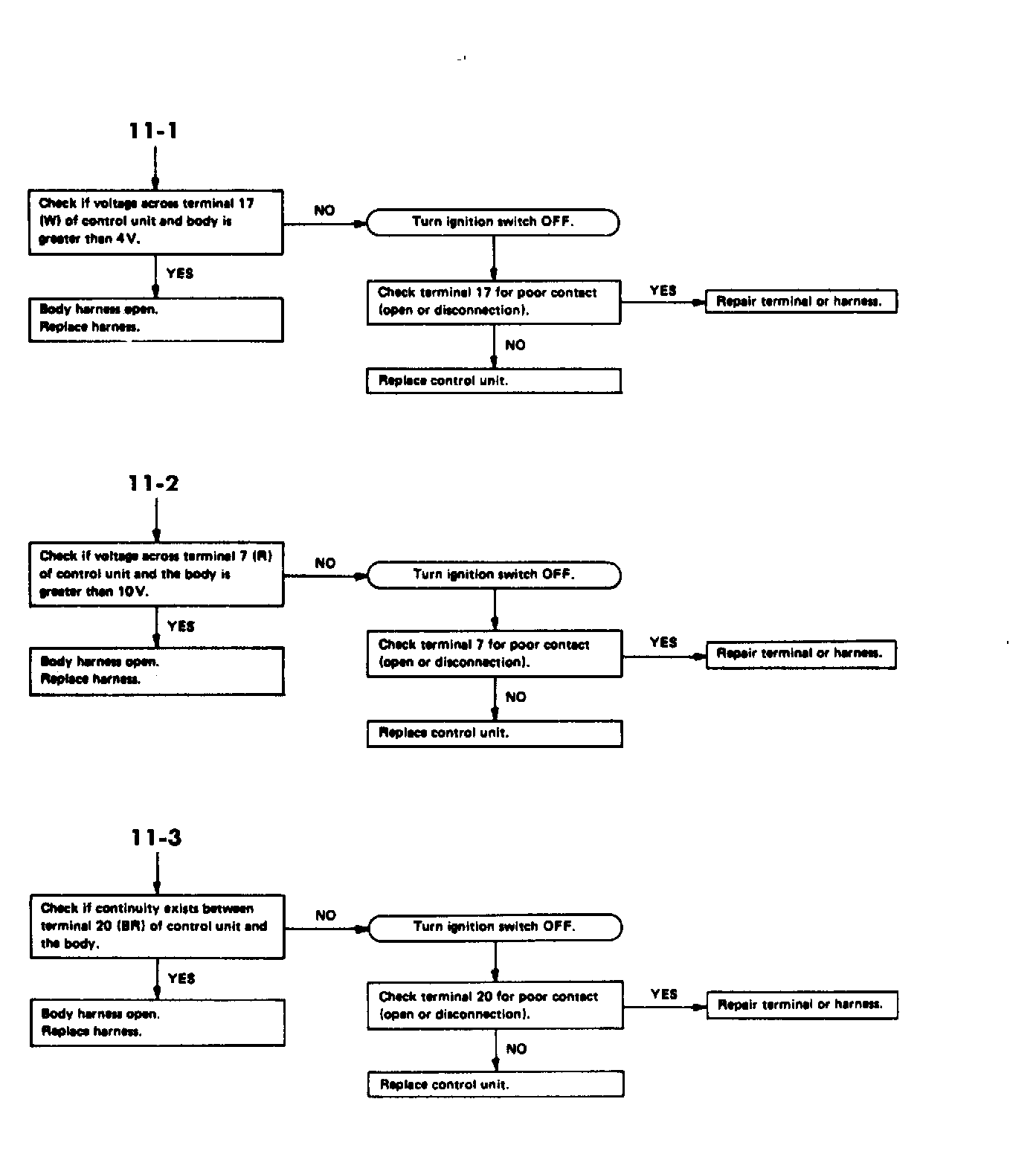

Fig 3: Trouble Code 11: Crank Angle Sensor - Flow Chart (2 of 2)
G118381Courtesy of SUBARU OF AMERICA, INC.
