Code 31

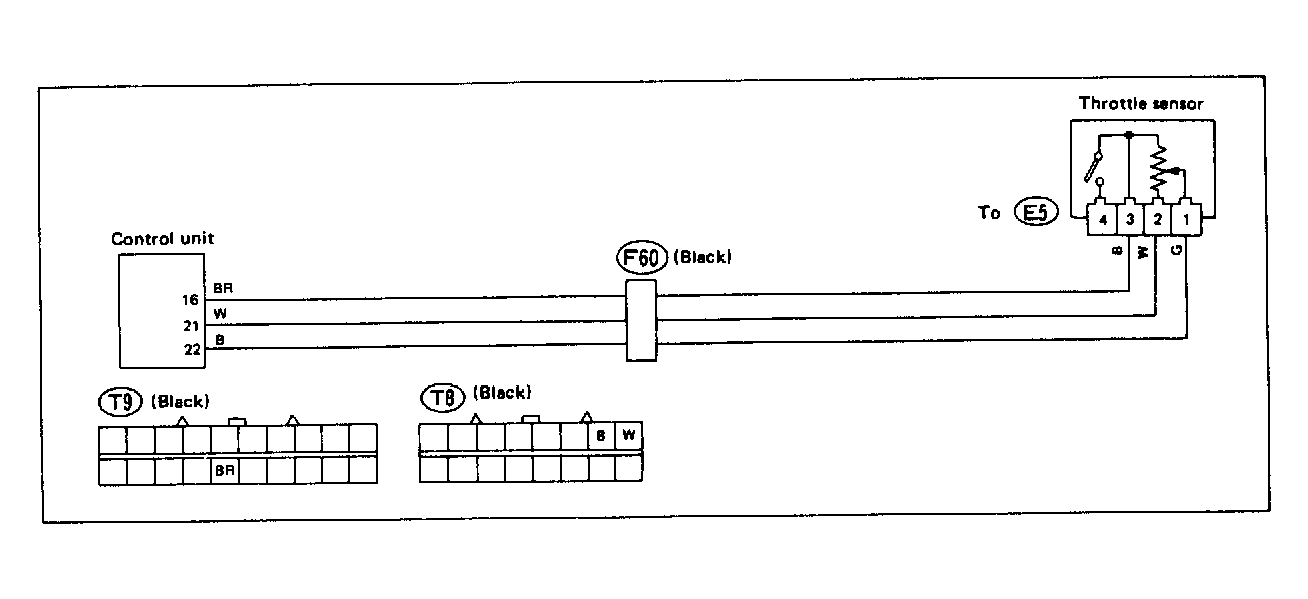

Fig 1: Trouble Code 31: Throttle Sensor 1.8L Motor - Wiring Diagram
G118394Courtesy of SUBARU OF AMERICA, INC.

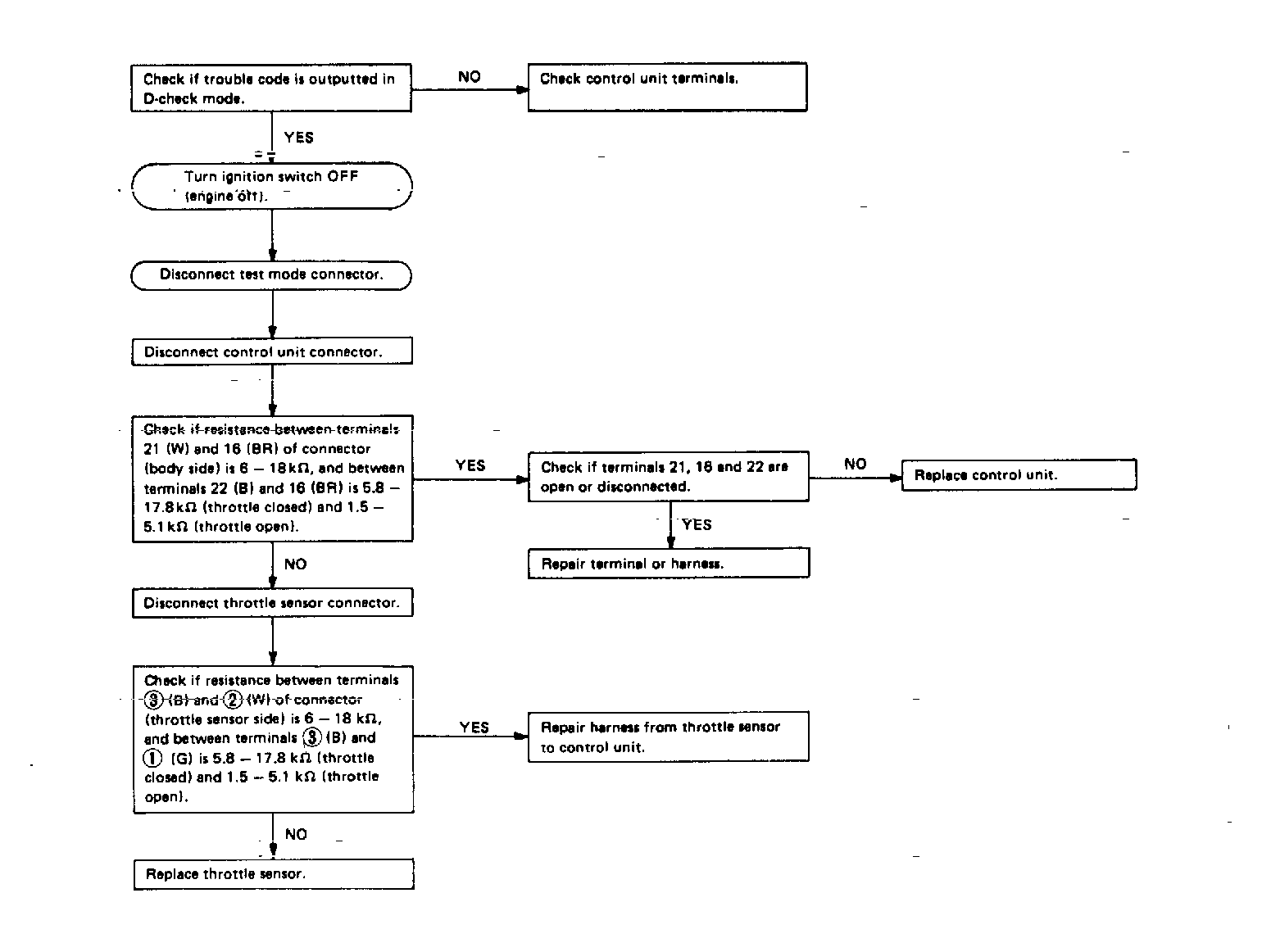

Fig 2: Trouble Code 31: Throttle Sensor 1.8L Motor - Flow Chart
G121914Courtesy of SUBARU OF AMERICA, INC.

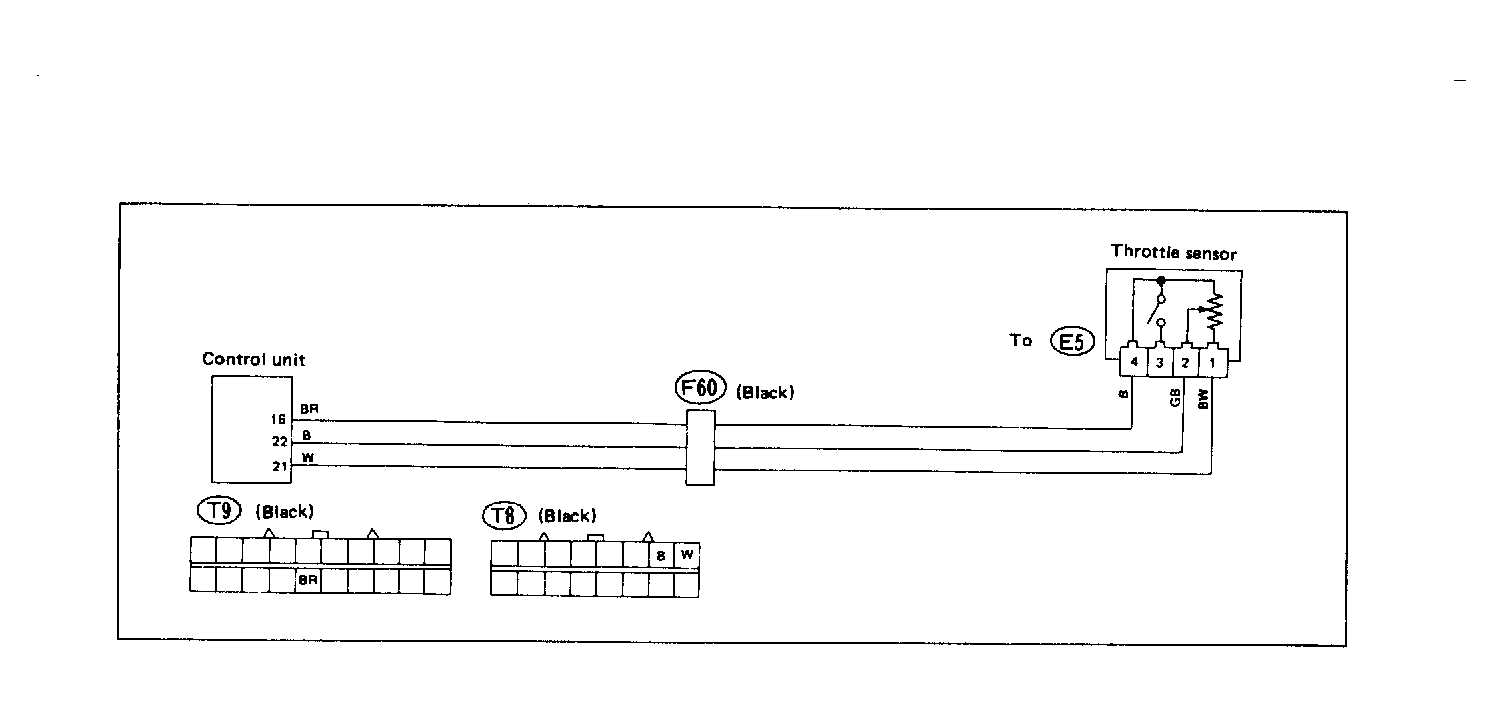

Fig 3: Trouble Code 31: Throttle Sensor 2.7L Motor - Wiring Diagram
G118395Courtesy of SUBARU OF AMERICA, INC.

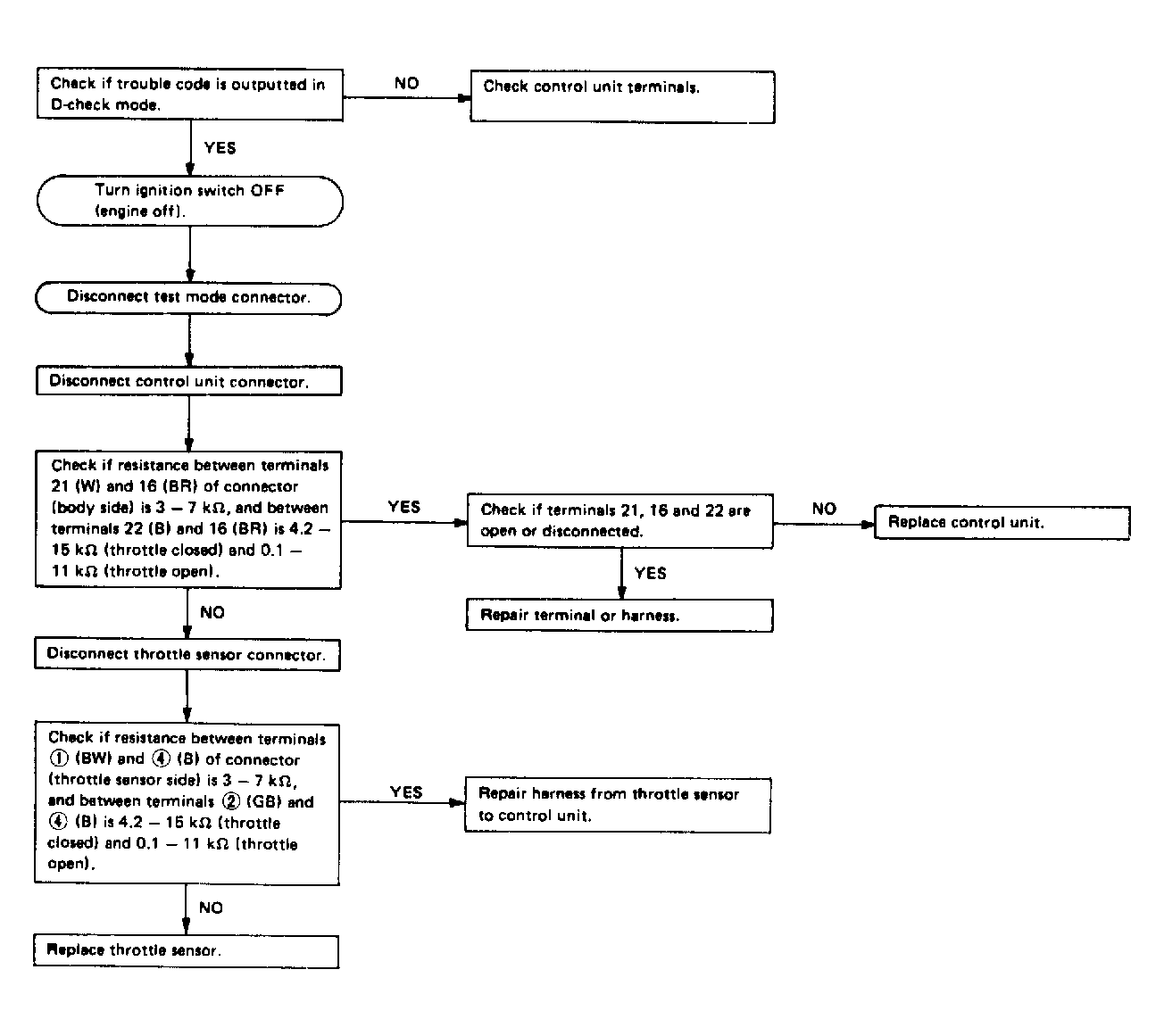

Fig 4: Trouble Code 31: Throttle Sensor 2.7L Motor - Flow Chart
G121915Courtesy of SUBARU OF AMERICA, INC.
