Code 32
Code 32

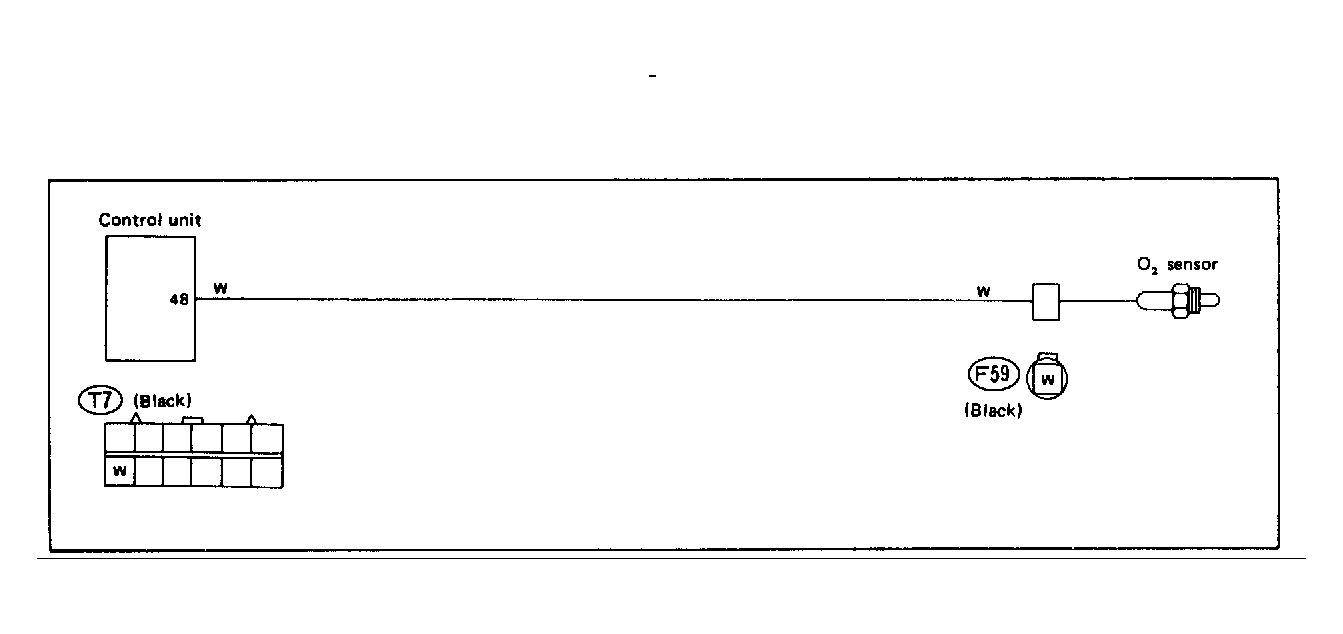

Fig 1: Trouble Code 32: O2 Sensor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

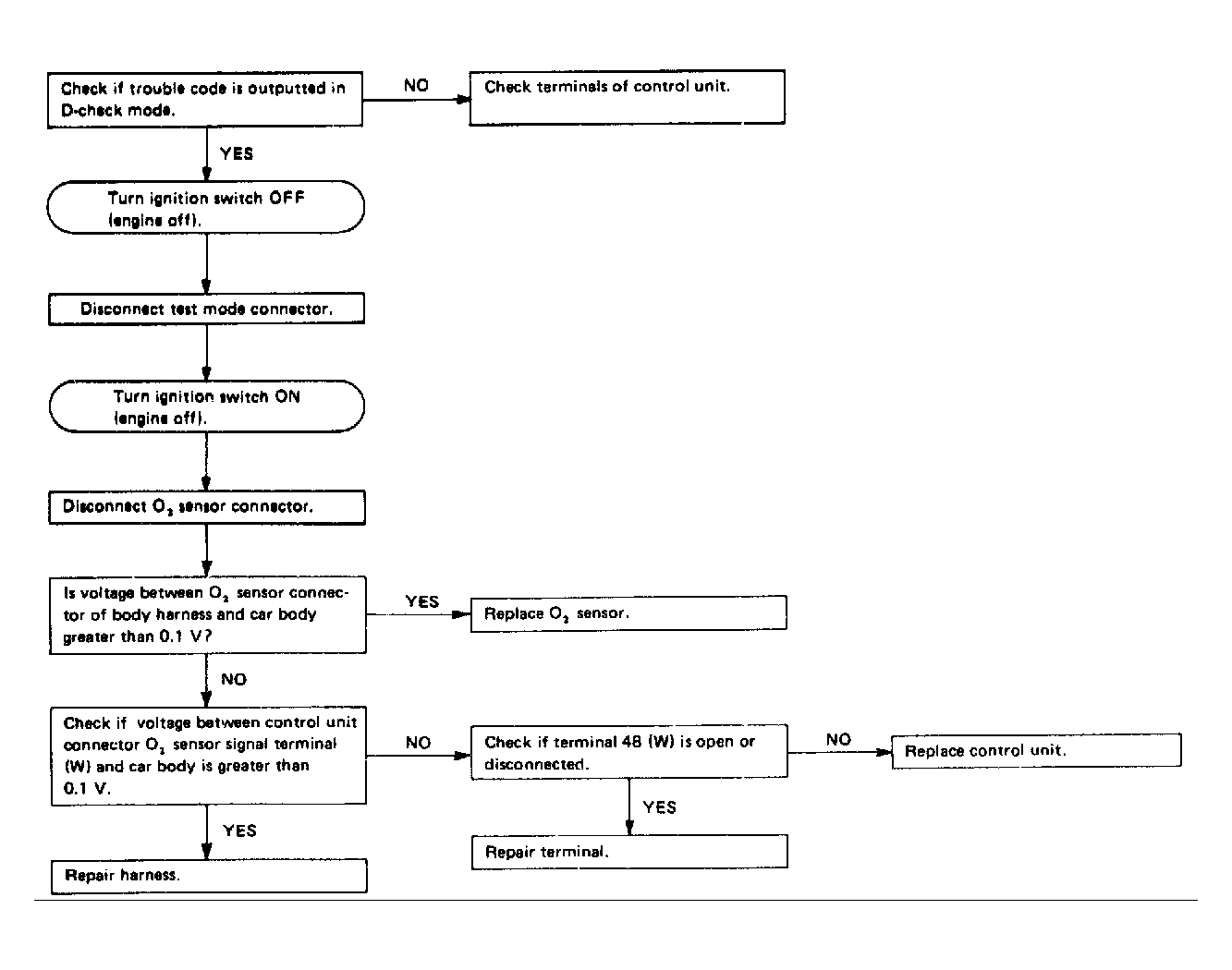

Fig 2: Trouble Code 32: O2 Sensor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
