Code 51
Code 51

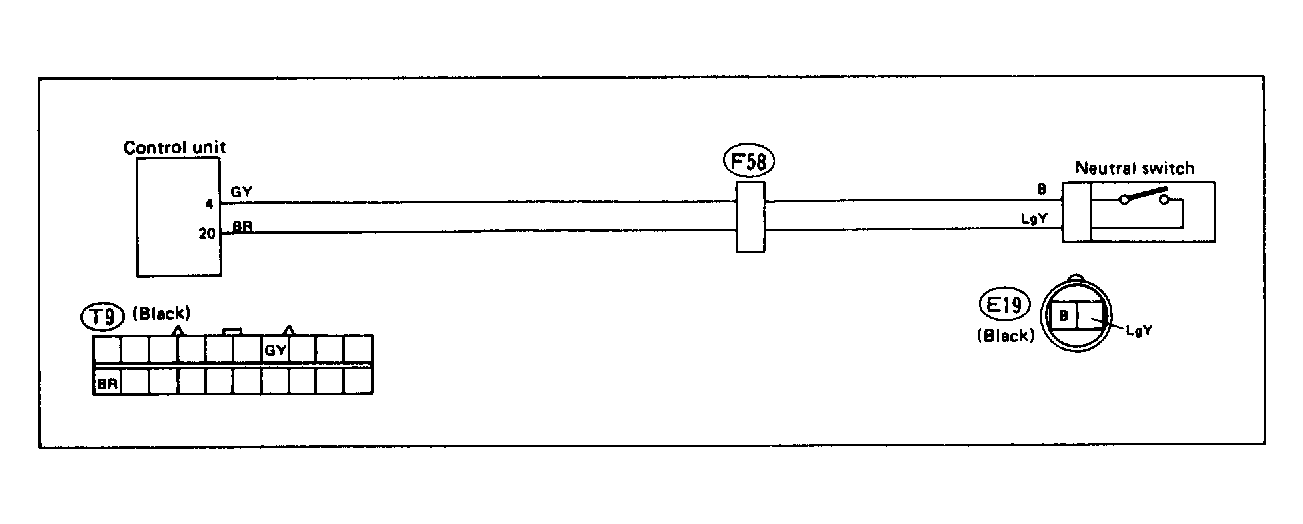

Fig 1: Trouble Code 51: Neutral Switch (M/T) - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

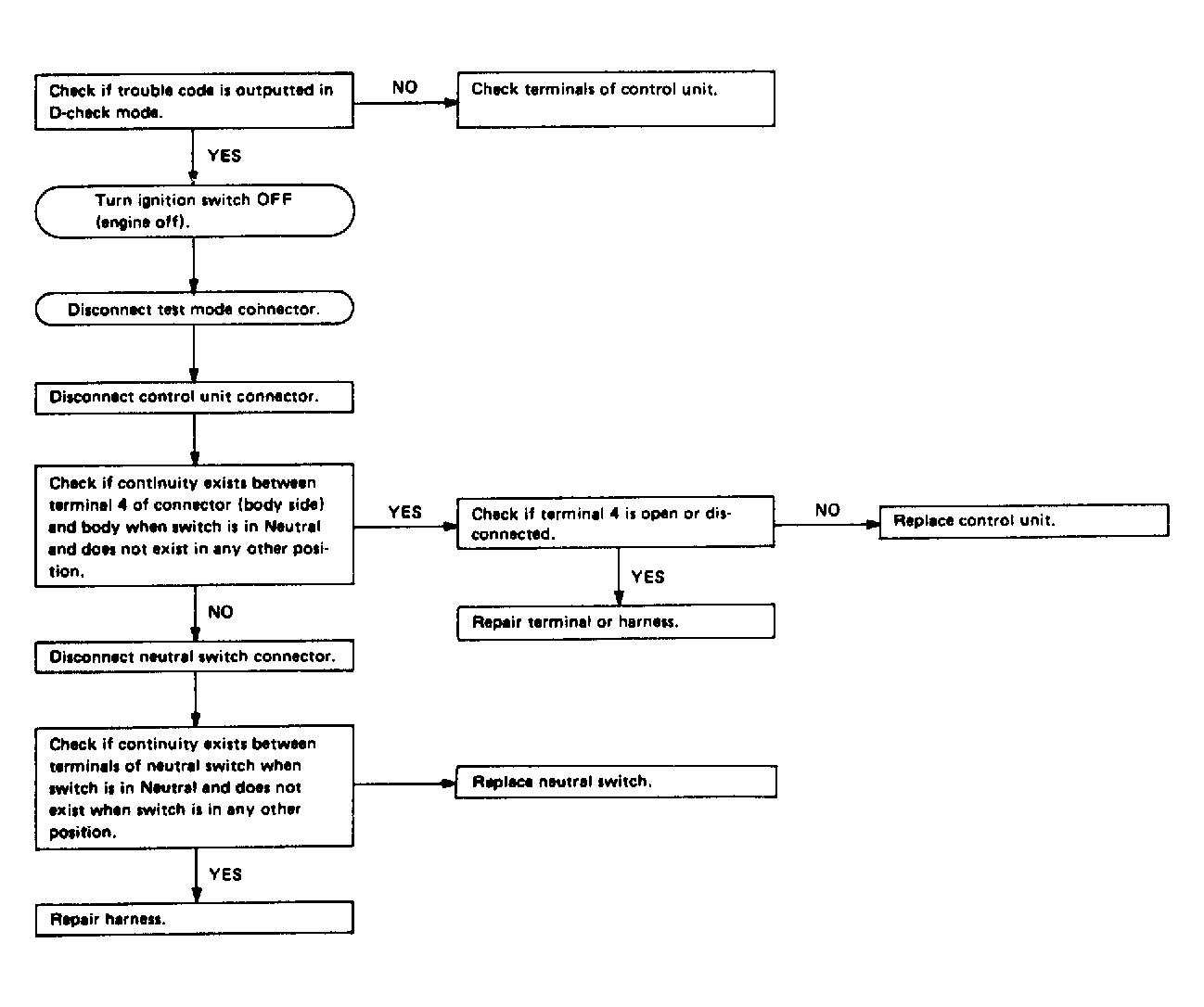

Fig 2: Trouble Code 51: Neutral Switch (M/T) - Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
