Tests W/Codes - SPFI
>>
Diagnostic Testing
>>
Code 12
Code 12

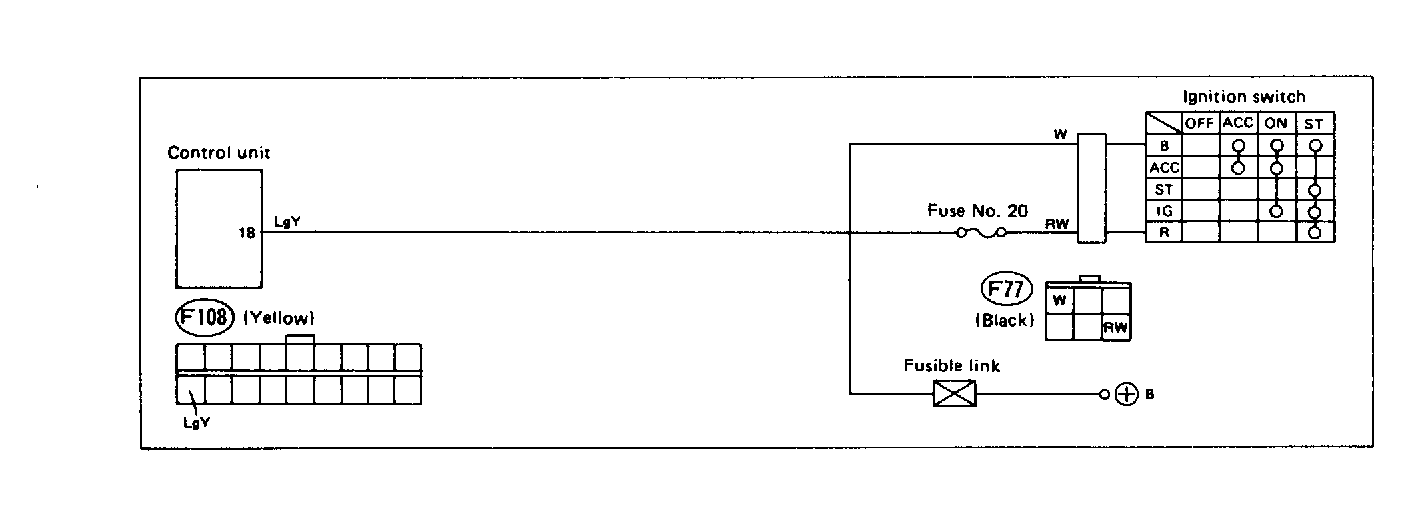

Fig 1: Trouble Code 12: Starter Switch - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

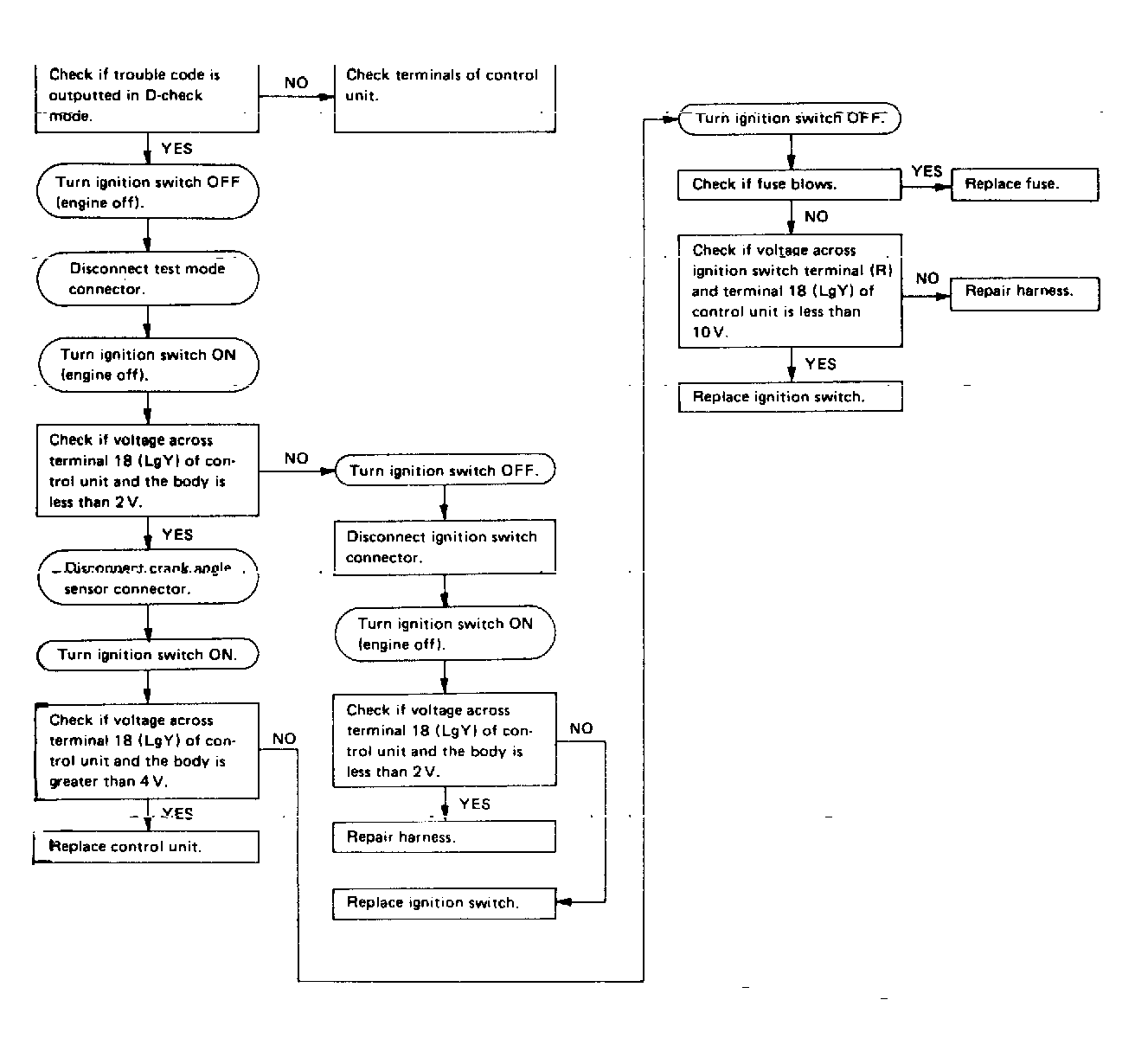

Fig 2: Trouble Code 12: Starter Switch - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
