Tests W/Codes - SPFI
>>
Diagnostic Testing
>>
Code 31
Code 31
Fig 1: Trouble Code 31: Throttle Sensor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

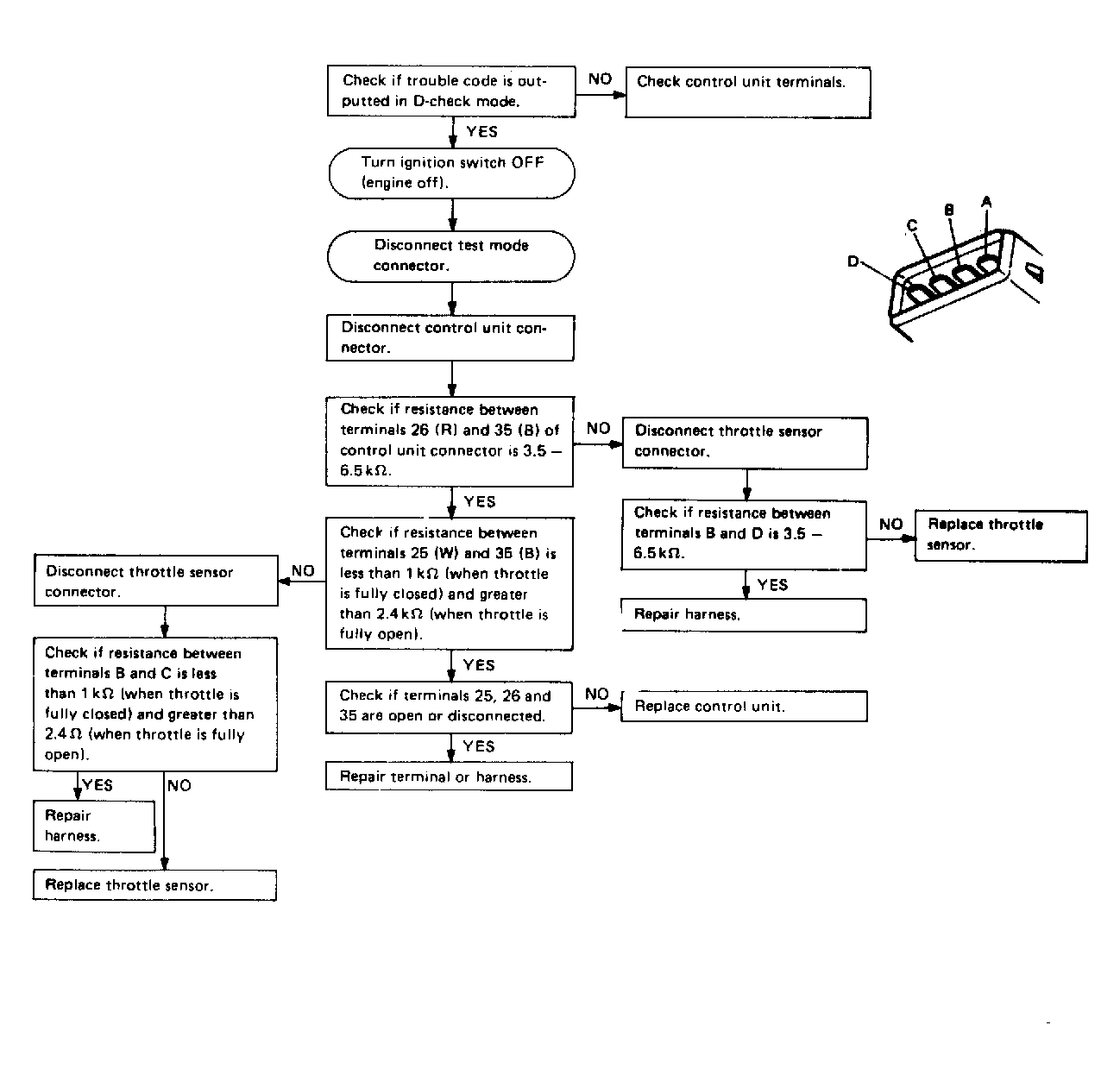

Fig 2: Trouble Code 31: Throttle Sensor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
