Tests W/Codes - SPFI
>>
Diagnostic Testing
>>
Code 61
Code 61

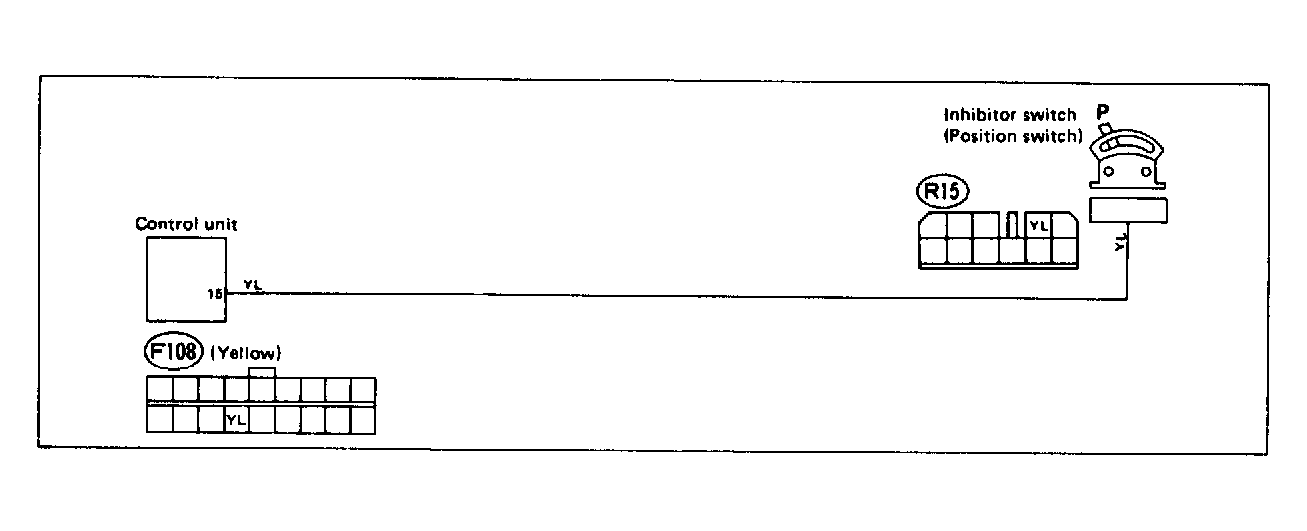

Fig 1: Trouble Code 61: Parking Switch (A/T) - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

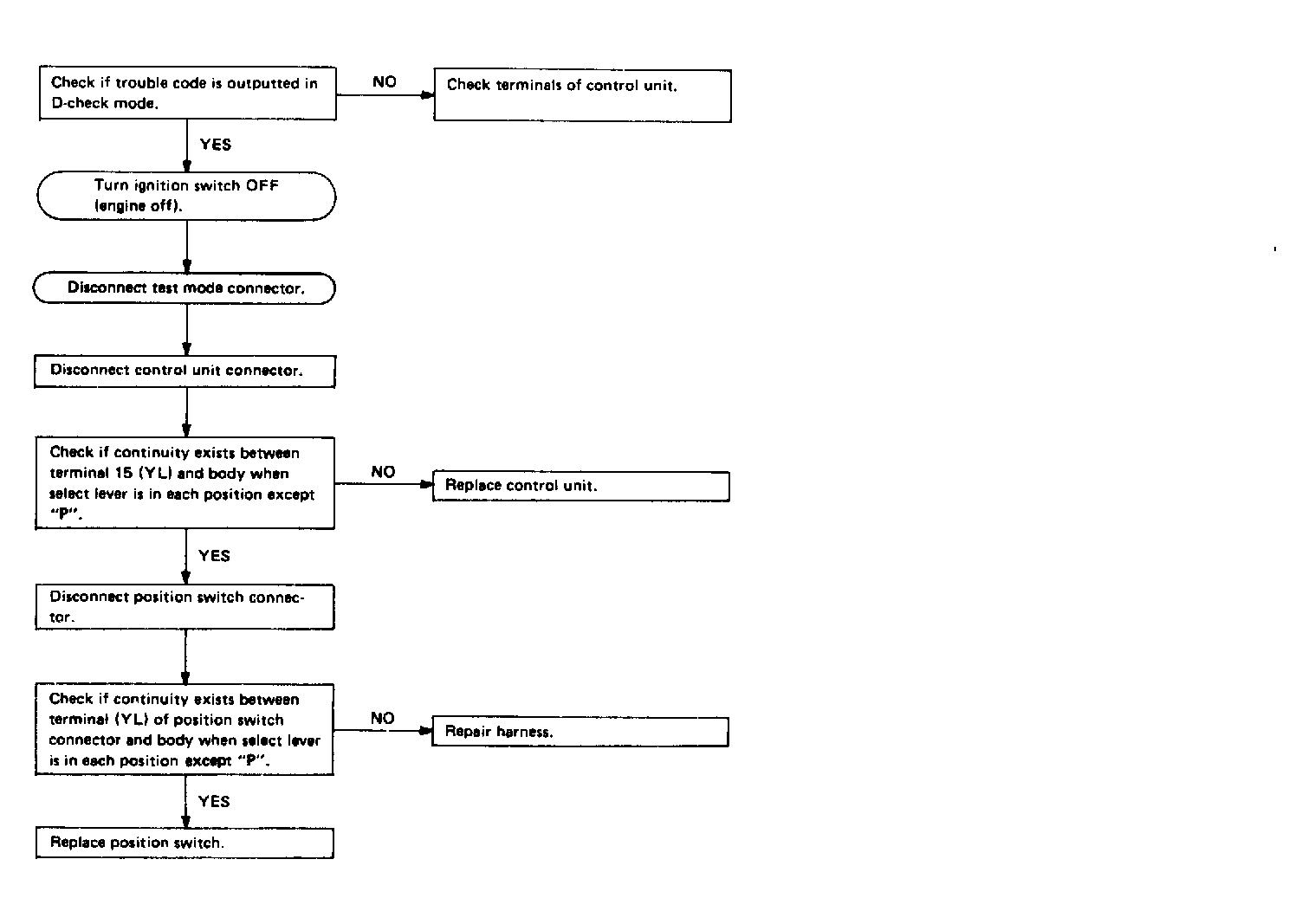

Fig 2: Trouble Code 61: Parking Switch (A/T) - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
