Code 33: Speed Sensor
Code 33: Speed Sensor

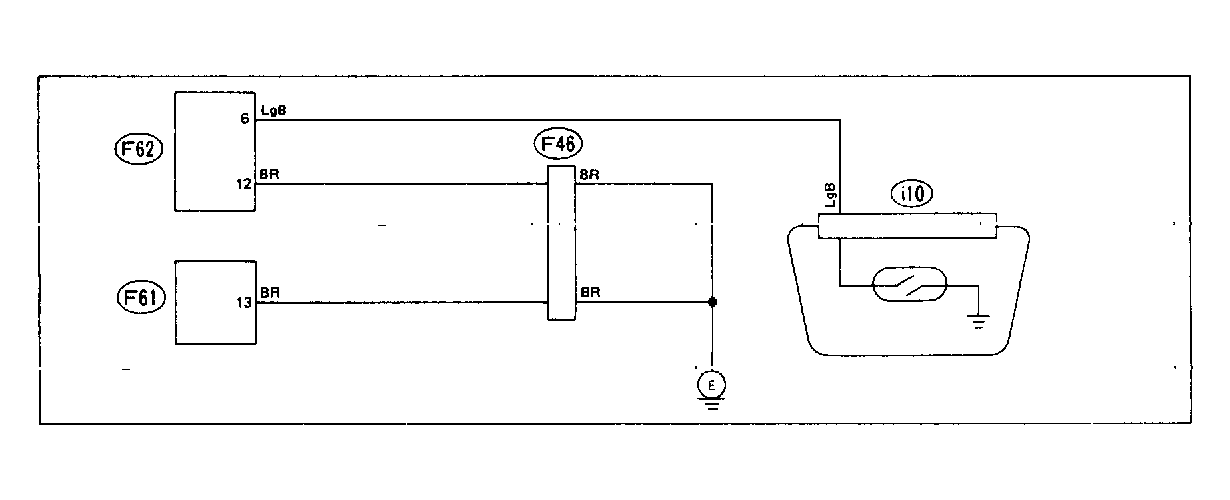

Fig 1: Wiring Schematic - Code 33: Car Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.

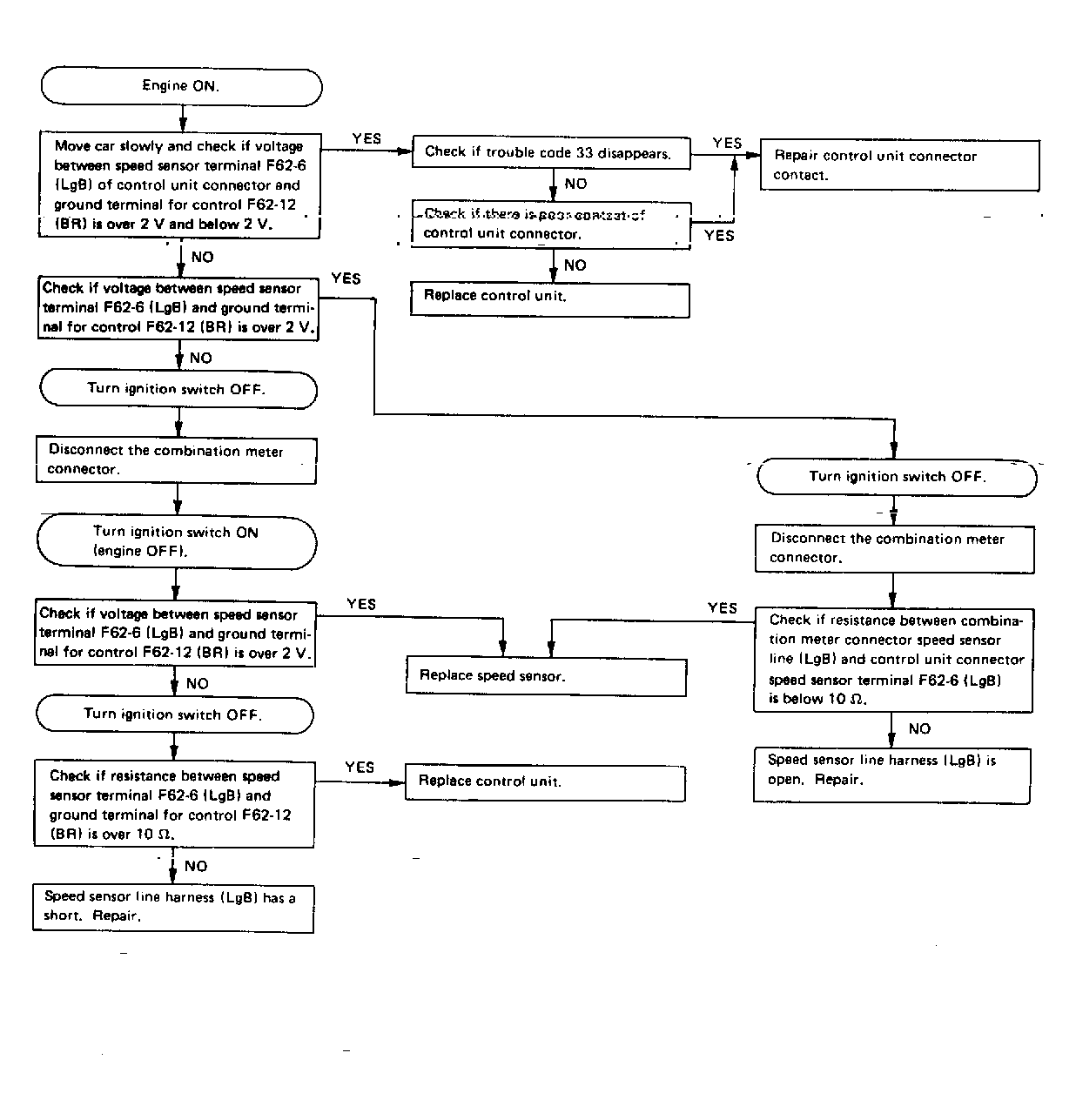

Fig 2: Flow Chart - Code 33: Car Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
