Home >> Subaru >> 1991 >> Justy Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - PFI >> Diagnostic Code Chart >> Code 13: TDC Sensor

Code 13: TDC Sensor

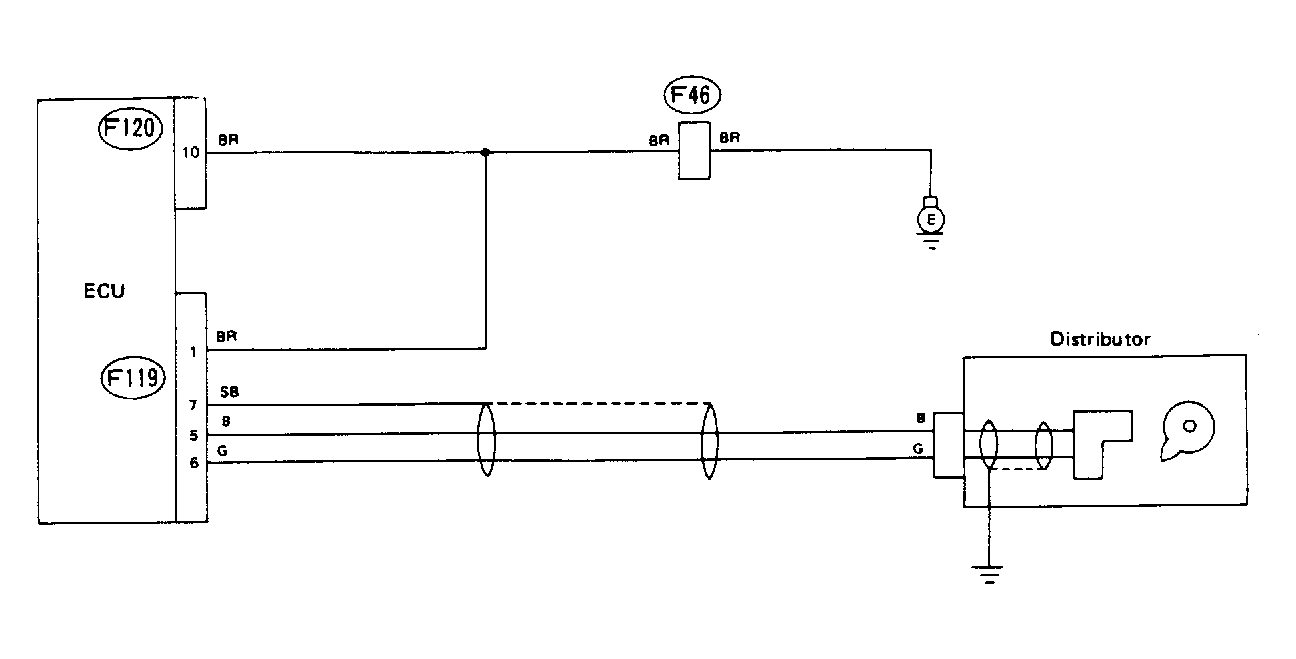

Fig 1: Schematic - Code 13, TDC Sensor

G91J18332

Fig 2: Flow Chart - Code 13, TDC Sensor

G90B18771
