Code 33: Vehicle Speed Sensor

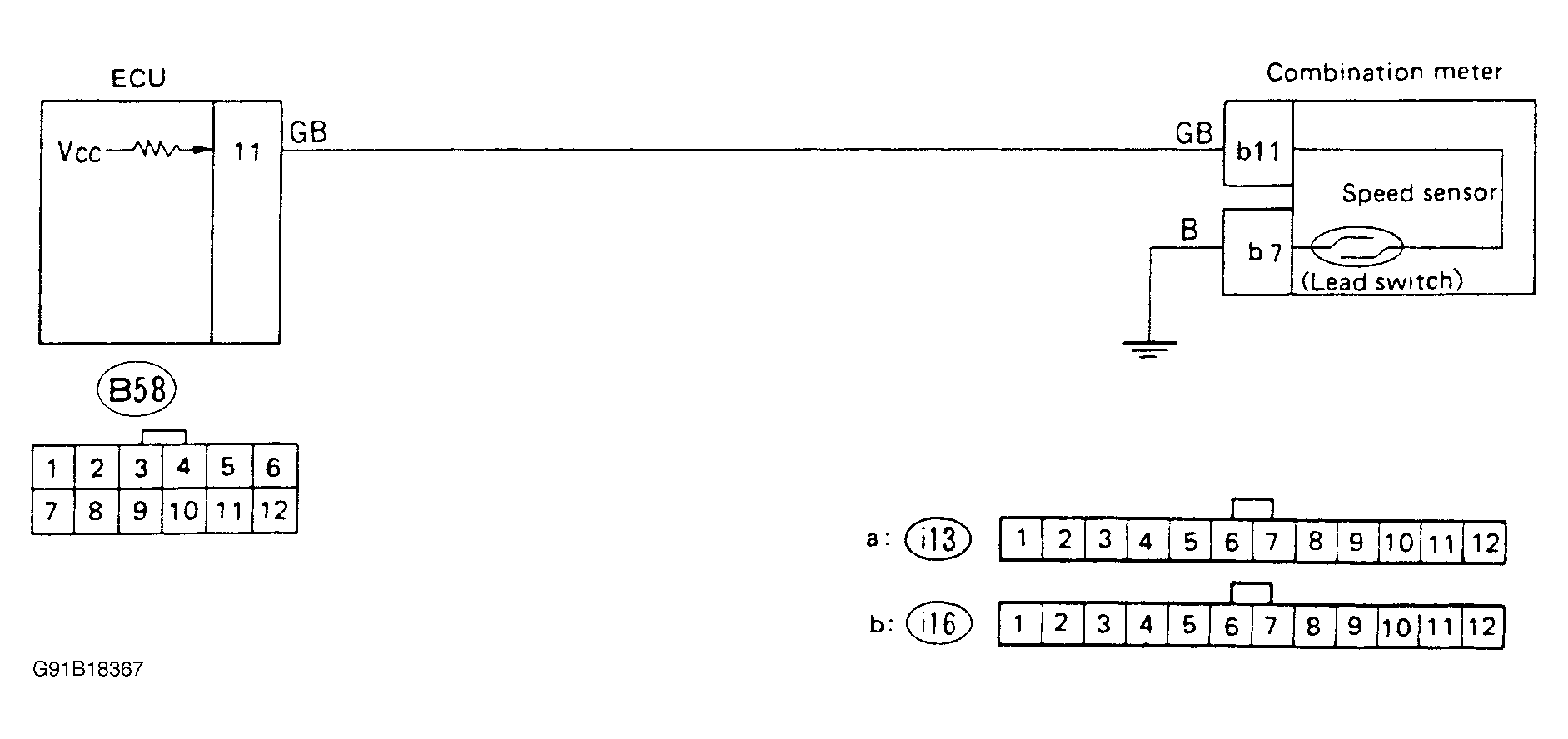

Fig 1: Schematic - Code 33, Vehicle Speed Sensor
G91B18367

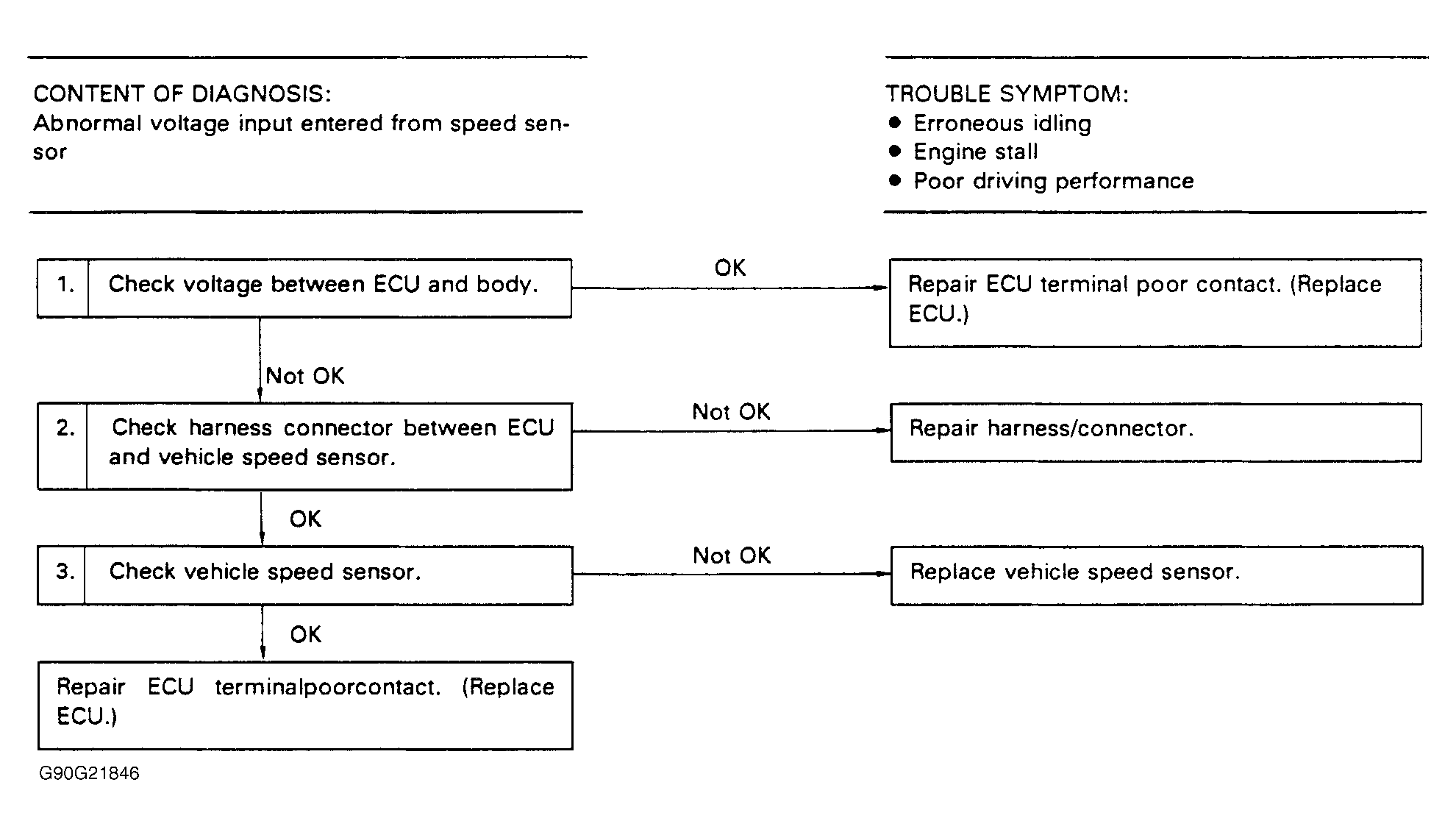

Fig 2: Flow Chart - Code 33, Vehicle Speed Sensor
G90G21846

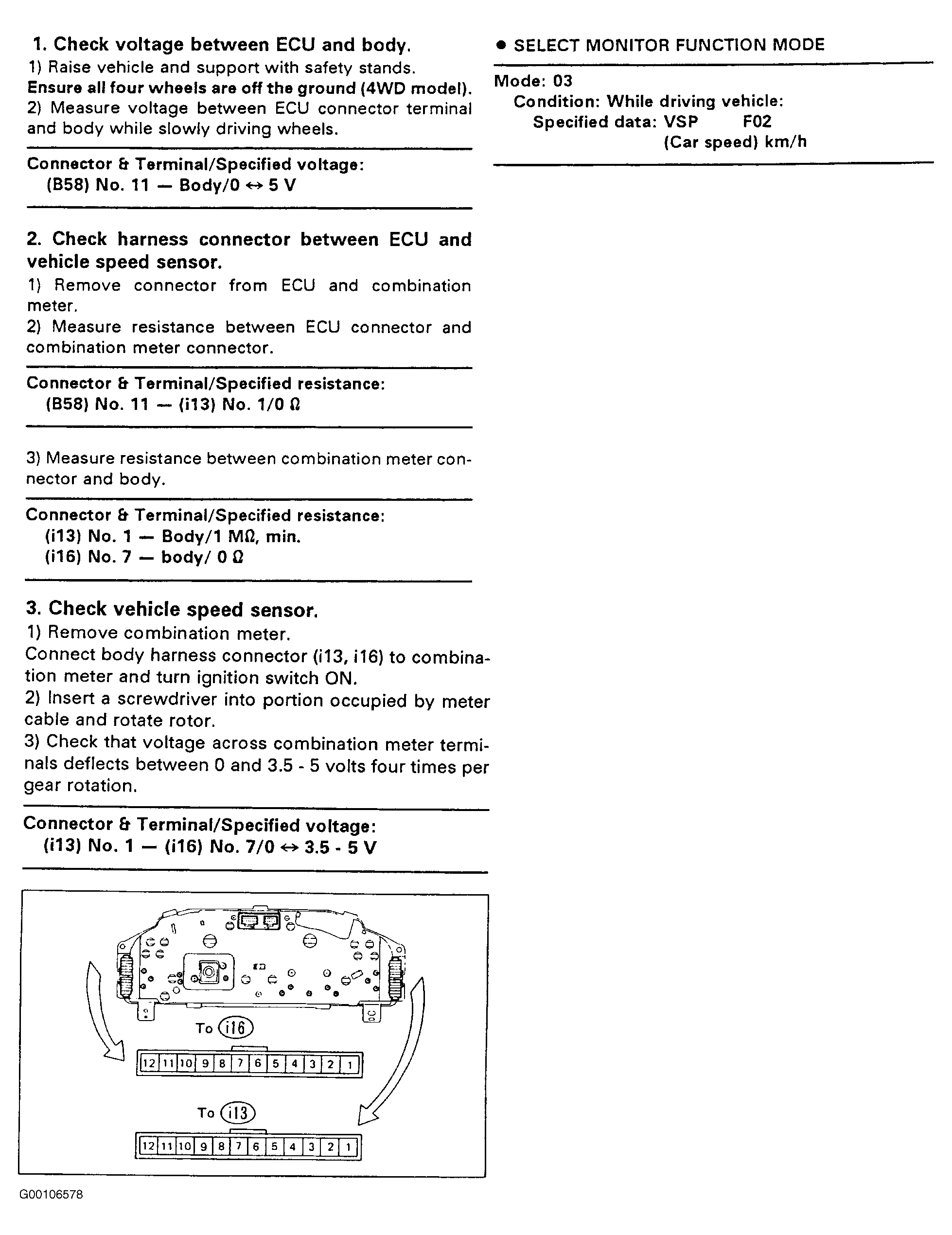

Fig 3: Code 33, Flow Chart Diagnostic Aids
G00106578Courtesy of SUBARU OF AMERICA, INC.
