Power Mirror Switch Test: SVX

Pry mirror switch from instrument panel using a small screwdriver. Disconnect switch connector. Check continuity between specified terminals of switch connector with switch button in specified position. See appropriate chassis wiring diagram in WIRING DIAGRAMS. SeeFig 1. Replace switch if continuity is not as specified.

POWER MIRROR SWITCH CONTINUITY TEST

Application

Terminals

Legacy & SVX ⁽¹⁾

Left Mirror

4 & 7, 10 & 11

Down

4 & 10, 7 & 11

Left

2 & 4, 10 & 11

Right

4 & 10, 2 & 11

Right Mirror

4 & 6, 10 & 11

Down

4 & 10, 6 & 11

Left

1 & 4, 10 & 11

Right

4 & 10, 1 & 11

XT & XT6 ⁽²⁾

Left Mirror

1 & 8, 4 & 2

Down

1 & 4, 8 & 2

Left

1 & 3, 7 & 2

Right

1 & 7, 3 & 2

Up/Left Diagonally

1, 3 & 8; 4, 7 & 2

Down/Left Diagonally

1, 3 & 4; 7, 8 & 2

Up/Right Diagonally

1, 7 & 8; 3, 8 & 2

Down/Right Diagonally

1, 4 & 7; 3, 8 & 2

Right Mirror

1 & 6, 4 & 2

Down

1 & 4, 6 & 2

Left

1 & 3, 5 7 2

Right

1 & 5, 3 & 2

Up/Left Diagonally

1, 3 & 6; 4, 5 & 2

Down/Left Diagonally

1, 3 & 4; 5, 6 & 2

Up/Right Diagonally

1, 5 & 6; 3, 4 & 2

Down/Right Diagonally

1, 4 & 5; 3, 6 & 2

⁽¹⁾	Legacy connector terminal No. 11 is ground.

⁽²⁾	XT connector terminal No. 2 is ground.

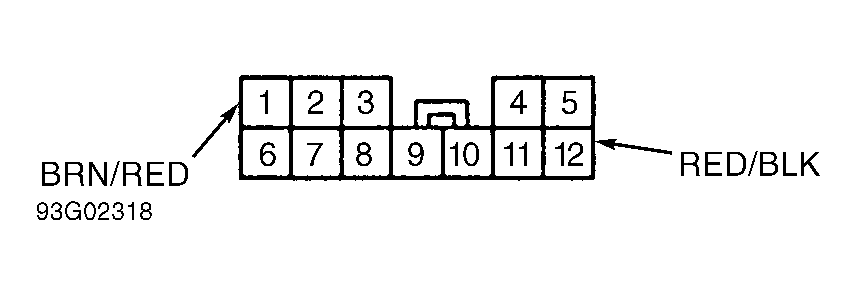

Fig 1: Mirror Switch Connector Terminal ID (SVX)

Courtesy of SUBARU OF AMERICA, INC.
