Justy (Rear)

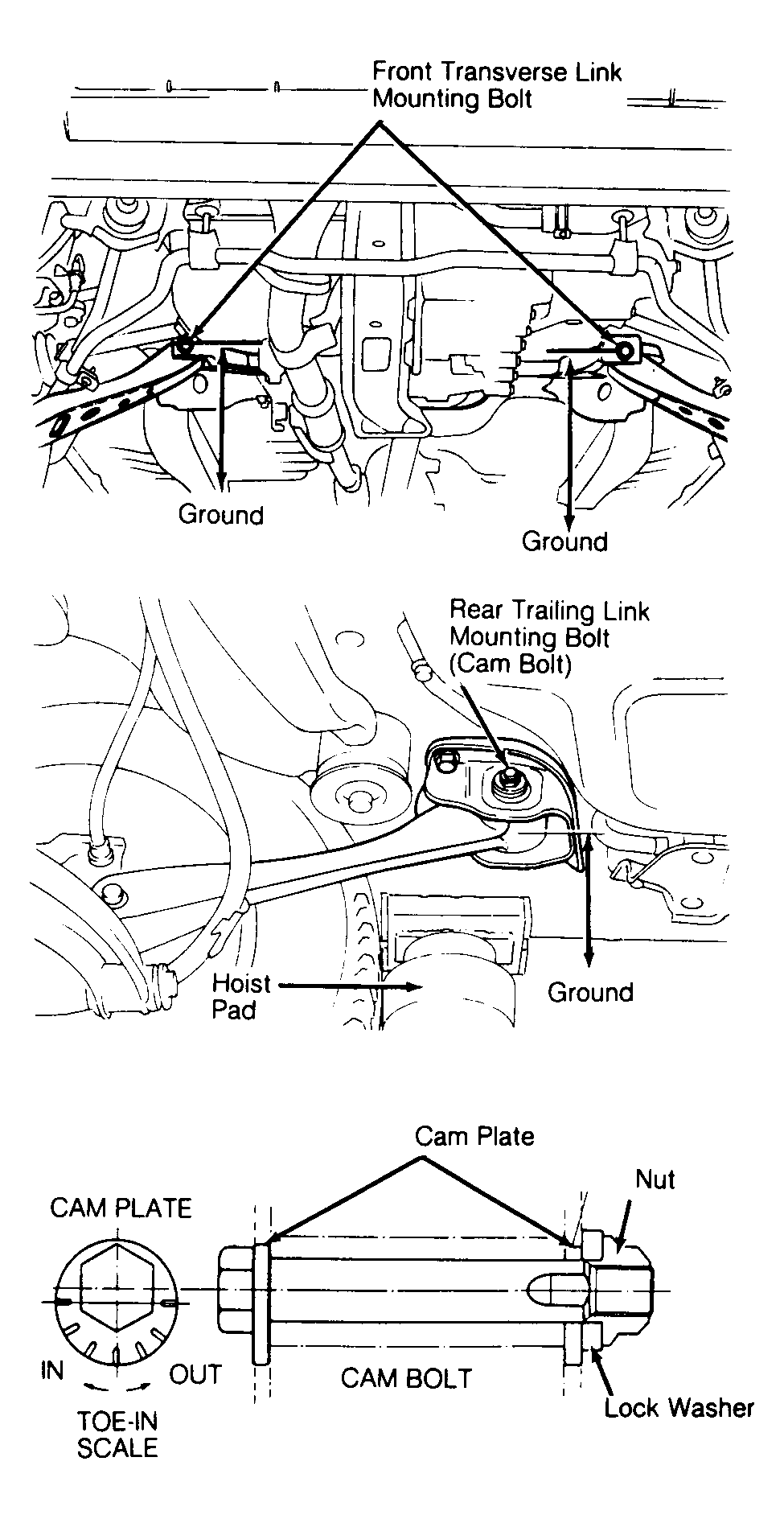

  1. Ensure tires are inflated to specification. Ensure riding height and normal riding load are set. Release parking brake. Loosen trailing arm cam bolt one turn. See Figure.
  2. Turn cam bolt 2 scale notches in opposite direction of required adjustment in order to remove any free play. Slowly turn cam bolt back in adjusting direction until correct toe-in specification is achieved. Tighten cam bolt to 43-51 ft. lbs. (59-69 N.m).
