lemon-mirror
:
Home
>>
Subaru
>>
1992
>>
Justy Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - CARBURETED
>>
Diagnostic Code Charts
>>
Code 32: Oxygen (O2) Sensor
Code 32: Oxygen (O2) Sensor

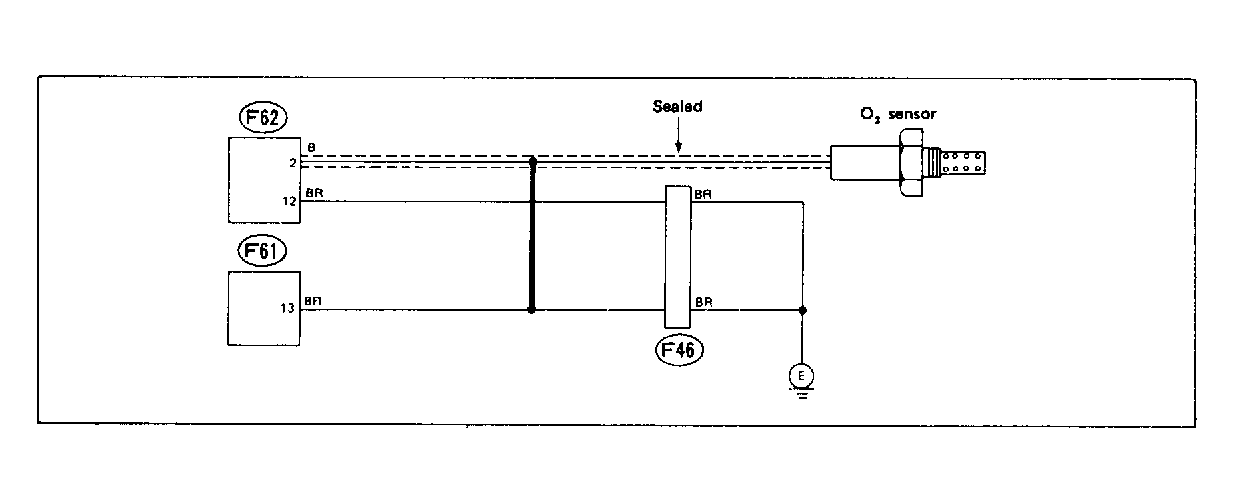

Fig 1: Wiring Schematic - Code 32: Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.

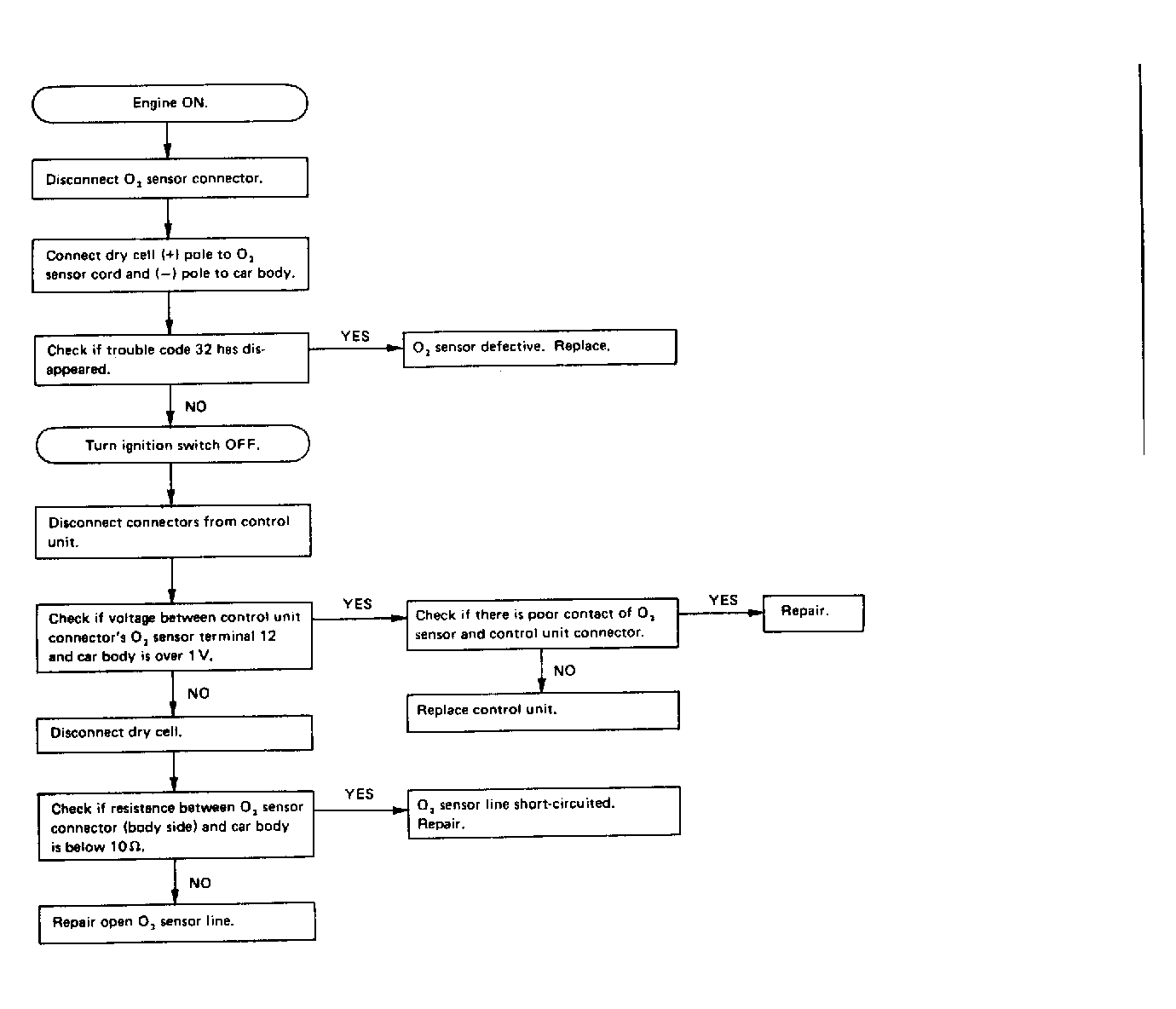

Fig 2: Flow Chart - Code 32: Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
