Fuel Pump Circuit Tests

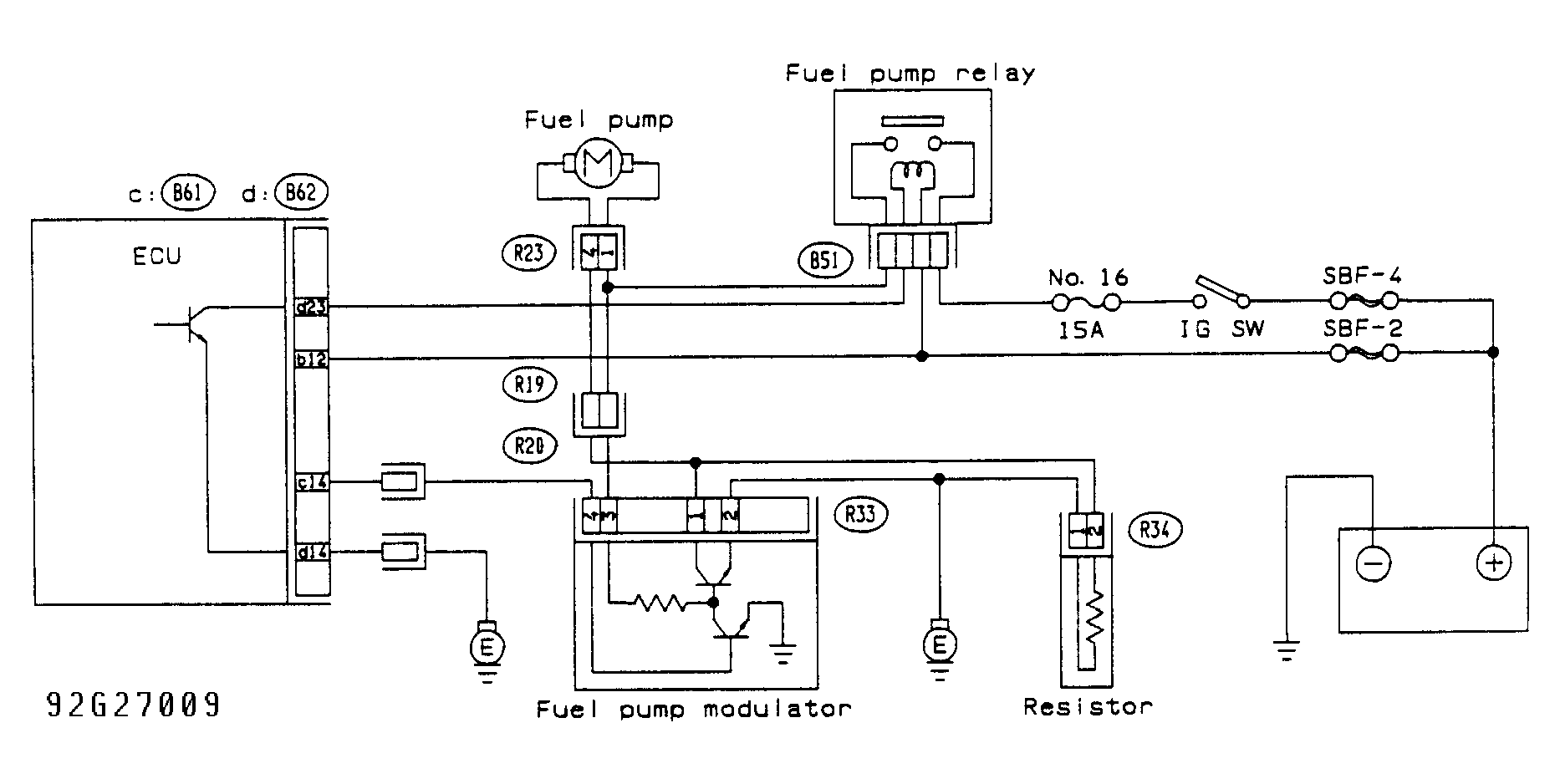

Fig 1: Fuel Pump Circuit Test, Schematic
Courtesy of SUBARU OF AMERICA, INC.

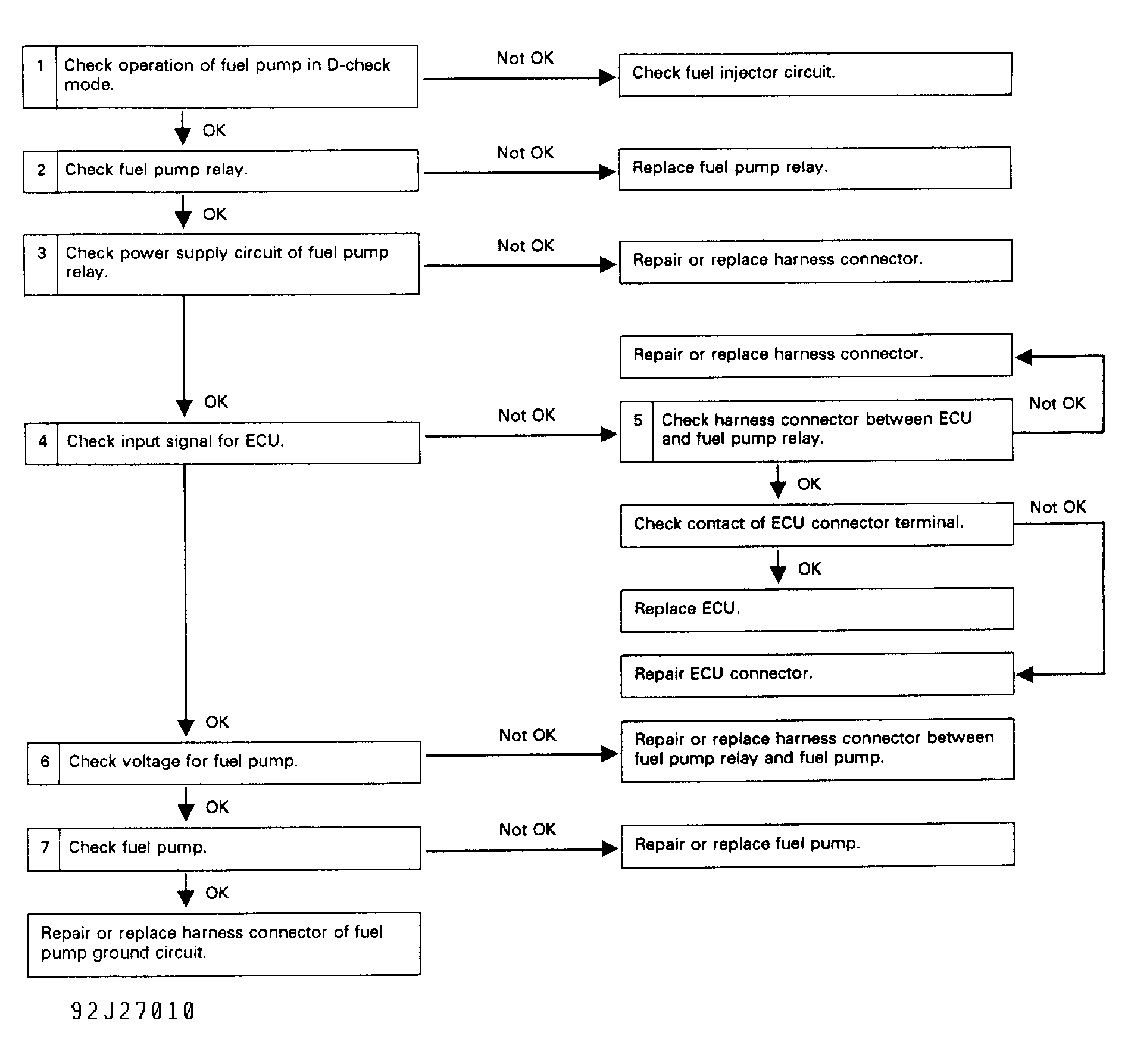

Fig 2: Fuel Pump Circuit Test, Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
