Code 31 - Throttle Position Sensor

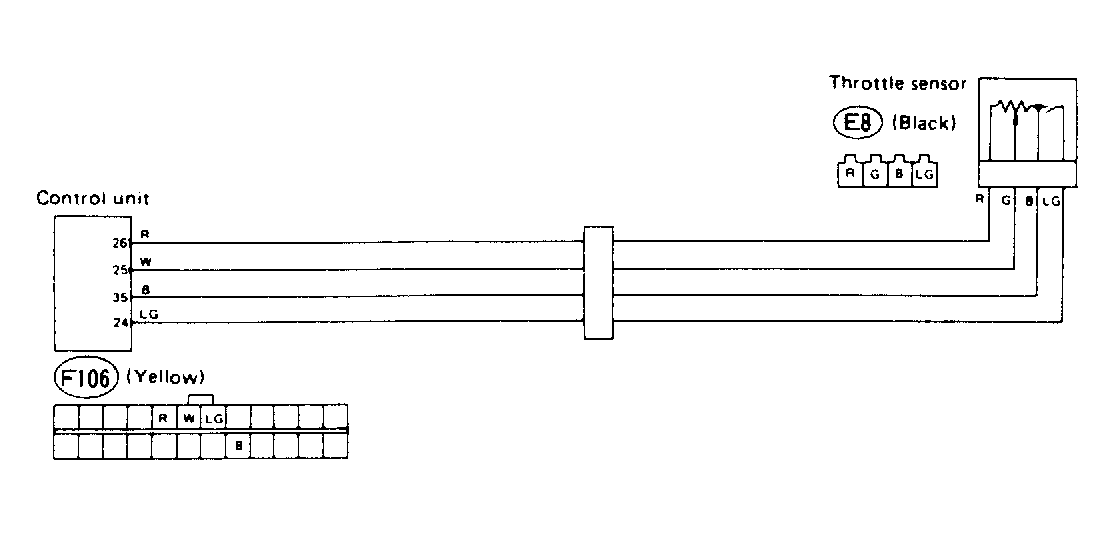

Fig 1: Code 31 - Wiring Schematic

G91H18397

Courtesy of SUBARU OF AMERICA, INC.

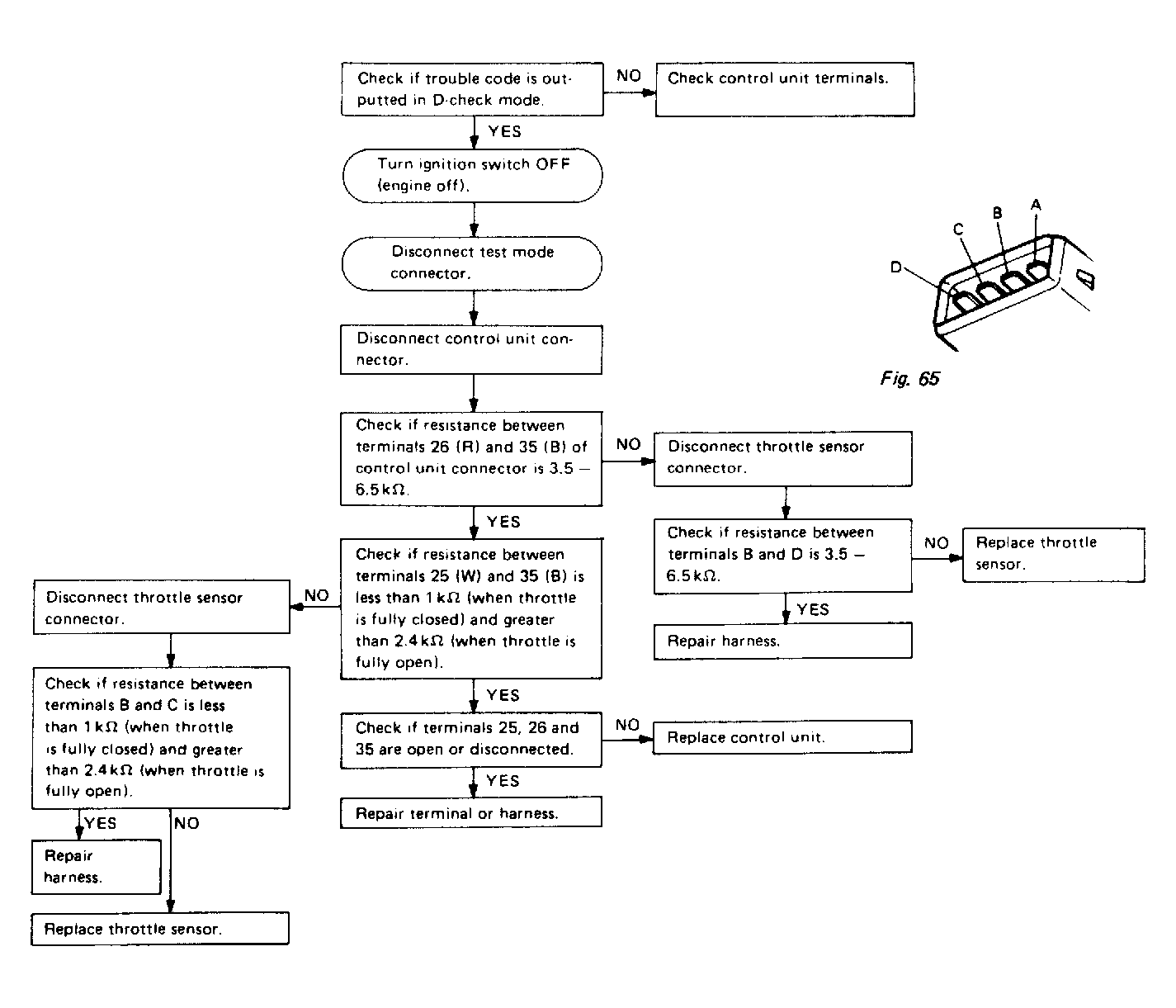

Fig 2: Code 31 - Diagnostic Flowchart

G90E21869

Courtesy of SUBARU OF AMERICA, INC.
