Power Mirror Switch

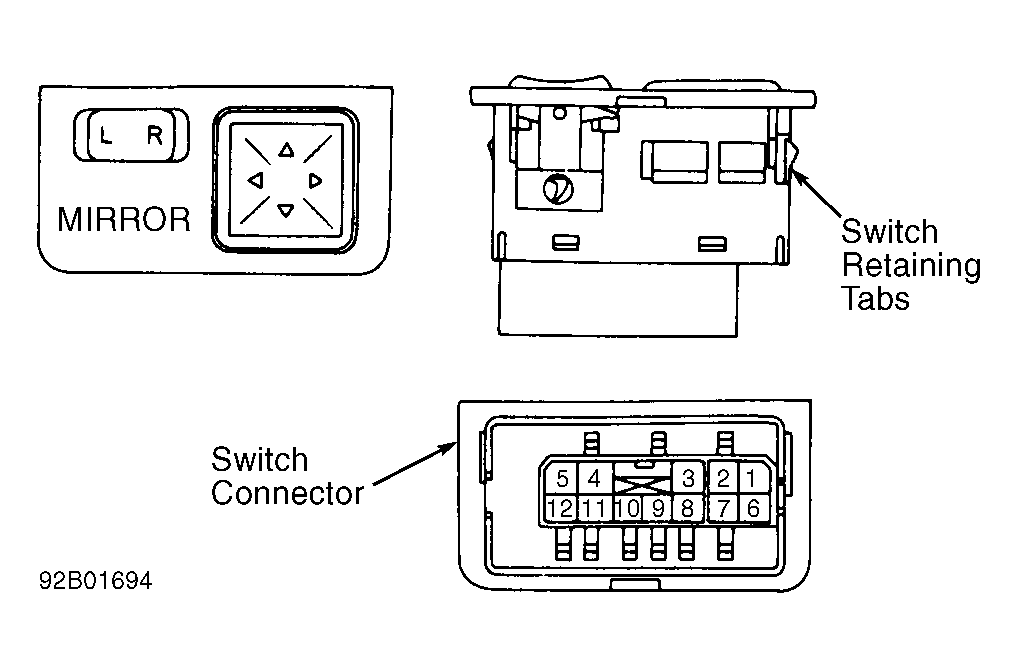

Pry mirror switch from instrument panel using a small screwdriver. Disconnect switch connector. Check continuity between specified terminals of switch connector with switch button in specified position. See POWER MIRROR SWITCH CONTINUITY TEST . SeeFig 1 . Replace switch if continuity is not as specified.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Terminal No. | |
|---|---|---|
| Left Mirror | ||
| Up | 4 & 7, 10 & 11 | |
| Down | 4 & 10, 7 & 11 | |
| Left | 2 & 4, 10 & 11 | |
| Right | 4 & 10, 2 & 11 | |
| Right Mirror | ||
| Up | 4 & 6, 10 & 11 | |
| Down | 4 & 10, 6 & 11 | |
| Left | 1 & 4, 10 & 11 | |
| Right | 4 & 10, 1 & 11 | |
