Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

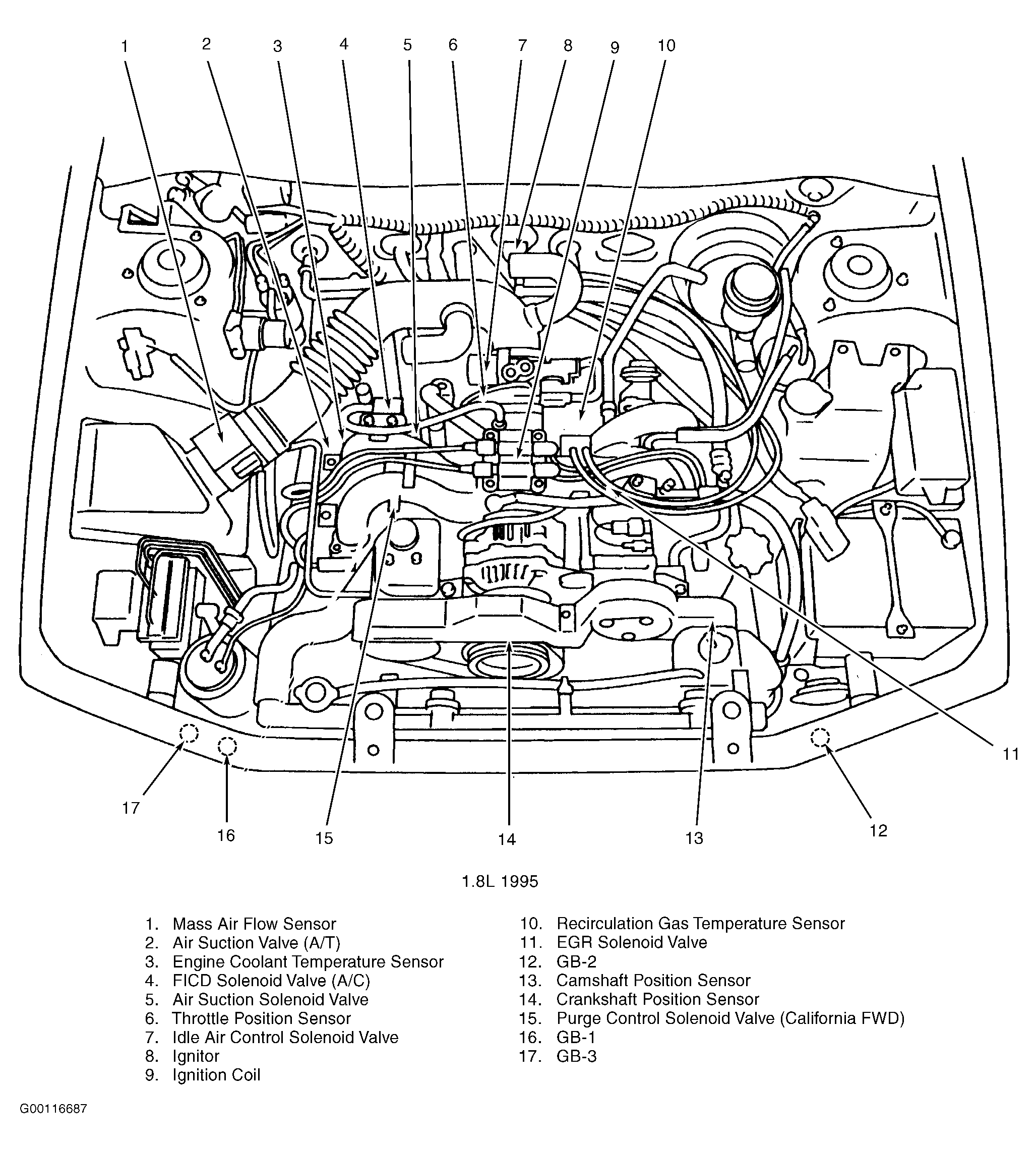

Fig 1: Engine Compartment (1.8L 1995)

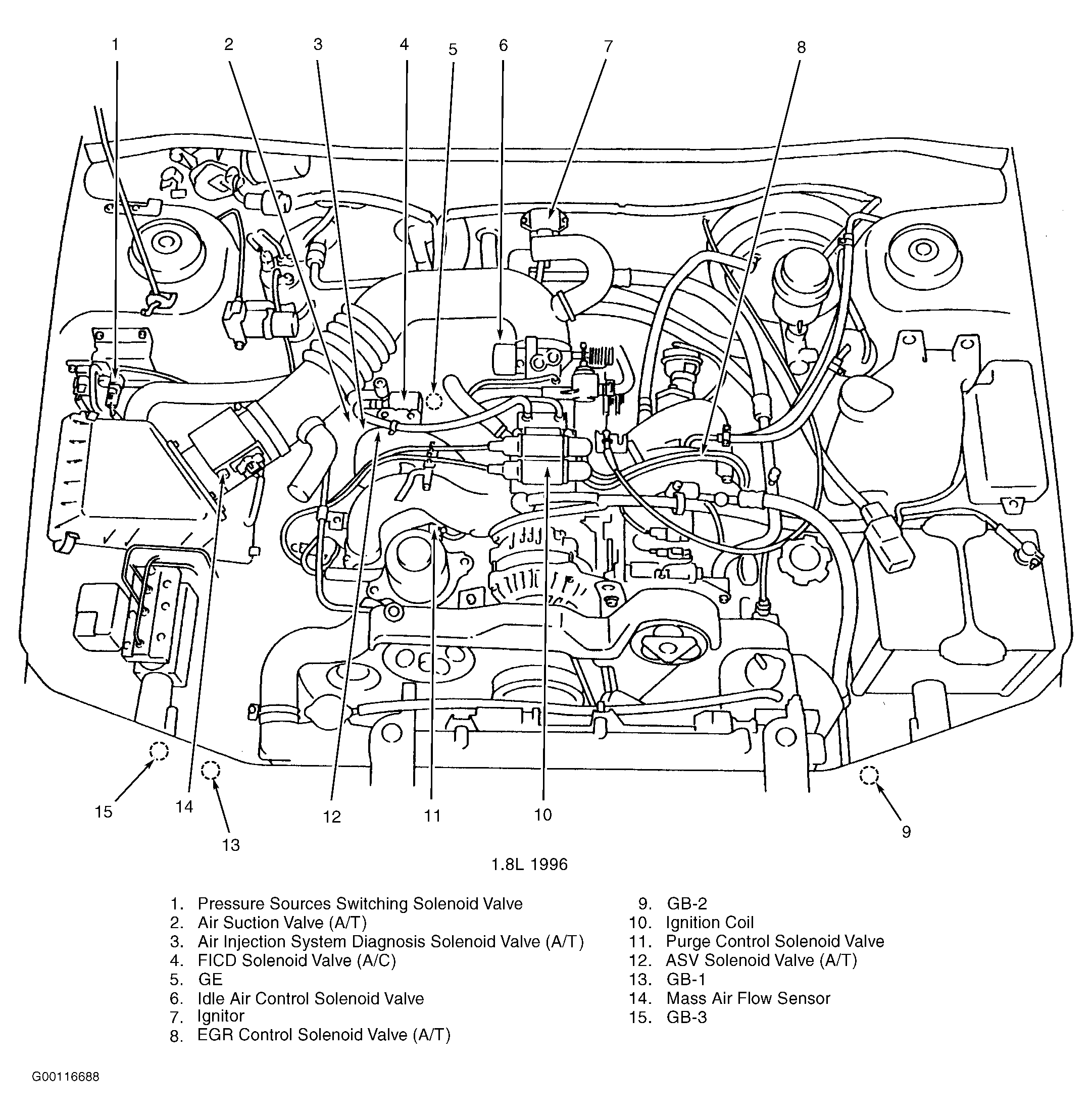

Fig 2: Engine Compartment (1.8L 1996)

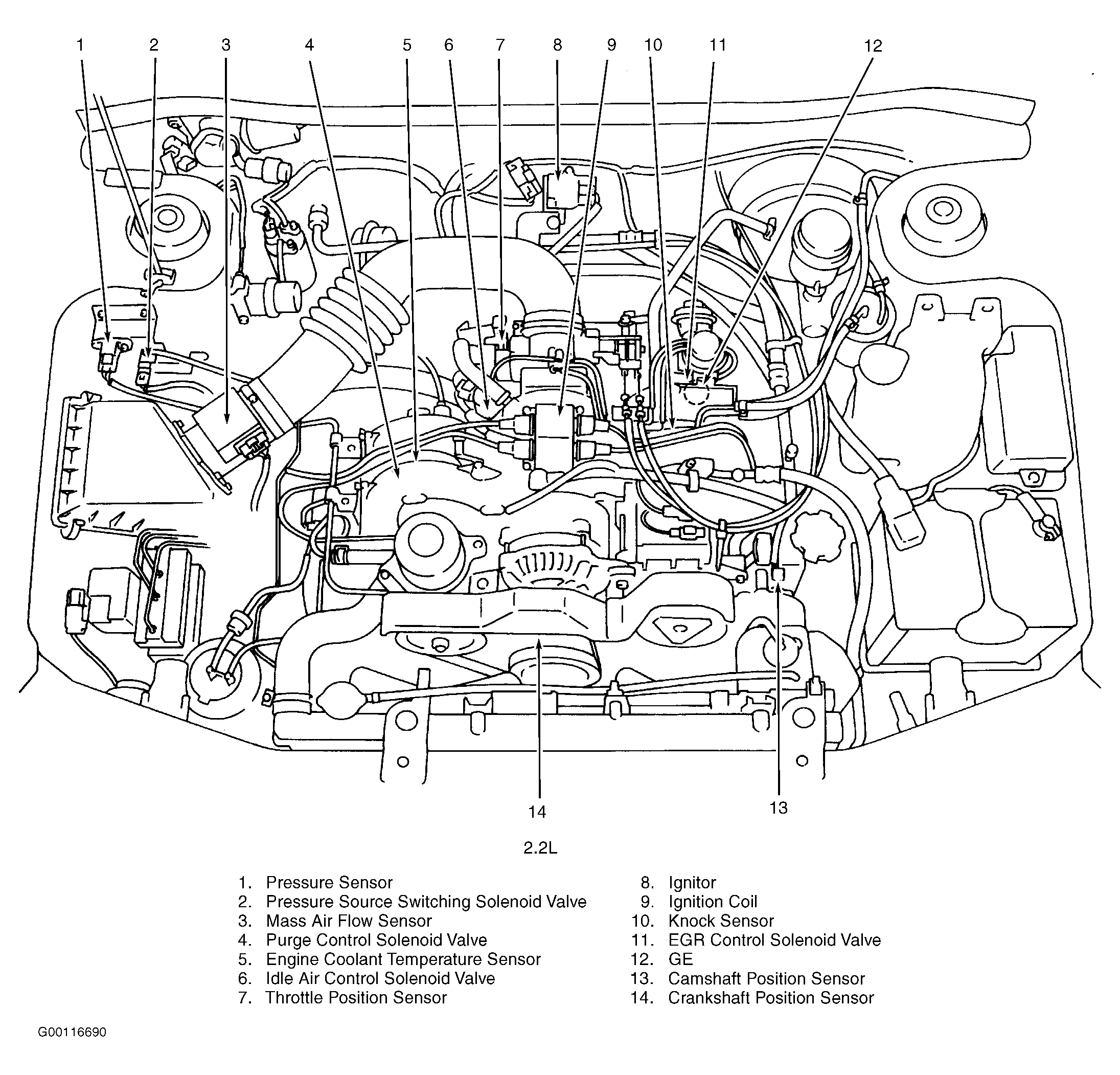

Fig 3: Engine Compartment (2.2L)

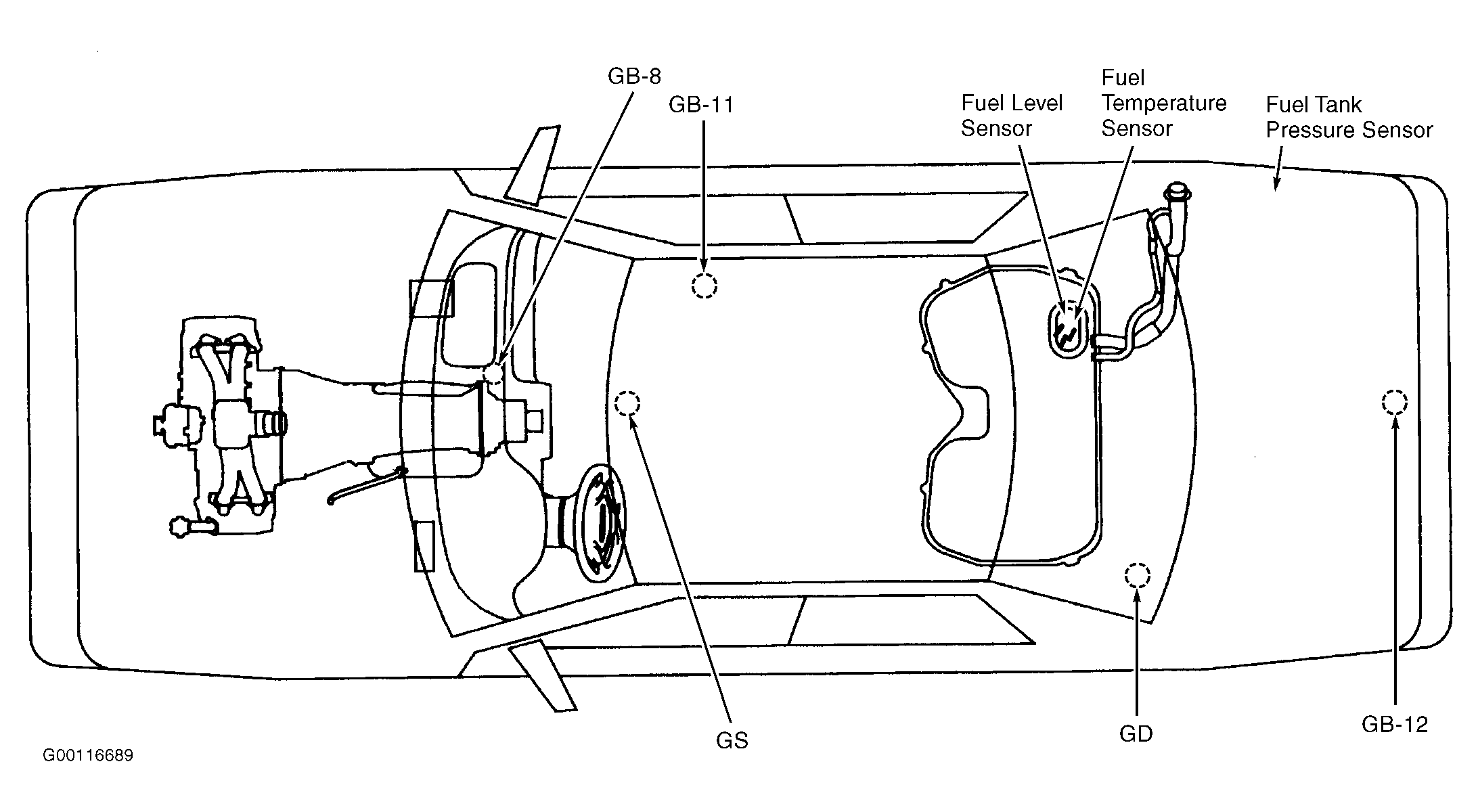

Fig 4: Vehicle Overview

Fig 5: Vehicle Overview

Fig 6: Vehicle Overview
