Control Units
CONTROL UNITS

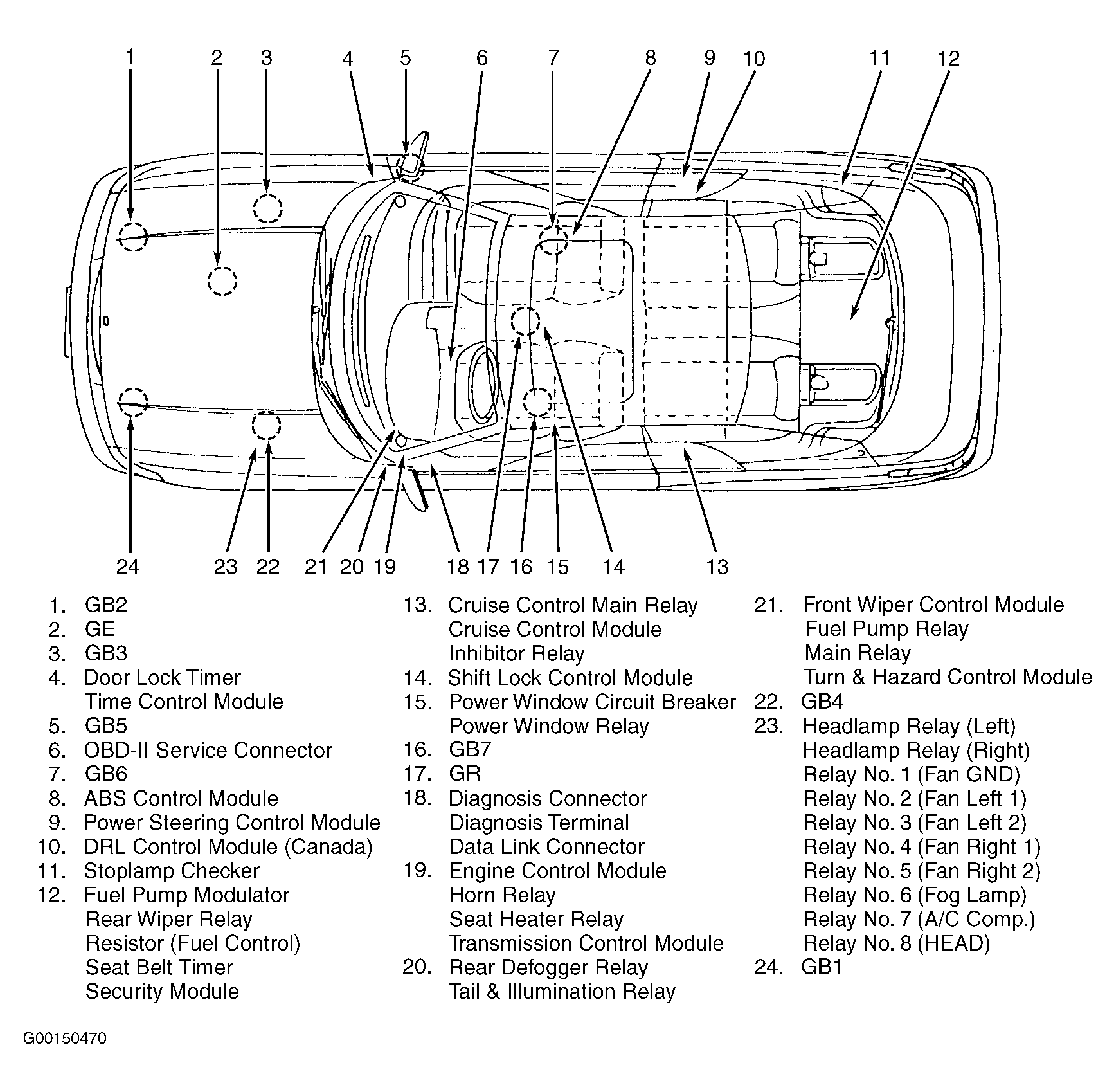

| Component | Component Location |
|---|---|
| ABS Control Module | Under right front seat. See Figure . |
| Cruise Control Module | Behind trim panel, left of rear seat. See Figure . |
| DRL Control Module (Canada) | Behind trim panel, right of rear seat. See Figure . |
| Engine Control Module | Behind dash, left of steering column. See Figure . |
| Fan Control Amplifier | Behind glove box, on A/C-heater plenum. |
| Front Wiper Control Module | Behind dash, left of steering column. See Figure . |
| Fuel Pump & Gauge Module | On right side of luggage compartment. |
| Hydraulic Control Unit (ABS) | On lower right front of engine compartment. |
| Power Steering Control Module | Behind trim panel, right of rear seat. See Figure . |
| Security Module | In luggage compartment, under center of rear package tray. See Figure . |
| Shift Lock Control Module | Below rear of center console. See Figure . |
| Stoplamp Checker | On right side of luggage compartment. See Figure . |
| Timer Control Module | Behind right side of glove box. See Figure . |
| Transmission Control Module | Behind dash, left of steering column. See Figure . |
| Turn & Hazard Control Module | Behind dash, left of steering column. See Figure . |
