Power Mirror Switch

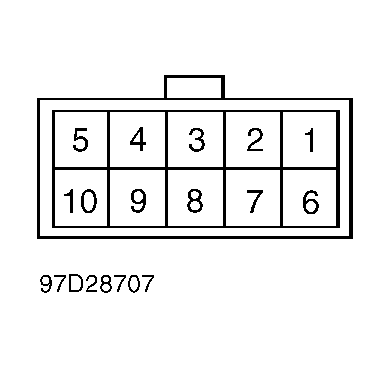

Pry mirror switch from instrument panel using a small screwdriver. Disconnect switch connector. Check continuity between specified terminals of switch connector with switch button in specified position. See POWER MIRROR SWITCH CONTINUITY TEST . SeeFig 1 , Figure or Figure . Replace switch if continuity is not as specified.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Wire Color | Terminal No. | |
|---|---|---|---|
| Left Mirror | |||
| Up | GRN/RED & LT GRN/RED | 4 & 7 | |
| Up | RED & BLK | 1 & 2 | |
| Down | GRN/RED & RED | 4 & 1 | |
| Down | BLK & LT GRN/RED | 2 & 7 | |
| Left | RED & BLK | 1 & 2 | |
| Left | GRN/RED & BLK/RED | 4 & 9 | |
| Right | RED & GRN/RED | 1 & 4 | |
| Right | BLK & BLK/RED | 2 & 9 | |
| Right Mirror | |||
| Up | RED & BLK | 1 & 2 | |
| Up | GRN/RED & BRN/RED | 4 & 6 | |
| Down | BLK & BRN/RED | 2 & 6 | |
| Down | RED & GRN/RED | 1 & 4 | |
| Left | RED & BLK | 1 & 2 | |
| Left | GRN/RED & RED/BLU | 4 & 8 | |
| Right | RED & GRN/RED | 1 & 4 | |
| Right | BLK & RED/BLU | 2 & 8 | |
